Featured TUTORIAL Your FIRST car in Assetto Corsa - Basic Guide

Discussion in 'Car Models | Physics' started by luchian, Aug 22, 2017.

  1. Kattila

    Kattila New Member

    Joined:
    Mar 23, 2018
    Messages:
    18
    Likes Received:
    2
    Thank you for this info. I need to remodel the whole thing. Stay tuned. :)

  2. Kattila

    Kattila New Member

    Joined:
    Mar 23, 2018
    Messages:
    18
    Likes Received:
    2
    Hello again,

    Now I have modeled a car ceiling in Blender 3D. It imports to the kseditor and it is a very low polygon model. However when I try to see the modeling in kseditor it seems to be nowhere. Definitely it does not seem to be in 0.0.0 point. The object which I imported to kseditor is not possible to see. It should have material and null texture. Still no observation of the object. I have included few images. Please help me in this matter.


    Attached Files:

  3. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    1,929
    Likes Received:
    702
    Double-click on the object name. Should automatically zoom-in to the object.
    Otherwise, the scale might be wrong (e.g. too small).

    Kattila likes this.
  4. Kattila

    Kattila New Member

    Joined:
    Mar 23, 2018
    Messages:
    18
    Likes Received:
    2
    Thank you for this info. The scale was indeed wrong. The size of my car was over two kilometers. Almost funny, but I do not understand how it was possible at the first hand.

  5. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    1,929
    Likes Received:
    702
    If you work with Blender, this is how :).

  6. yDNA

    yDNA New Member

    Joined:
    Apr 6, 2018
    Messages:
    2
    Likes Received:
    2
    In Blender 2.79b the FBX export panel has an additional option ("Applying Scalings") not mentioned in the first post: with value "FBX Units Scale" the model should be exported with 1:1 scale respect scene's units.


    Attached Files:

    Tarquan and luchian like this.
  7. Snagglepup

    Snagglepup New Member

    Joined:
    Apr 26, 2018
    Messages:
    3
    Likes Received:
    0
    When I import to ksEditor my model is invisible and in the materials tab there is nothing under textures and all the materials have NULL

  8. AccAkut

    AccAkut Member

    Joined:
    Sep 4, 2017
    Messages:
    59
    Likes Received:
    36
    just select some texture file, a 128x128 png with just white for example

  9. Snagglepup

    Snagglepup New Member

    Joined:
    Apr 26, 2018
    Messages:
    3
    Likes Received:
    0
    Last edited: Apr 28, 2018
  10. Stefan Elfgen

    Stefan Elfgen New Member

    Joined:
    Feb 11, 2018
    Messages:
    1
    Likes Received:
    0
    Hello together,

    I have started to work on a car mod based on the Formula K template.

    Since ca. three weeks I have the problem that it is not a fun to drive the car. I have some nasty frequencies in the steering wheel, espescially in lower and mid range revs. The lower the rev the more worst is the problem.

    I use a Simucube Mige 20NM direct drive system. To be clear what I mean, I have these nasty frequencies physically in the steering wheel, it´s nothing I can see in the graphics.

    I don´t have the problem with any other car or car mod in AC.

    Any ideas?

    Thanks & best regards,
    Stefan

  11. mantasisg

    mantasisg Active Member

    Joined:
    Nov 21, 2017
    Messages:
    167
    Likes Received:
    123
    Weird stuff man.. never heard of anything like that. It is related to revs, not to speed ? Maybe something bad with aero, or something is weird with steer assist ?

  12. AccAkut

    AccAkut Member

    Joined:
    Sep 4, 2017
    Messages:
    59
    Likes Received:
    36

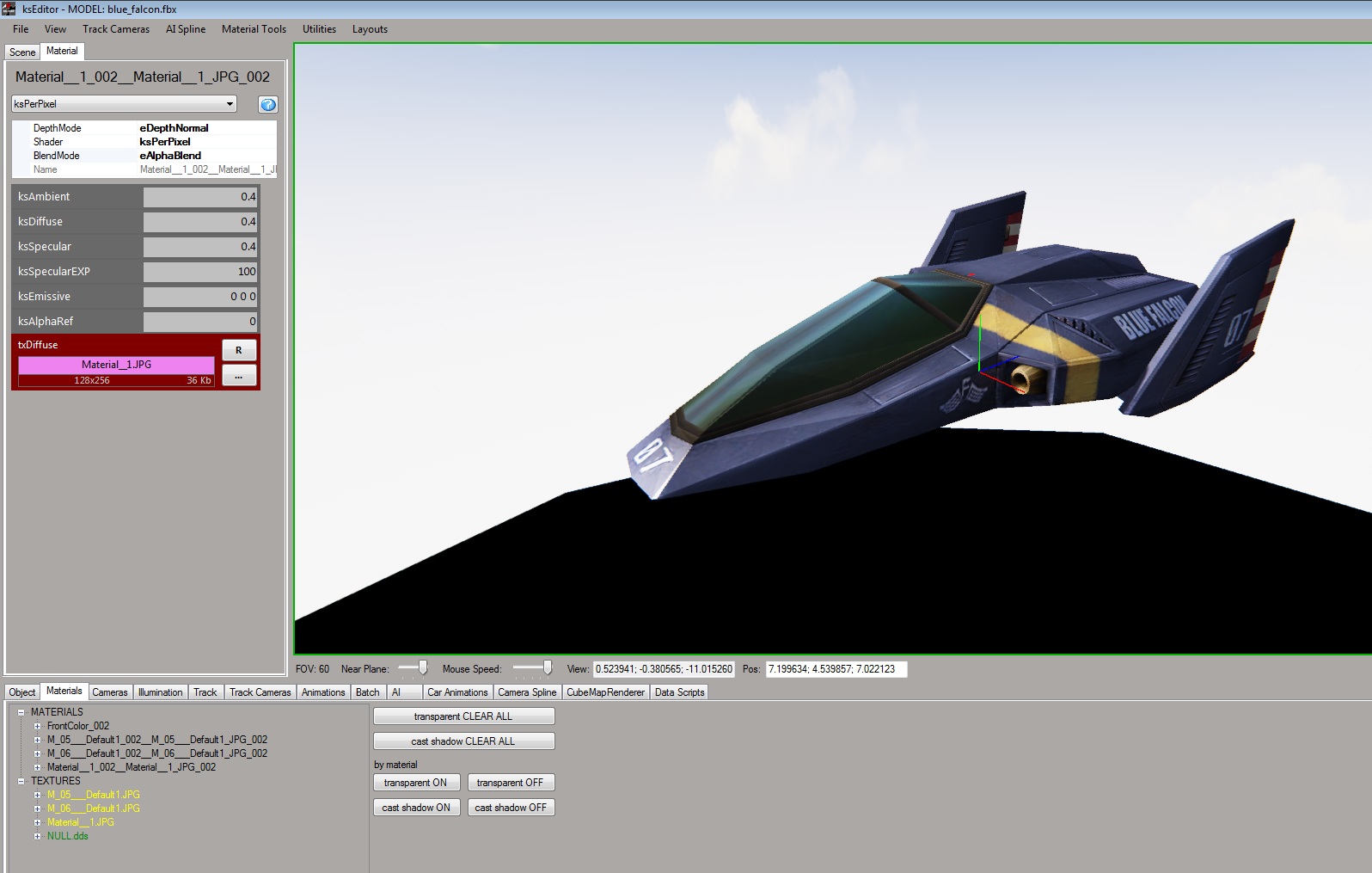

    Is that model ripped from Nintendo? Looks like it. You got the scale wrong, the shaders are working but you just need to play around with the values of them, leaving them at 0 will ofc result in just black. It doe not load into the game because the digital_instruments.ini is referencing objects the model doesn't have, just delete all those from the ini.

    Also your physical collider is way too detailed... seems like you just took the same "car" model

  13. Snagglepup

    Snagglepup New Member

    Joined:
    Apr 26, 2018
    Messages:
    3
    Likes Received:
    0
    Thanks, I'll try this out, and yeah the collider was just the same mesh with a few parts removed and then decimated, I'll probably just replace it with a cube at some point. also how do I change the scale

    Last edited: May 23, 2018
  14. Leonardo Ratafia

    Leonardo Ratafia Member

    Joined:
    Aug 31, 2015
    Messages:
    42
    Likes Received:
    17
  15. garyjpaterson

    garyjpaterson Member

    Joined:
    Jun 28, 2017
    Messages:
    78
    Likes Received:
    74
    For me that site is a good baseline, though I would take it with a pinch of salt. AFAIK they just generate those curves based on whatever other data they may have (power@rpm, torque@rpm), then just extrapolate something that kinda fits. Generally they will be too smooth and 'perfect' compared to real dyno data.

  16. Leonardo Ratafia

    Leonardo Ratafia Member

    Joined:
    Aug 31, 2015
    Messages:
    42
    Likes Received:
    17
    That's what I saw when checking some B16a stock dyno sheets.
    Is it better to include all the range in 100rpm increments? I guess the more detail the better?

    Sent from my Moto G (4) using Tapatalk

  17. ltcars

    ltcars New Member

    Joined:
    Mar 6, 2017
    Messages:
    11
    Likes Received:
    3
    They say that these curves are calculated, they don't include turbo lag and so on.
    Compare this curve from Automobile: http://www.automobile-catalog.com/curve/1987/57470/porsche_959.html
    To the actual one from the cars manual: http://www.959registry.org/Owners_Manual/Page113.JPG
