Boolean can be messy... another way is using a Max compound tool called shape merge...



Hello all,

I'd like to improve my texturework so I'm trying to get the multilayer shaders to work but every time I load my image files (either mask or diffuses) it seems to come up as nothing at all in KsEditor and the material just shows up black.

Below is a pic of the mask image file coming up as having no pixels and no kb...



Anyone know what I'm doing wrong? Thanks in advance



seems to have started working now...



Hi guys, probably it was already asked but i can't find it so:

There's a way to make (on a city track like monaco) the road outside the "white" line as out track (like it was grass and the time get cancelled) but keeping it as ROAD?

I don't know if i explained what i want to do in a right way or not hahahaha



The road outside that line has to be its own object, ie: 1OUTSIDE

Then you can add that object's surface properties to your track's surface.ini like this:

[SURFACE_1]
KEY=OUTSIDE
FRICTION=0.95
DAMPING=0
WAV=
WAV_PITCH=
FF_EFFECT=NULL
DIRT_ADDITIVE=0
BLACK_FLAG_TIME=0
IS_VALID_TRACK=0
SIN_HEIGHT=
SIN_LENGTH=
IS_PITLANE=0
VIBRATION_GAIN=0
VIBRATION_LENGTH=0

then make sure the IS_VALID_TRACK is set to "0"



Thanks for the jelp Johnr777



I created 3 type of road

1ROADxxx for the main asphalt which is the "race track"
2ROADxxx and 3ROADxxx for the outside part of the racetrack which the lap should be invalidated.

In the surface.ini i put this

[SURFACE_0]
KEY=KERB
FRICTION=0.96
DAMPING=0
WAV=kerb.wav
WAV_PITCH=1.3
FF_EFFECT=1
DIRT_ADDITIVE=0
BLACK_FLAG_TIME=0
IS_VALID_TRACK=1
SIN_HEIGHT=0
SIN_LENGTH=0
IS_PITLANE=0
VIBRATION_GAIN=0.4
VIBRATION_LENGTH=1.5

[SURFACE_1]
KEY=1ROAD
FRICTION=0.98
DAMPING=0
WAV=
WAV_PITCH=0
FF_EFFECT=NULL
DIRT_ADDITIVE=0
BLACK_FLAG_TIME=0
IS_VALID_TRACK=1
SIN_HEIGHT=0
SIN_LENGTH=0
IS_PITLANE=0
VIBRATION_GAIN=0
VIBRATION_LENGTH=0

[SURFACE_2]
KEY=2ROAD
FRICTION=0.8
DAMPING=0.1
WAV=
WAV_PITCH=0
FF_EFFECT=0
DIRT_ADDITIVE=1
IS_VALID_TRACK=0
BLACK_FLAG_TIME=0
SIN_HEIGHT=0.04
SIN_LENGTH=0.5
IS_PITLANE=0
VIBRATION_GAIN=0.2
VIBRATION_LENGTH=0.3

[SURFACE_3]
KEY=3ROAD
FRICTION=0.8
DAMPING=0.1
WAV=
WAV_PITCH=0
FF_EFFECT=0
DIRT_ADDITIVE=1
IS_VALID_TRACK=0
BLACK_FLAG_TIME=0
SIN_HEIGHT=0.04
SIN_LENGTH=0.5
IS_PITLANE=0
VIBRATION_GAIN=0.2
VIBRATION_LENGTH=0.3

[SURFACE_4]
KEY=PIT
FRICTION=0.95
DAMPING=0
WAV=
WAV_PITCH=0
FF_EFFECT=NULL
DIRT_ADDITIVE=0
IS_VALID_TRACK=1
BLACK_FLAG_TIME=0
SIN_HEIGHT=0
SIN_LENGTH=0
IS_PITLANE=1
VIBRATION_GAIN=0
VIBRATION_LENGTH=0

But once in game it seems not work right, im doing wrong something? Thanks in advance



You can’t use 1ROAD in the surface.ini file, the “1” number is just to be able to use multiple files. The surface file should say “ROAD” only...

But don’t use ROAD for the outside, use something like 1OUT.001 and 1OUT.002 then in the surface.ini make one entry called OUT.

That way there’s no confusion and the game will not do weird things



But the OUTSIDE zone is not delimited by walls, is a free zone, if i don't call it ROAD the car will fall into a blackhole or not?



Not if defined in surface.ini



1ROAD117 should be racing line, the 3ROAD103 should invalidate the lap time



there's a specific way to define it or i easily call the 3ROAD103 as OUTSIDE1 and create the surface entry like this one

[SURFACE_5]
KEY=OUTSIDE
FRICTION=0.95
DAMPING=0
WAV=
WAV_PITCH=0
FF_EFFECT=NULL
DIRT_ADDITIVE=0
IS_VALID_TRACK=1
BLACK_FLAG_TIME=0
SIN_HEIGHT=0
SIN_LENGTH=0
IS_PITLANE=1
VIBRATION_GAIN=0
VIBRATION_LENGTH=0


?



That’s right, should work.



Thank you so much for your help, i'll try it immediately



Cheers, I've looked but can't find a similar option in maya apart from using another road to cut a boolean hole I could just leave it as the elevations do feel on point.



So another weird Issue how come the car is spawning in the middle of the track? I've made sure all my pit dummies are in the pit area and there's no dummies in the middle of the track

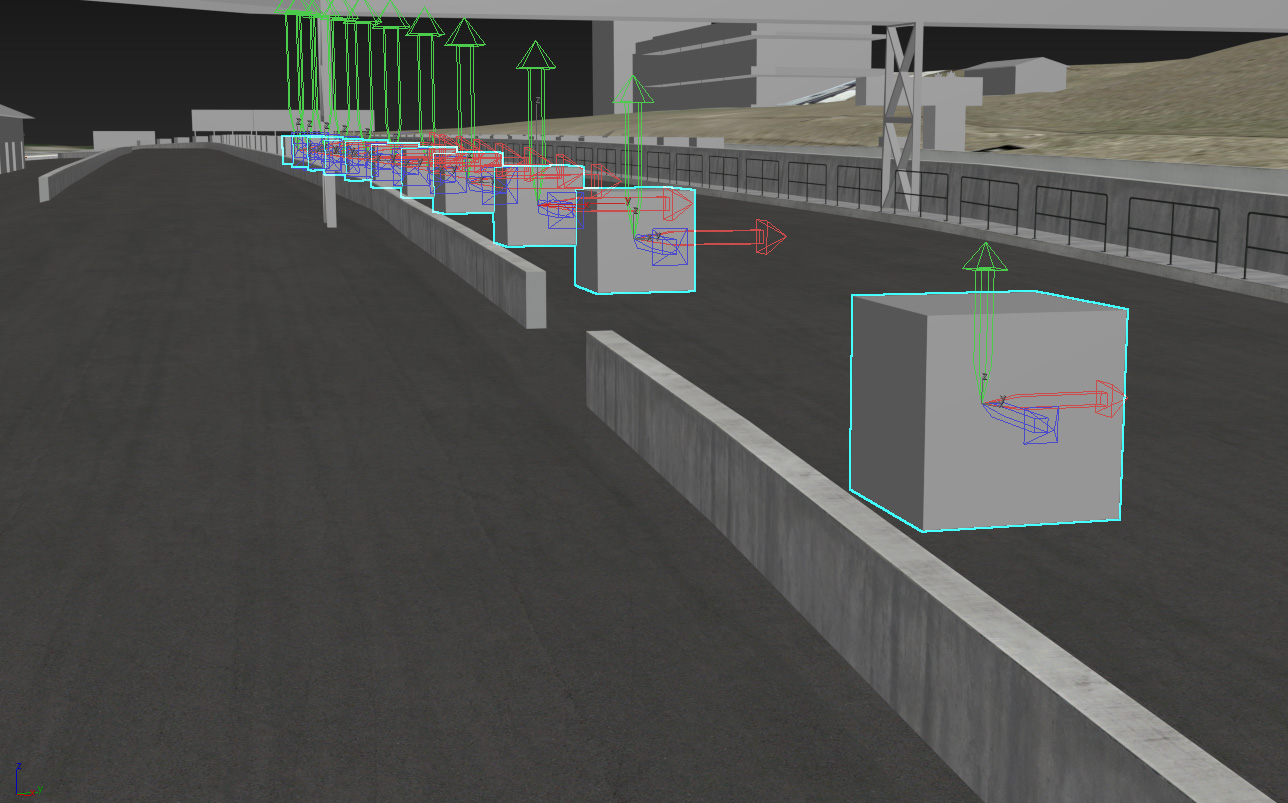

Check the pivot point of the dummy object... looks like its not centered correctly



In maya the pivot is default y up, it could be the transforms though I'll try freezing all transforms on the dummies and see if that fixes it.



Yeah I don’t work with Maya... but the end result should be like this no matter what software is used, each object should have a pivot point in its center.



I cannot get the kseditor to work with my textures. They're all 512x512 png (converted to dds aswell), and they work fine in 3dsimed and in rhino (where they've been modeled into). I really have no clue about what I'm doing wrong, anybody got a similar problem ever?
Sketchup cube buildings works as they should with terrible textures, while these one that should be done properly aren't working...
Here are 2 screenshots

on Rhino


on kseditor
