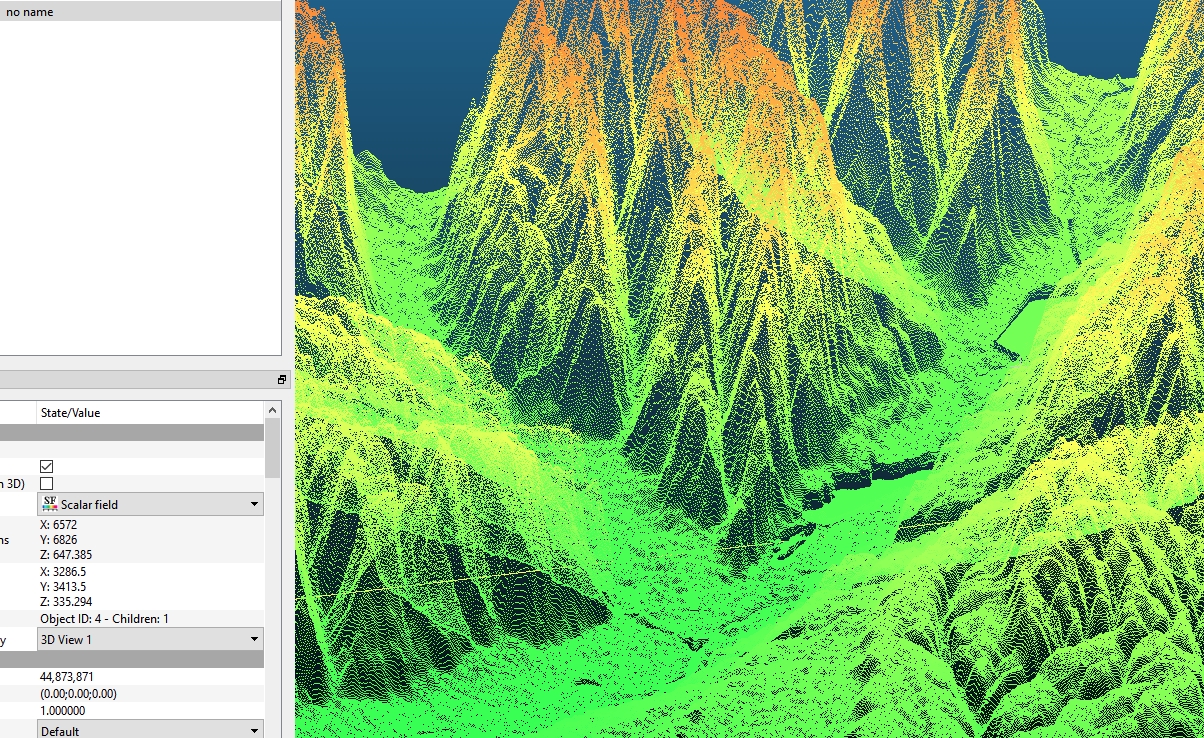

    Having cropped just a small bit out of it (which I was able to open in CC) and having turned one of the fields in Z coordinate, I did get a "3d profile". But this is where I would need some help.. it might be something completely random :D. E.g. below: 2019-10-08_222814.jpg

    LE: this is NOT for the circuit area. It's just a random crop somewhere in mountain area.

  2. luchian

    luchian Administrator Staff Member Pilot RLR

    Joined:
    Jun 3, 2014
    Messages:
    2,536
    Likes Received:
    1,117

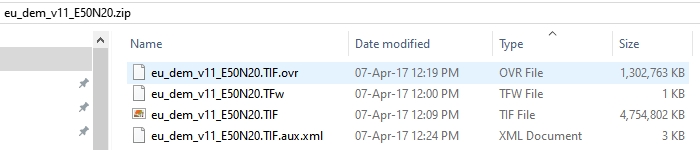

    These are the 4 files contained in the archive I downloaded for "EU-DEM" on copernicus.eu

  3. Nericksenna

    Nericksenna Active Member

    Joined:
    Dec 5, 2018
    Messages:
    235
    Likes Received:
    199
    What is it you need help with?

  4. Johnr777

    Johnr777 Moderator

    Joined:
    Jul 26, 2017
    Messages:
    390
    Likes Received:
    300
    Probably with the Cloud Compare - Blender route.

    Luchian, you need to locate the track in that capture, then select the region you want to work with, and crop it out. If lucky, that point cloud might have an intensity map, which will work like a satellite map.

    I believe you scroll down to scalar fields properties, then change color ramp from blue>red to grey. Then Edit - Scalar Fields - Convert to RGB if im not mistaken. Then make a mesh of it and export.

    Havent done this in a while, but it isnt overly complicated. You might also want to reduce the density of that point cloud, since its for distant scenery... it my also alleviate the stress your PC is under when dealing with all that data :lol:

    luchian likes this.
  5. Nericksenna

    Nericksenna Active Member

    Joined:
    Dec 5, 2018
    Messages:
    235
    Likes Received:
    199
    I can pitch in, I think I got the hand with Cloud Compare, but it mustn't be 4GB in size that's for damn sure. If you get the correct area, I can work with it and make a nice proper mesh if you like. Just tell me how many polys you're aiming for.

    If you get the correct area, I can make an fbx and nicely quaded mesh

  6. luchian

    luchian Administrator Staff Member Pilot RLR

    Joined:
    Jun 3, 2014
    Messages:
    2,536
    Likes Received:
    1,117
    Yes, one of the questions was crop it where ? :nerd: In e.g. Photoshop ? (which I did, but was wondering if I lose any data).

    With the scalar Fields I converted one dimension to Z and got the profile I posted above. I will try your suggestion also and see if I notice any difference.

    ***
    And the second question was: HOW do you identify an area in the cloud of points of the entire country ? Eyeballing ? Or is there some option for labels overlay ? (or maybe coordinates/maps overlay ?)

  7. luchian

    luchian Administrator Staff Member Pilot RLR

    Joined:
    Jun 3, 2014
    Messages:
    2,536
    Likes Received:
    1,117
    Yep, how ? :lol:

  8. Nericksenna

    Nericksenna Active Member

    Joined:
    Dec 5, 2018
    Messages:
    235
    Likes Received:
    199
    Send me a link to the thing you downloaded, I'm awaiting approval of my account on the website you got it from... I'll try to take a peek at it asap

  9. luchian

    luchian Administrator Staff Member Pilot RLR

    Joined:
    Jun 3, 2014
    Messages:
    2,536
    Likes Received:
    1,117
    I'll have to upload it somewhere. You can only DL with a valid account.
    A bit later tho, I am still at work :). Thank you for your proposal.

  10. Nericksenna

    Nericksenna Active Member

    Joined:
    Dec 5, 2018
    Messages:
    235
    Likes Received:
    199
    I can't promise anything, by I sure can try..

  11. Johnr777

    Johnr777 Moderator

    Joined:
    Jul 26, 2017
    Messages:
    390
    Likes Received:
    300
    Photoshop? Yikes! Definitely a bit different than I'm used to. Usually just cloud compare, :lol:

    From what you've shown above, dont think you are losing any detail, which is good. But yeah, a lot of times you need to look for the needle in the haystack :lol:, google maps on one window, point cloud on the other, and try to look for landmarks :banghead:

    The US data is a lot easier, as you just grab the tiles you need, not the entire country! :ROFLMAO:

    Nericksenna likes this.
  12. luchian

    luchian Administrator Staff Member Pilot RLR

    Joined:
    Jun 3, 2014
    Messages:
    2,536
    Likes Received:
    1,117
    :lol: Of course I get what your're saying but.. it has to be cropped before Cloud Compare, because Cloud Comapre crashes when trying to load the entire thing. Anyhoo.. needle in the haystack it is then. While blindfolded.

  13. Nericksenna

    Nericksenna Active Member

    Joined:
    Dec 5, 2018
    Messages:
    235
    Likes Received:
    199
    Do you have 3dsmax ?
    You might just be able to load it in without the lag... but as a point cloud system

    luchian likes this.
  14. luchian

    luchian Administrator Staff Member Pilot RLR

    Joined:
    Jun 3, 2014
    Messages:
    2,536
    Likes Received:
    1,117
    I think I still have a license until 2020, so might give it a try. Did not thought I can load a TIFF directly in max, tbh.

  15. Johnr777

    Johnr777 Moderator

    Joined:
    Jul 26, 2017
    Messages:
    390
    Likes Received:
    300
    Might not work though, max is picky with formats. Usually it has to go through something called Autodesk Recap first, then to Max.

    I think you are in the right track with photoshop - cloudcompare.
