Featured TUTORIAL Build your FIRST track - BASIC GUIDE

Discussion in 'Tracks' started by luchian, Jun 14, 2014.

Page 12 of 97
  1. slidingwithstyle

    slidingwithstyle New Member

    Joined:
    May 25, 2015
    Messages:
    6
    Likes Received:
    8
    Location:
    Germany
    I created a little more, if everything keeps going that well, I'll do the whole city :p

    May I start a thread for this, even though I am not sure if I can finish it? :)

    slidingwithstyle, May 26, 2015
    #221
    luchian likes this.
  2. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    3,007
    Likes Received:
    1,492
    It's actually recommended .
    Keep it up !

    Sent from my GT-I9100 using Tapatalk

    luchian, May 26, 2015
    #222
    slidingwithstyle likes this.
  3. Fat-Alfie

    Fat-Alfie New Member

    Joined:
    Jun 2, 2015
    Messages:
    23
    Likes Received:
    14
    Can anyone help with me converting Aviano from NKP to AC? If I export the .nk5 from 3DSimEd3 the track work ok in-game (with shader errors), but if I export an .fbx and then export that from ksEditor (having set the shaders correctly) the track fails to load. I have replaced any .tga files with .dds so I'm pretty sure it's not that.

    Also, can anyone explain the object hierarcy and pivot system to me? In ksEditor, all the original NKP objects have an origin set at 0, 0, 0, but any objects I have added as primatives within 3DSimEd3 (all the AC objects PIT / START / TIME / HOTLAP etc) have a huge offset.

    I have scratch-made tracks for other sims so I know I have the capability (and patience) to do justice to Aviano, but I'm really struggling with the workflow for AC. If anyone is able to help me I would really appreciate their time. I can upload all my files too, if that will help. Thank you!


    Attached Files:

    Fat-Alfie, Jun 6, 2015
    #223
  4. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    3,007
    Likes Received:
    1,492
    Hi Alfie, welcome.

    Let's take it 1 by 1:

    First what happens when you say the track does not load ?
    Also can you post the complete log ? Your attachment is too short, and probably relates to SDK log not AC log.

    About origins: usually within 3d software, most of your objects will have origins at their own centers (this is especially important for trees in order to make'em look good using kstree shader). What is your issue with this ? The objects are not where they are supposed to be ? Or it's just that the coordinates "don't make sense" ?

    luchian, Jun 6, 2015
    #224
  5. Fat-Alfie

    Fat-Alfie New Member

    Joined:
    Jun 2, 2015
    Messages:
    23
    Likes Received:
    14
    First, thanks for offering to help - I really appreiciate it.

    If I try and load the .kn5 created by ksEditor, it shows up fine in the launcher, I click START, I get the loading screen with "Loading Aviato" along the bottom, then after a few seconds the screen goes black and I get returned to the launcher.

    Can I ask where I can find the 'complete log' that you mentioned? What I uploaded before was my entire log file from:

    C:\Program Files\Steam\SteamApps\common\assettocorsa\crash_logs - and was only 16 lines long.

    Is it this file, from:

    C:\Users\David\Documents\Assetto Corsa\logs ?

    I'm sorry if I'm making basic errors, but I love to learn about making content for new games, and get frustrated when I hit problems like this. Thanks again for your time :)


    Attached Files:

    • log.txt
      File size:
      223.6 KB
      Views:
      479
    Last edited: Jun 6, 2015
    Fat-Alfie, Jun 6, 2015
    #225
    luchian likes this.
  6. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    3,007
    Likes Received:
    1,492
    Yes, this is the correct log :). Had a look at it:
    First there are some objects that are named as they should act like surfaces:
    Since they are shadows I suppose you don't need them to be surfaces, so you should remove number in front.
    If you would like these objects to be surfaces, you should create keys for them, in your surfaces.ini file. One example is the pits area. In your track, the surfaces are called PITS, and in your surfaces.ini the key seem to be called PITS-IMA.
    You'll probably need to take care of these at some point in order to assure wanted behaviour. However, don't think this is the issue, track should still be loading..

    It must be linked to spawn points I believe..

    In what mode are you starting your track ?
    How many slots did you set in ui_track.json ?
    How many AC_PIT, AC_START, ... objects do you have ?
    Can you post a screen of their hierarchy pls ?

    luchian, Jun 6, 2015
    #226
    Fat-Alfie likes this.
  7. Fat-Alfie

    Fat-Alfie New Member

    Joined:
    Jun 2, 2015
    Messages:
    23
    Likes Received:
    14
    Thanks for your prompt reply. Can I first add, this is a direct conversion from NKP to AC. I (foolishly) believed it would be a simple job of importing the .nko and exporting a .kn5 :confused:

    The errors you have noted from the log relate to the NKP track format, I guess, and the fact that I didn't understand fully about object naming. I will open up the track in 3DsimEd3 again and try to resolve these errors.

    I have been starting in practice mode. I have 2 pit boxes in the .json file and 2 AC_PIT objects in the track, along with 2 AC_START objects, AC_TIME 0, 1 and 2 (down the main straight for ease of adding them), as well as a AC_HOTLAP_START_0 object. Hierarchy is attached.


    Last edited: Jun 6, 2015
    Fat-Alfie, Jun 6, 2015
    #227
  8. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    3,007
    Likes Received:
    1,492
    Where ? :D

    About nK to AC conversion - maybe it is simple don't know honestly, I didn't tried it. It only helps if you know a bit the AC environment before. In any case, don't be afraid, is not that complicated either :). We'll hunt the error and then you'll be free to play with to learn more.

    luchian, Jun 6, 2015
    #228
  9. Fat-Alfie

    Fat-Alfie New Member

    Joined:
    Jun 2, 2015
    Messages:
    23
    Likes Received:
    14

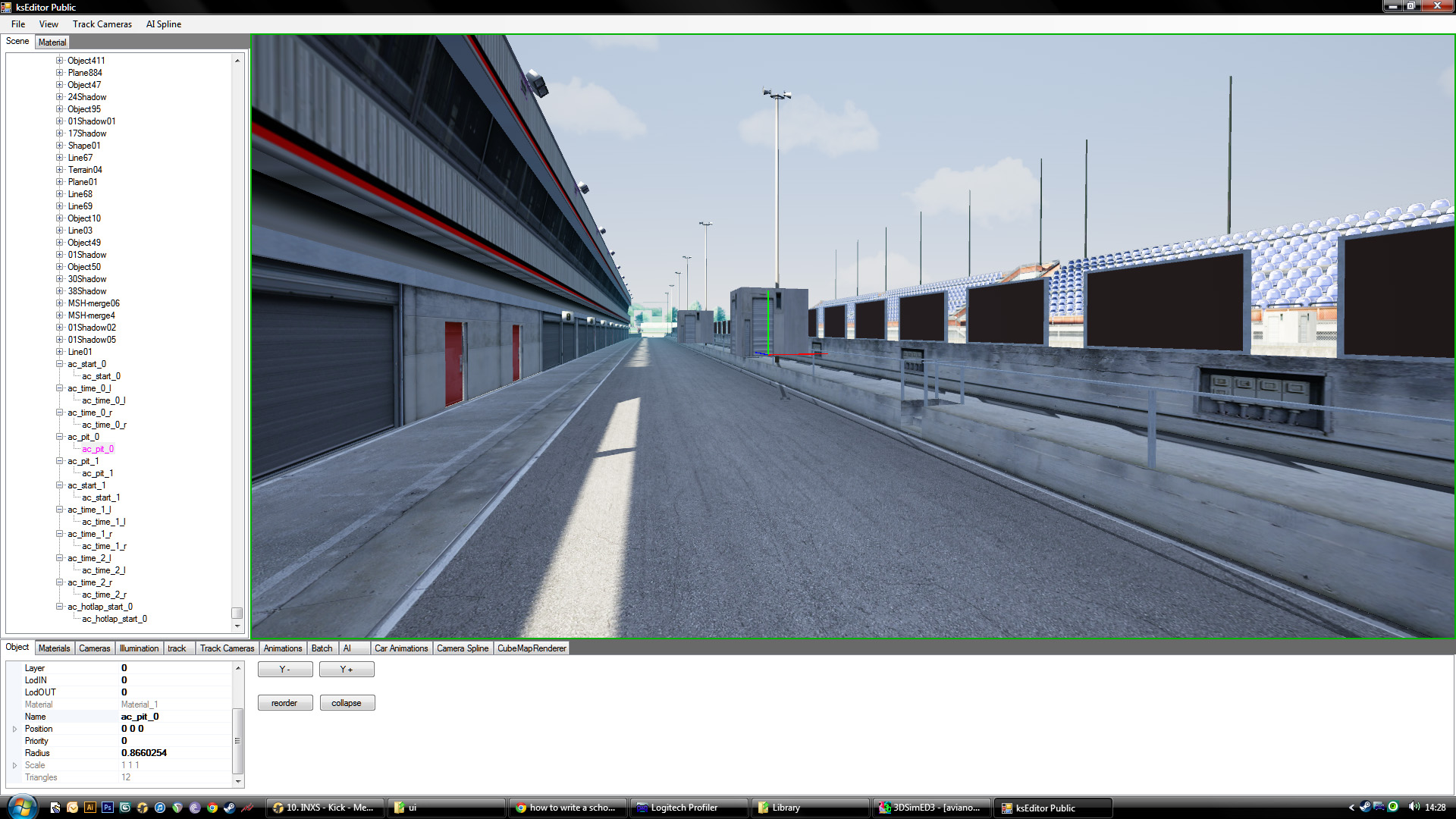

    Sorry about that - I thought I had attached that .jpg o_O

    There does seem lots to learn, even down to the language and terminology. I would be much happier doing the 3D editing in 3ds max, but that seemed to create more shader problems than made it worthwhile, so I tried to stick to using just 3DSimEd3 and KsEditor.

    I feel slightly dispirited that an experienced member of the AC community is already working on converting Aviano, but then, I did only intend to convert it in order to learn how to make tracks from scratch.

    Thanks again for your time and advice - I will keep you posted regarding my progress.

    Fat-Alfie, Jun 6, 2015
    #229
  10. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    3,007
    Likes Received:
    1,492
    So I take it, you will leave it be for the moment ? No problem, feel free to ask again if you'll pick it up.
    Otherwise, looking at your screenshot, seems the spawn points are written in small. They need to be in CAPS (iirc) ;).

    e.g.
    ac_pit_0 << NOK
    AC_PIT_0 << OK

    luchian, Jun 6, 2015
    #230
  11. Fat-Alfie

    Fat-Alfie New Member

    Joined:
    Jun 2, 2015
    Messages:
    23
    Likes Received:
    14
    No, I will continue, because it is fun! And I love Aviano! :)

    I did notice the AC_PIT / ac_pit issue. The problem is that 3DSimEd3 does not export object names in CAPITALS, and as I could only get the track to work by exporting from 3DSimEd3 (and not KsEditor) I was stuck with lower case. Even if I rename the objects in 3DSimEd3, they still get converted to lower case :banghead:

    I am currently re-editing the track in 3DSimEd3 to remove the number prefixes from the non-physical objects to see if that fixes some of the problems.

    Fat-Alfie, Jun 6, 2015
    #231
  12. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    3,007
    Likes Received:
    1,492
    Honestly, removing the numbers don't think will completely solve the problem (it will help though) :p. A fast way would be to just add a letter before all those objects and leave the number as they are :)

    The capitals in name though, are important.

    ***
    Just to support all the above did some tests with my Hope track:
    Removing the surfaces.ini, track still loads, even if with some errors in logs
    Using lower case in ac_pit_0 and ac_pit_1 crashed the track, with a similar error as yours.

    So I put my money on door #2 :).

    luchian, Jun 6, 2015
    #232
  13. Fat-Alfie

    Fat-Alfie New Member

    Joined:
    Jun 2, 2015
    Messages:
    23
    Likes Received:
    14
    I also did some test :)

    The only way I could get the track to load after exporting from ksEditor was to manually edit the AC object names in the .fbx using a hex editor (i.e. changing ac_pit_0 to AC_PIT_0). It seems 3DsimEd3 is incapable of using capital letters for object names :banghead:

    I'm SO happy! I can now go back and start setting up the materials correctly in ksEditor :) I just need to work out why the timing isn't working.

    Thank you so much Luchian! You've been really helpful :cool:

    Fat-Alfie, Jun 6, 2015
    #233
    Pixelchaser and luchian like this.
  14. Pixelchaser

    Pixelchaser Well-Known Member

    Joined:
    Jan 4, 2015
    Messages:
    1,541
    Likes Received:
    1,050
    when it comes to modding AC... never use capitals Fat alfie ! ever :lol:

    Pixelchaser, Jun 7, 2015
    #234
    Fat-Alfie likes this.
  15. Fat-Alfie

    Fat-Alfie New Member

    Joined:
    Jun 2, 2015
    Messages:
    23
    Likes Received:
    14
    Never? Using capitals was the only way I could get the track to work :confused: Well, changing to capitals in my Hex Editor, anyway.

    Oddly though, once I have changed ac_pit_0 to AC_PIT_0 in the .fbx, I can re-import the file back into 3DSimEd3 and it retains the capitals for the object name :rolleyes:

    Fat-Alfie, Jun 7, 2015
    #235
  16. Pixelchaser

    Pixelchaser Well-Known Member

    Joined:
    Jan 4, 2015
    Messages:
    1,541
    Likes Received:
    1,050
    yeah they required now I think about it. I remember using them. I just spent a day trying to figure out why multiplayer wouldn't work on a track. that was because of a capital in the folder title....

    Pixelchaser, Jun 7, 2015
    #236
    Fat-Alfie likes this.
  17. merale

    merale New Member

    Joined:
    Feb 2, 2015
    Messages:
    14
    Likes Received:
    5
    Hello everyone

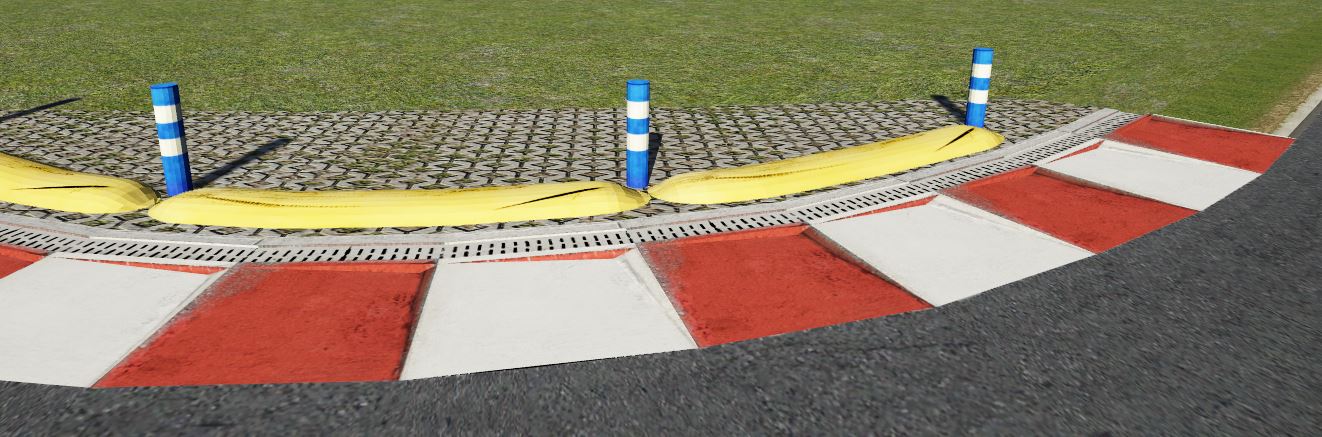

    Somewhere I've read that it is possible to make those bollards fly away if you hit them but I forget how to do that? (I think some brake marks in official tracks by kunos also fly away if you hit them)

    If I tried in the past they either act like a wall or you can drive through them.

    Thank you for the help :D

    merale, Jul 1, 2015
    #237
  18. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    3,007
    Likes Received:
    1,492
    Hi there, welcome.
    You just need to name your bollard AC_POBJECT_anynamehere.

    To take into account:
    - don't forget to set the axis too the center of the object
    - objects must not be very complex
    - don't go overboard - not more than 15 objects or so on a track (last time I've checked).
    - have fun ;)

    luchian, Jul 1, 2015
    #238
    liquido likes this.
  19. merale

    merale New Member

    Joined:
    Feb 2, 2015
    Messages:
    14
    Likes Received:
    5

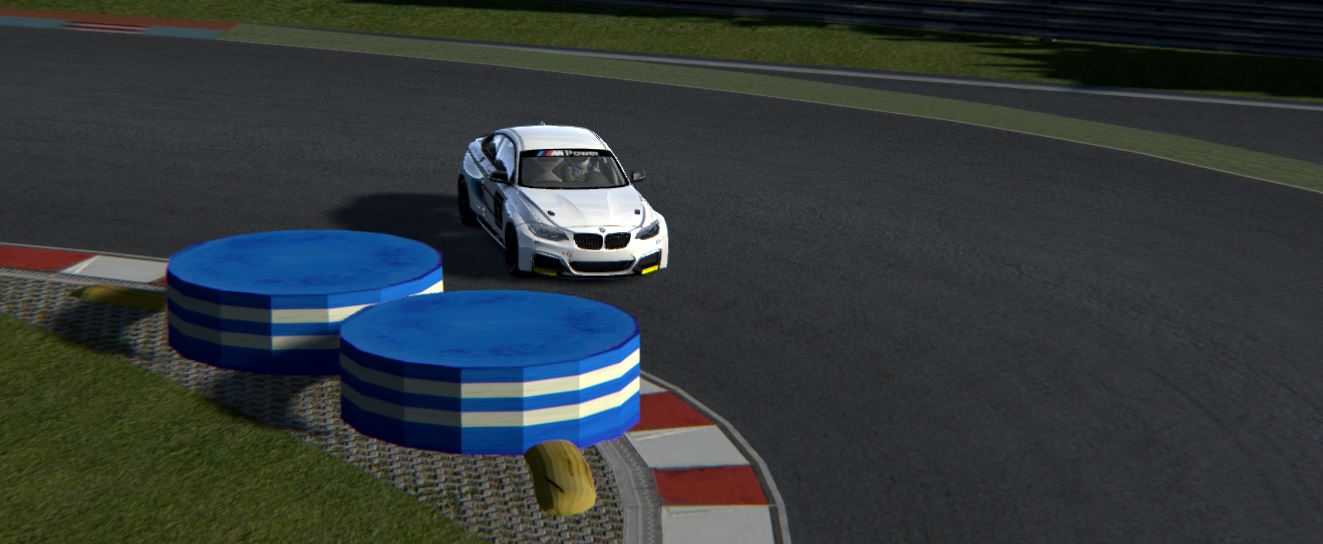

    Thank you for the quick response :D Unbenannt.JPG
    They work but they are way too big ingame
    it is just the x and y axis, the z axis stayed correct

    EDIT: I solved the problem by applying the scale in Blender. It works fine now

    Last edited: Jul 2, 2015
    merale, Jul 2, 2015
    #239
    luchian likes this.
  20. Dado

    Dado Member

    Joined:
    Apr 6, 2015
    Messages:
    33
    Likes Received:
    13
    Hi Everybody
    I'm creating a new track, using blendre, use the meter units of measure, but when I export the FBX scale is not real, how can I fix it ??
    For a track rally which is the ideal width for the track?

    Dado, Jul 5, 2015
    #240
