Featured TUTORIAL Your FIRST car in Assetto Corsa - Basic Guide

Discussion in 'Car Models | Physics' started by luchian, Aug 22, 2017.

  1. fughettaboutit

    fughettaboutit aka leBluem

    Joined:
    Jul 21, 2014
    Messages:
    377
    Likes Received:
    139
    You have to do it in Blender/3dsMax/3dSimEd, no way in ksEditor (thats only for assigning shaders and some other stuff).

    in Blender: s for scale, then type 0.1, enter (seems like its 10x too big)

  2. fughettaboutit

    fughettaboutit aka leBluem

    Joined:
    Jul 21, 2014
    Messages:
    377
    Likes Received:
    139


    And a Tutorial for Blender noobs, it says low poly and is 1hr 20mins, but its a nice overview about how to do things:

    luchian likes this.
  3. giovanni pasolini

    giovanni pasolini Member

    Joined:
    Feb 11, 2018
    Messages:
    30
    Likes Received:
    1
    Hello Guys.
    someone know how make trasparent material in KSeditor
    I like make all trasparent car, body and tyres for race director AC
    Thanks
    Giovanni

  4. denis370

    denis370 Member

    Joined:
    Jun 25, 2018
    Messages:
    110
    Likes Received:
    15

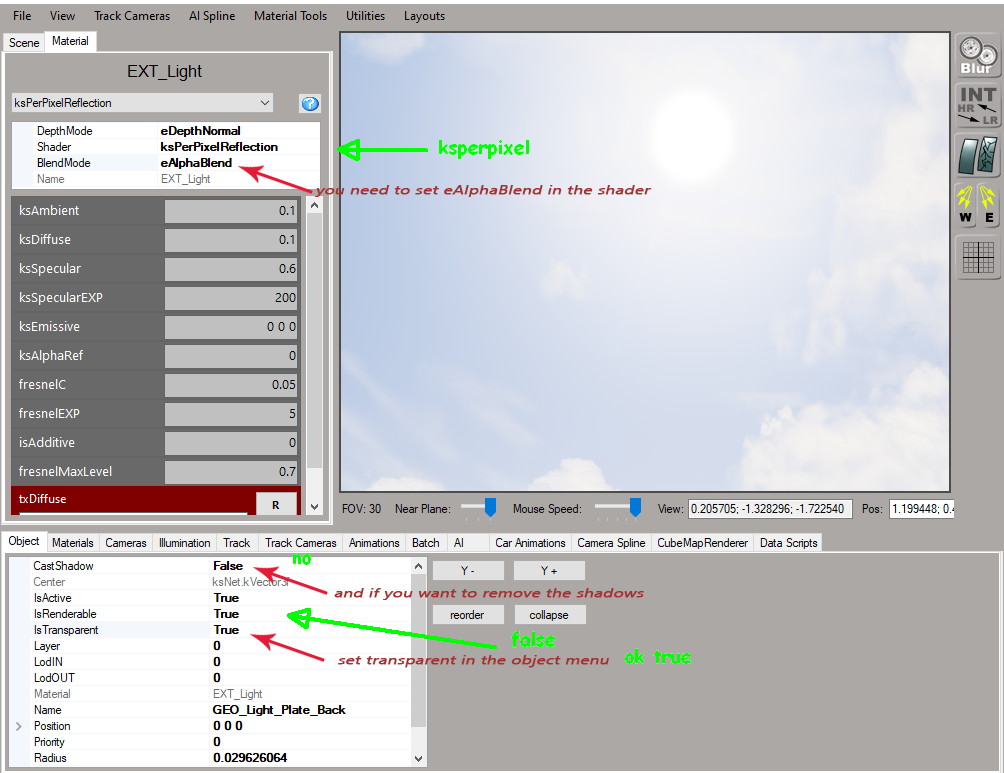

    in addition to the settings in KSeditor as in the photo, then you will have to add the alpha to the materials with fotoshop


    Attached Files:

    • demo.png
      File size:
      243.1 KB
      Views:
      33
  5. fughettaboutit

    fughettaboutit aka leBluem

    Joined:
    Jul 21, 2014
    Messages:
    377
    Likes Received:
    139

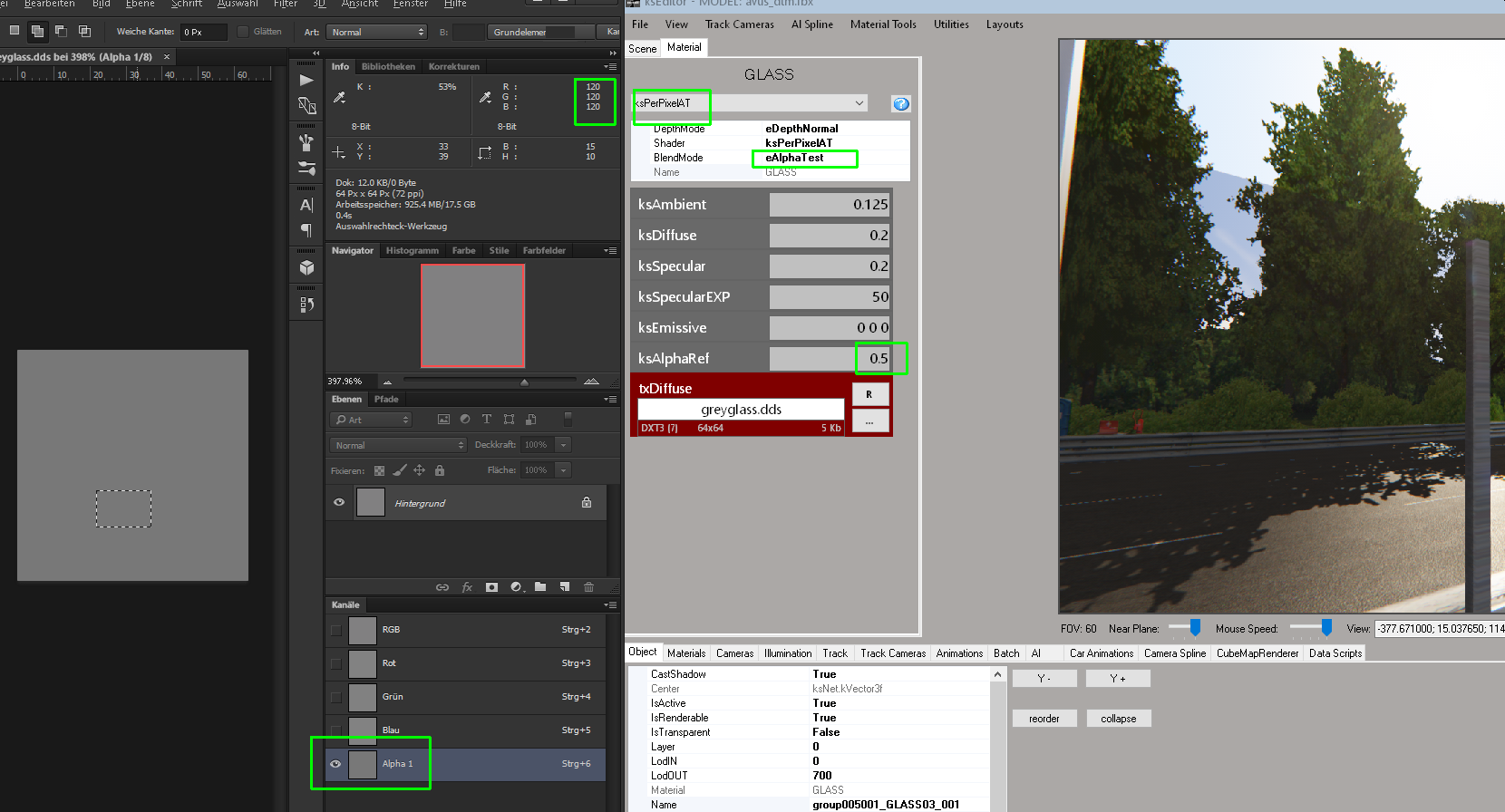

    To have ksEditor actually save and load this correct (File-'save persistence file'):

    use ksPerPixelAT... shaders:


    note:
    -ksAlphaRef>0 makes nicer shadows (same as with trees)
    -you get more quality when using "alphablend", but then you MUST set the object to "transparent"
    -using alphablend blendmode and transparent objects costs more performance than only using alphatest
    -you may have to experiment with grey value in alpha channel, alphatest only works for rgb grey values below 220 or 210

    Last edited: Nov 25, 2020
  6. giovanni pasolini

    giovanni pasolini Member

    Joined:
    Feb 11, 2018
    Messages:
    30
    Likes Received:
    1
    Thanks, I just make like your pics but change in green arrow. And works. became trasparent


    Attached Files:

    • demo.png
      File size:
      228.7 KB
      Views:
      28
  7. giovanni pasolini

    giovanni pasolini Member

    Joined:
    Feb 11, 2018
    Messages:
    30
    Likes Received:
    1
    Now I need hide te driver, because so I make now Flying Driver...,Just remove driver3d.ini in data.acd, but make error....

  8. fughettaboutit

    fughettaboutit aka leBluem

    Joined:
    Jul 21, 2014
    Messages:
    377
    Likes Received:
    139
    If you set this to "False"

    its not visible at all!

  9. denis370

    denis370 Member

    Joined:
    Jun 25, 2018
    Messages:
    110
    Likes Received:
    15

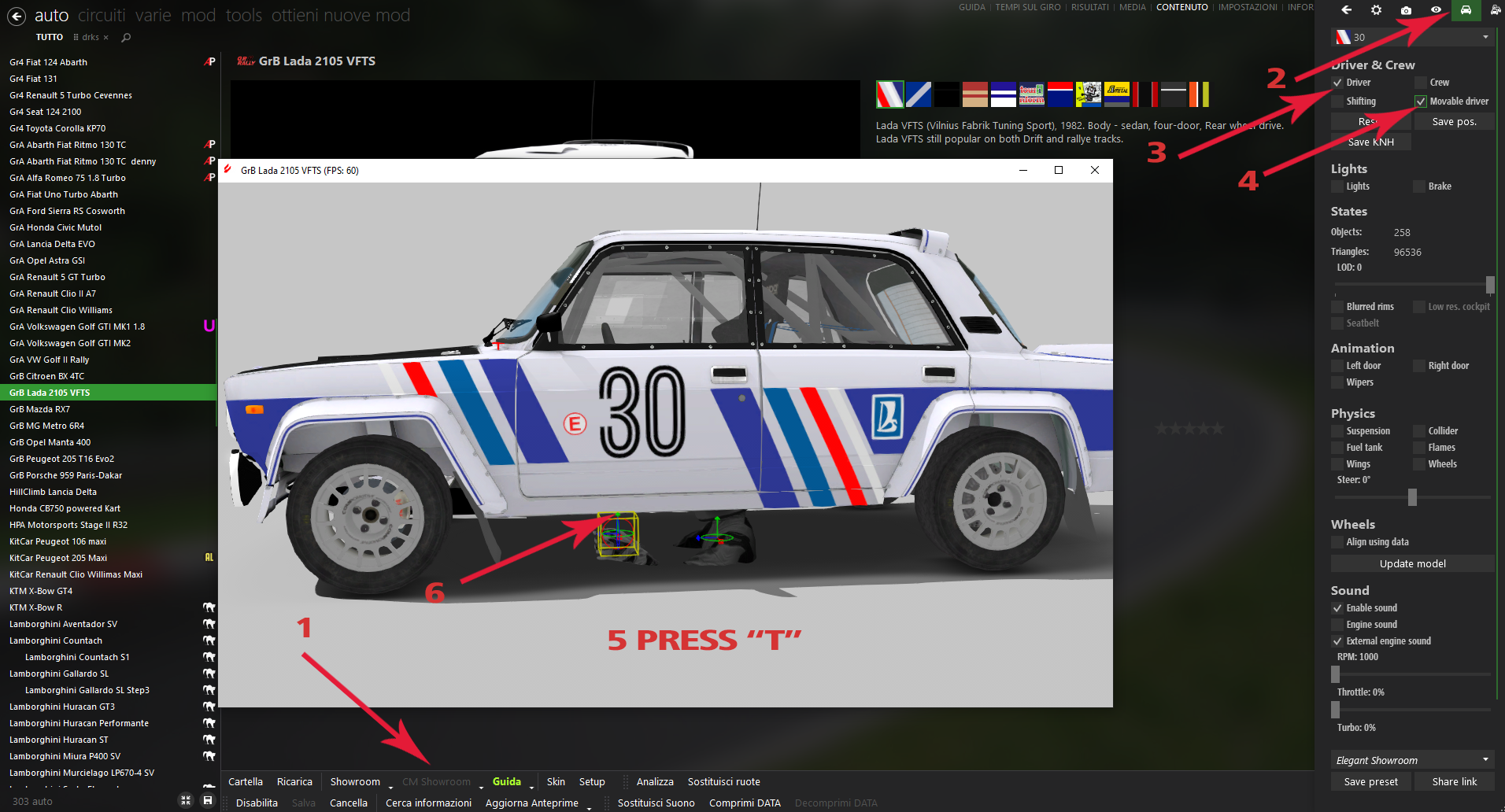

    surely there are other methods but quickly you can do so.
    1. open CMshowroom
    2. press the top menu
    3. press driver to view it
    4. press movable driver
    5 press the T key on your keyboard
    6. use the arrow to drag the driver below the ground level


    Attached Files:

  10. denis370

    denis370 Member

    Joined:
    Jun 25, 2018
    Messages:
    110
    Likes Received:
    15

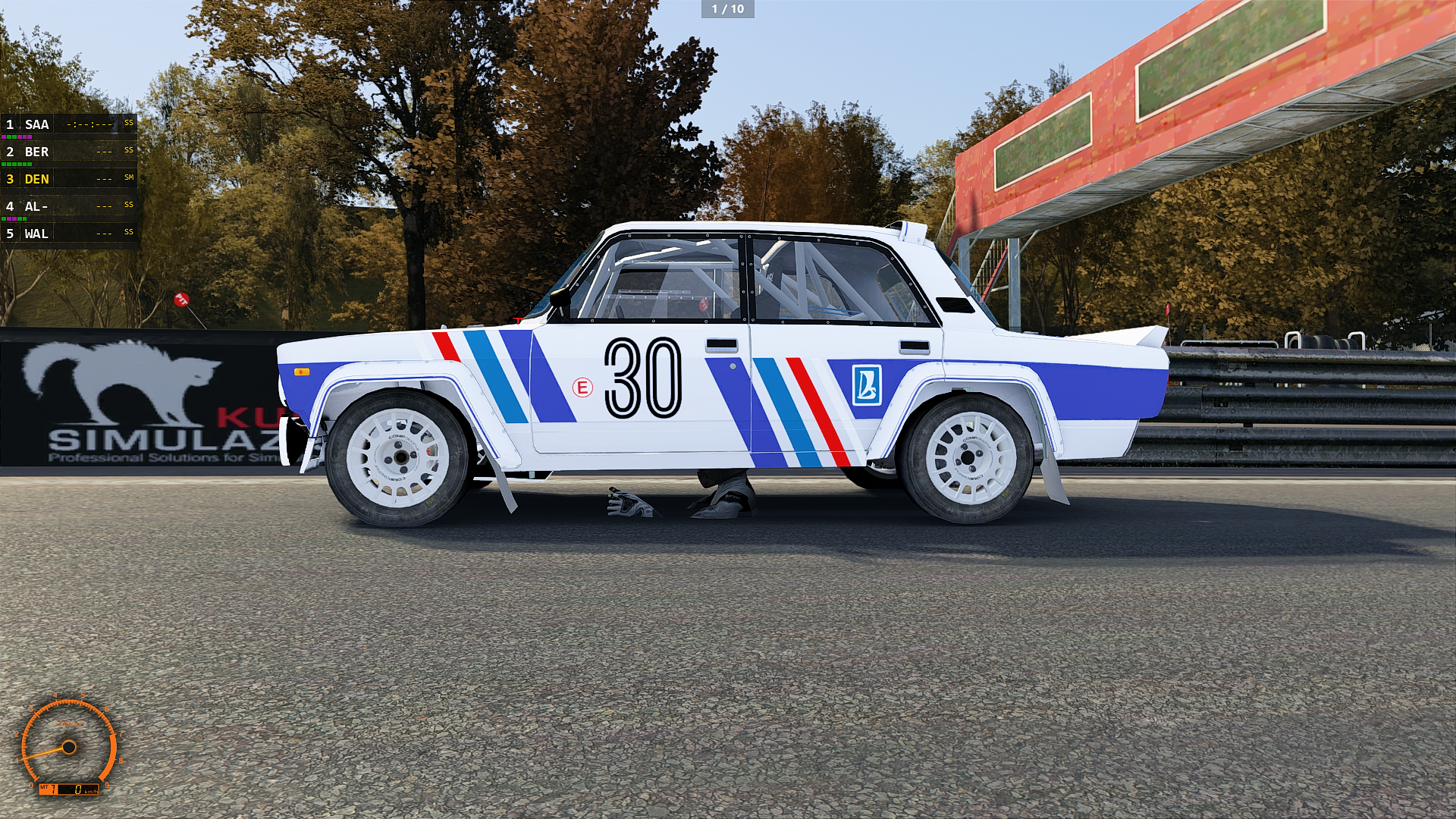

    in this image I have not moved it completely on purpose to show you the driver that disappears under the ground and you will not have any errors


    Attached Files:

  11. giovanni pasolini

    giovanni pasolini Member

    Joined:
    Feb 11, 2018
    Messages:
    30
    Likes Received:
    1
    yes correct the Director Car I like is hidden car, also without driver....

  12. giovanni pasolini

    giovanni pasolini Member

    Joined:
    Feb 11, 2018
    Messages:
    30
    Likes Received:
    1
    Thanks
    oh my god, is only way to make invisible diver ?

  13. denis370

    denis370 Member

    Joined:
    Jun 25, 2018
    Messages:
    110
    Likes Received:
    15
    I don't think it's the only one, this is fast and does what you need

  14. denis370

    denis370 Member

    Joined:
    Jun 25, 2018
    Messages:
    110
    Likes Received:
    15
    I found the solution for you

  15. denis370

    denis370 Member

    Joined:
    Jun 25, 2018
    Messages:
    110
    Likes Received:
    15
  16. giovanni pasolini

    giovanni pasolini Member

    Joined:
    Feb 11, 2018
    Messages:
    30
    Likes Received:
    1
  17. Emil Andersson

    Emil Andersson New Member

    Joined:
    Jan 6, 2021
    Messages:
    3
    Likes Received:
    1
    Hey folks! Thx for a great thread for newbies! I have decided I want to try to make my own car mod. I Have no previous experience on car modding, especially the 3d department. So it will be a big challenge!

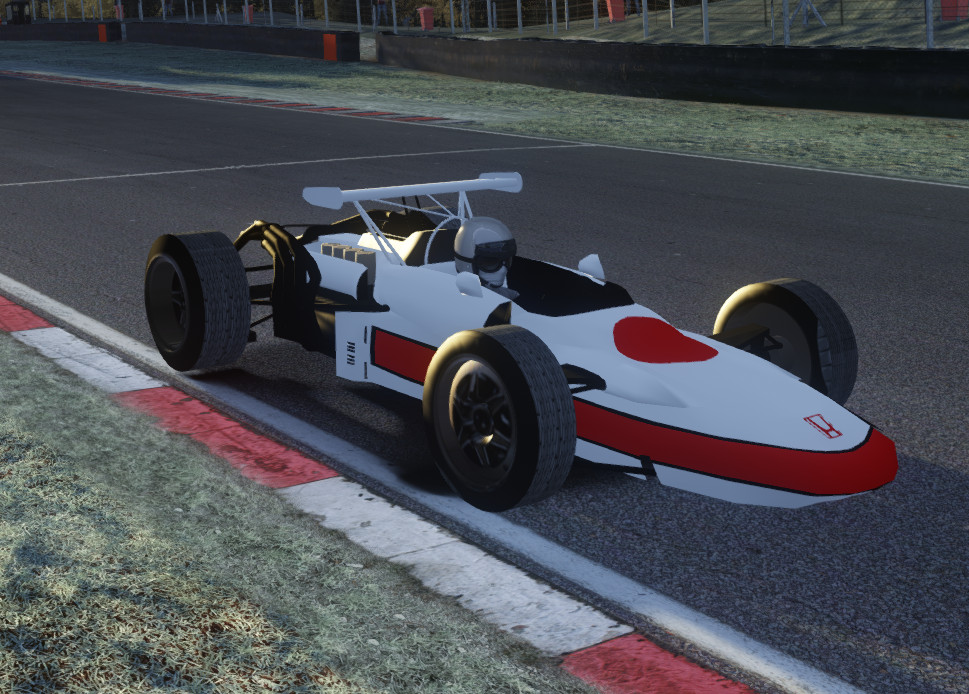

    Have have started to get a simple 3d sketch up of the Honda RA302 body (made by Koalaboy) into blender, get the simple tires with dummies from Luchian's tutorial car, and an almost working steering wheel so far. (it was alot of trouble with scaling the fbx file from blender)

    I'm at this stage atm. And yes you are allowed to laugh at my failed try on making the wheels! Looks like a car from a 90's game! xD


    But I don't have any massive goals on the looks cause I don't have the knowledge for that. But I will try and hopefully learn as I go :)

    If anyone is interested in the making of this car and got knowledge in 3d modeling all help is appreciated!
    I can manage making decent physics and sounds but the graphical side will suffer.

    Next step I want to add suspension animations. Any good tutorials for that around? :)

    /Emil

    fughettaboutit likes this.
  18. denis370

    denis370 Member

    Joined:
    Jun 25, 2018
    Messages:
    110
    Likes Received:
    15
    I would like to know how to change the sounds ...
    to animate the suspensions you can find some example fbx files inside Steam \ steamapps \ common \ assettocorsa \ sdk \ dev \ car_pipeline_2.0rev \ Scene templates.
    always in the same path you will find the Pipeline where you find quite well explained how to do the animations, the names etc, from page 56 onwards.
    I know how to animate wipers, doors, wings and all about it, but I've never animated suspensions.
    for the wheels, but for everything in general, you have to pay close attention to the orientation of the empty and their scales, which must always be numbers like 1.0, 0.10, 0.010 etc and in export you must have 1.0

    Emil Andersson likes this.
  19. Emil Andersson

    Emil Andersson New Member

    Joined:
    Jan 6, 2021
    Messages:
    3
    Likes Received:
    1
    Thank you for the tips! Are you a decent 3d designer? =)

    To make sounds for AC you need to download fmod studio. The program is pretty easy to work with. The hard part about making car sounds is to get good sound samples!

  20. denis370

    denis370 Member

    Joined:
    Jun 25, 2018
    Messages:
    110
    Likes Received:
    15
    I'm a non-expert 3d designer, but for a couple of years I have been using blender and gradually improving ..
