SHADER setting-up trees

Discussion in 'Tracks' started by jarodyi, Nov 4, 2014.

  1. Bruno Mendes

    Bruno Mendes New Member

    Joined:
    Jan 6, 2020
    Messages:
    15
    Likes Received:
    1
    Ok I'll re-check the shader when i get home...

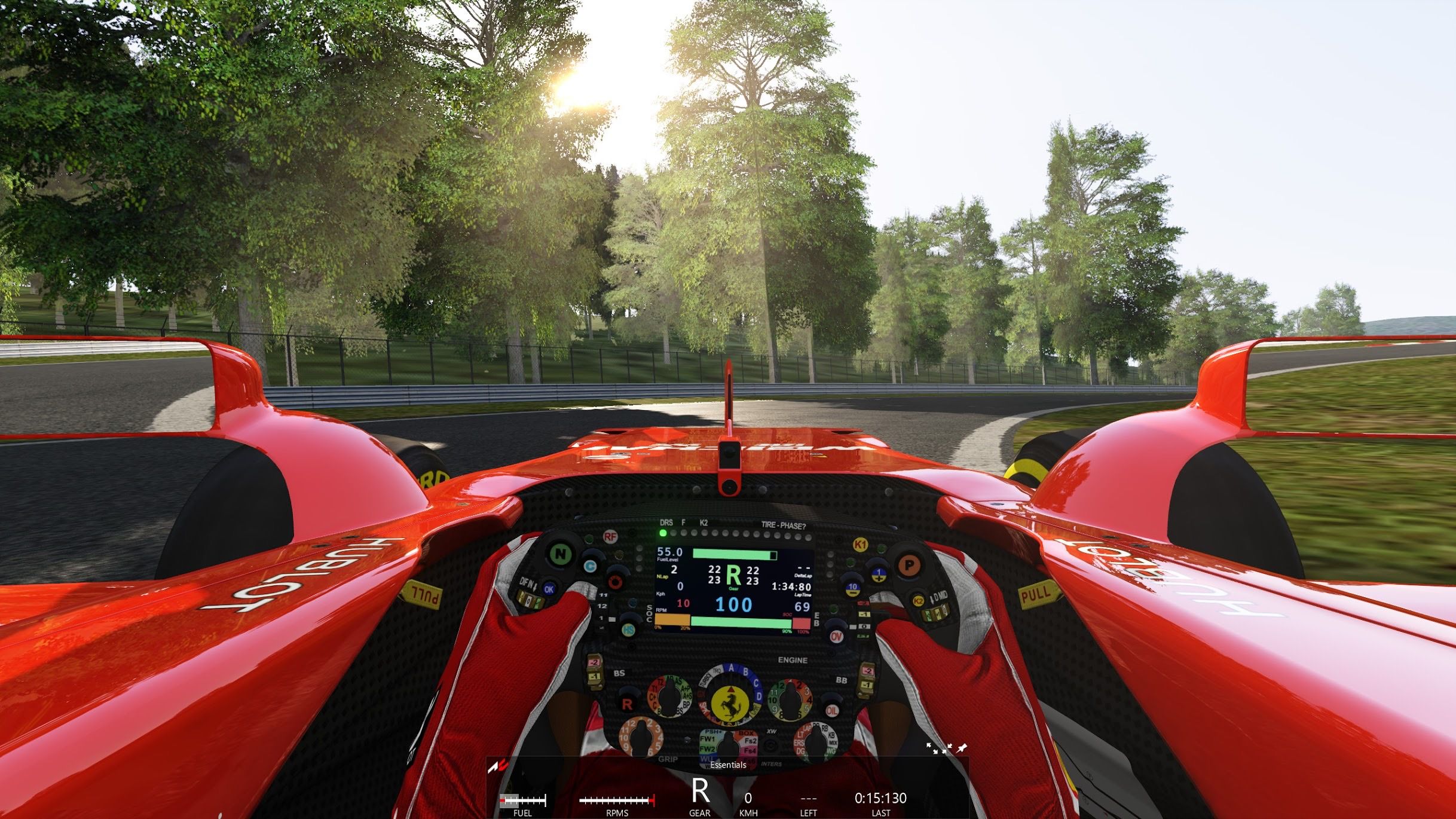

    Attached there is a secreenshot how it looks like in the game....

  2. Bruno Mendes

    Bruno Mendes New Member

    Joined:
    Jan 6, 2020
    Messages:
    15
    Likes Received:
    1
    Nice ... ill check this addon =]

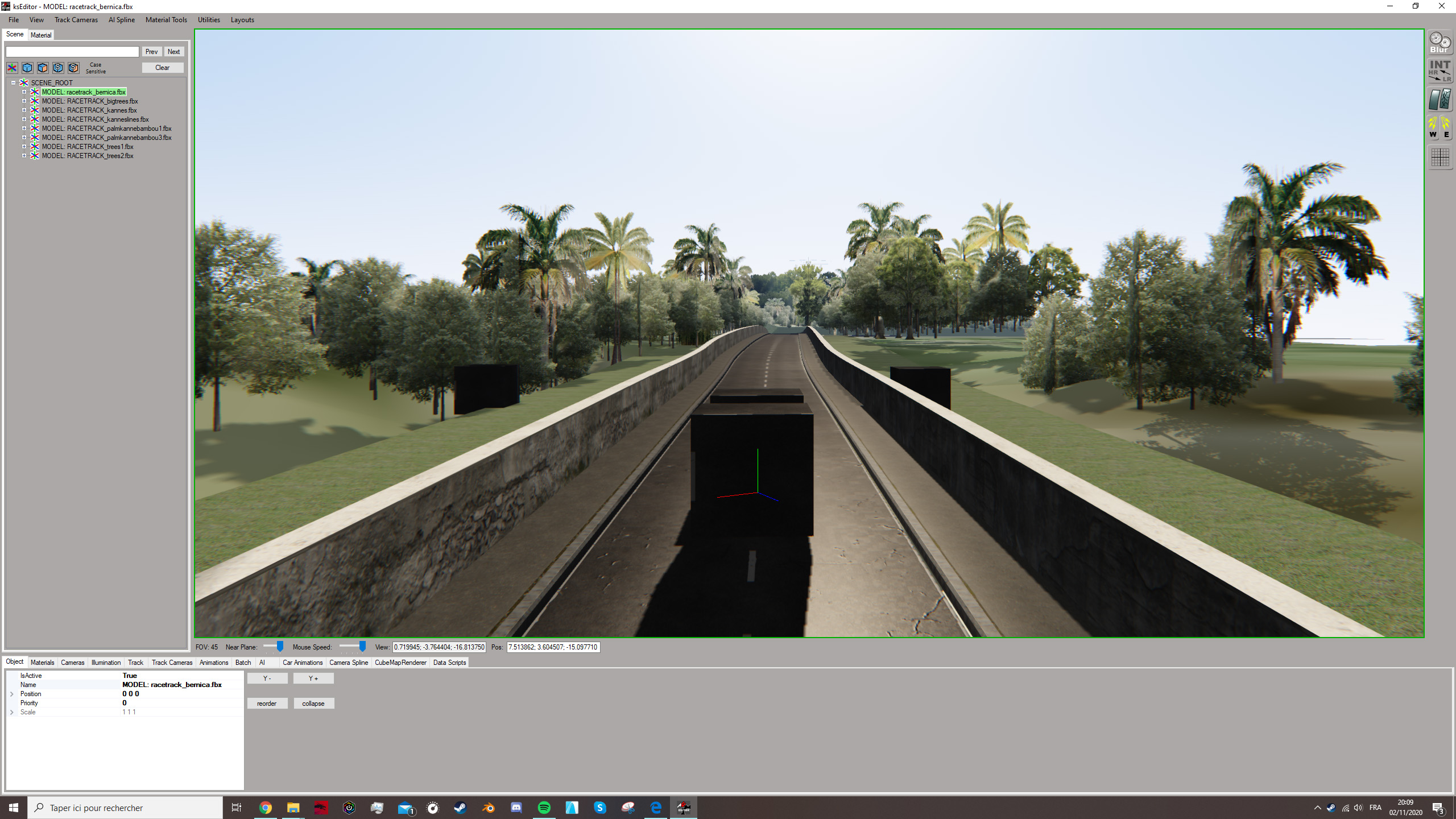

    I've attached a screenshot how my trees are in the game... Is it supposed to look similar to this? the one showing the edge it's just a matter of rotating it?


    Attached Files:

  3. Portland12345

    Portland12345 New Member

    Joined:
    Feb 11, 2017
    Messages:
    20
    Likes Received:
    9
    yeah that is just incorrect unwrap.


    you can follow this tutorial here.


    but with 2.8 you can skip everything if you use images as plane addon.

    just follow the part where he rotates the tree correctly and sub divides it.

    and it will look good in game.


  4. Bruno Mendes

    Bruno Mendes New Member

    Joined:
    Jan 6, 2020
    Messages:
    15
    Likes Received:
    1
    Thanks a lot man! Trees looks better now!

    Cheers

  5. Bruno Mendes

    Bruno Mendes New Member

    Joined:
    Jan 6, 2020
    Messages:
    15
    Likes Received:
    1
  6. Theis

    Theis New Member

    Joined:
    Apr 29, 2020
    Messages:
    7
    Likes Received:
    1
    Hi!
    Trying hard to wrap my head around trees in AC :)

    I cant get the group naming to work in KS Editor...

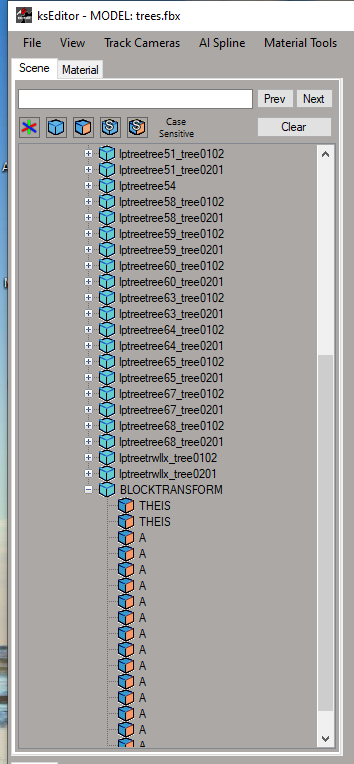

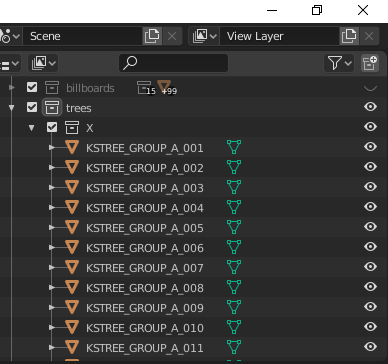

    I´ve read this entire thread on the naming convention, but it still won´t group the way it´s supposed to. Here´s how the objects are named in Blender, and how they end up in KS Editor - instead of 1 group with 15 trees, I get 15 groups all named the same.

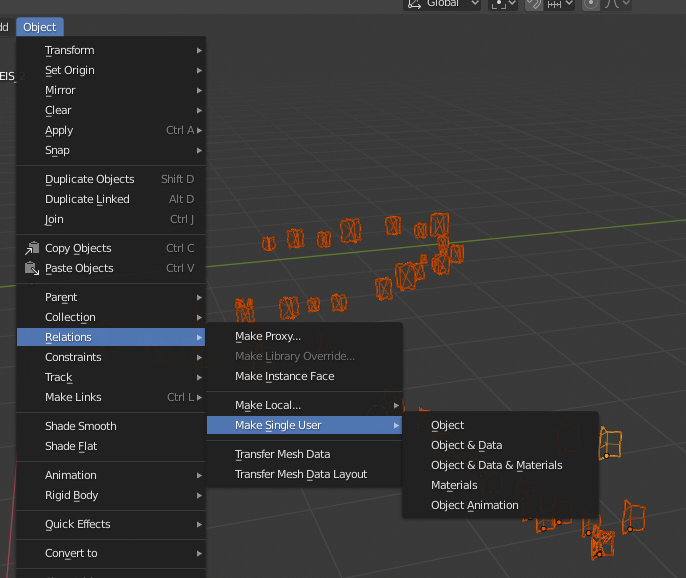

    I saw the post and reply re. Make Single User, but I´m not sure I´m doing it correctly. I´m marking the objects in Blender, then choosing the option shown in the screenshot below, but makes no difference. Is it something I set when exporting to .fbx perhaps?

    Please help! :)





    2020-06-19 (1).png 2020-06-19 (2).png 2020-06-19.png

  7. fughettaboutit

    fughettaboutit aka leBluem

    Joined:
    Jul 21, 2014
    Messages:
    273
    Likes Received:
    105
    dont start with KSTREE_GROUP_a_001
    but with
    KSTREE_GROUP_a_1

    ;)

    small Blender-script that does it, replace _a_ with what you want:

    Code:
    import bpy
    if True:
      i=1
      prefix='KSTREE_GROUP_a_'
      for ob in bpy.context.selected_objects:
        ob.name=prefix+str(i)
        i+=1
        print(ob.name)
        if ob.type == 'MESH':
          ob.data.name=ob.name
      print(str(i) + ' objects')

    luchian and Prototype like this.
  8. fughettaboutit

    fughettaboutit aka leBluem

    Joined:
    Jul 21, 2014
    Messages:
    273
    Likes Received:
    105
    and yes, make single user! Every tree must be an individual ;)

  9. Theis

    Theis New Member

    Joined:
    Apr 29, 2020
    Messages:
    7
    Likes Received:
    1
    Thanks for the reply, fughettaboutit!

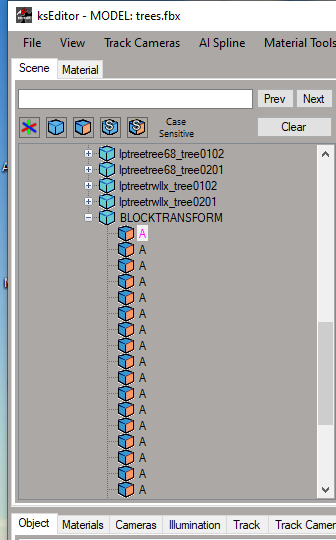

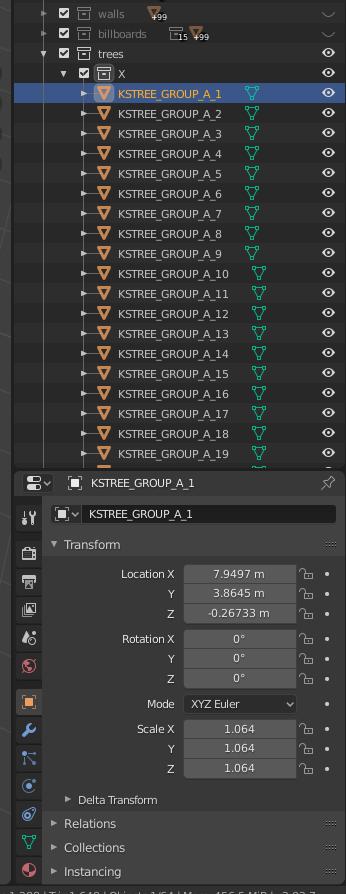

    Should have mentioned that I already tried quite a few naming options, but still doesn´t work. I tried the 1, 2, 3 as you suggested but made no difference:

    2020-06-19 (5).png

    2020-06-19 (4).png

    I´ve only used Blender for a few months, so there´s lots I don´t know/understand, and I´m not sure about the "single user" issue. I did follow the instructions:
    - In Object mode
    - "A" to select all my objects, including the trees
    - Click the menu Object -> Relations -> Make Single User -> Object & Data
    - Then choose "Selected Objects" from the small menu that appears

    But it doesn´t make a difference once looking at the exported fbx in KS Editor - still a long list of BLOCKTRANSFORM objects all named the same (and with different materials, making it a pain to adjust shaders)

  10. LilSKi

    LilSKi Well-Known Member

    Joined:
    Apr 6, 2015
    Messages:
    361
    Likes Received:
    315
    Do they all have the same material?

    fughettaboutit and Theis like this.
  11. Theis

    Theis New Member

    Joined:
    Apr 29, 2020
    Messages:
    7
    Likes Received:
    1
    Doh! No, they didn´t. Just made a test with a few trees where I force the same material on all, and it works :) Thanks!! So obvious, and yet I didn´t think about it.

    This happened because I copy-c/v my tree object in my blender scene - when doing so, it automatically gives the new object it´s own material name (why??) - even though it could/should be exactly the same. I just googled a way to assign one material to multiple objects, so I guess I´ll just need to remember to do that moving forward...

    Thank you so much for your help, LilSki and fughettaboutit!

    fughettaboutit likes this.
  12. Theis

    Theis New Member

    Joined:
    Apr 29, 2020
    Messages:
    7
    Likes Received:
    1
    ah of course, I could use Alt-D to make the copies (instances) instead of copy-c/v, and then just need to remember to make them single-user before export.... oh, the joys of learning :)

  13. Theis

    Theis New Member

    Joined:
    Apr 29, 2020
    Messages:
    7
    Likes Received:
    1
    Regarding treelines using Blender 2.8x, I had trouble getting the normals to point in different directions, like having the top point up and the bottom-edge point somewhat down, as was recommended by Lilski. I finally found a nice and easy method:

    - TAB to edit your treeline object
    - Move your cursor to the edge you want to edit normals for, and use Alt-lmb (left-mouse-button) to select edge only (like your top-edge of the treeline)
    - ALT-L to "point normals to target"
    - lmb once to bring up small menu with options/coords
    - type in 10000 in Z-value to point up (or -10000 to point down)

    You can also make the normals in a different angle by combining a high X or Y value with a somewhat lower Z value (like 10000 Y and 5000 Z).

    Repeat with the other edge, point them in some other direction.

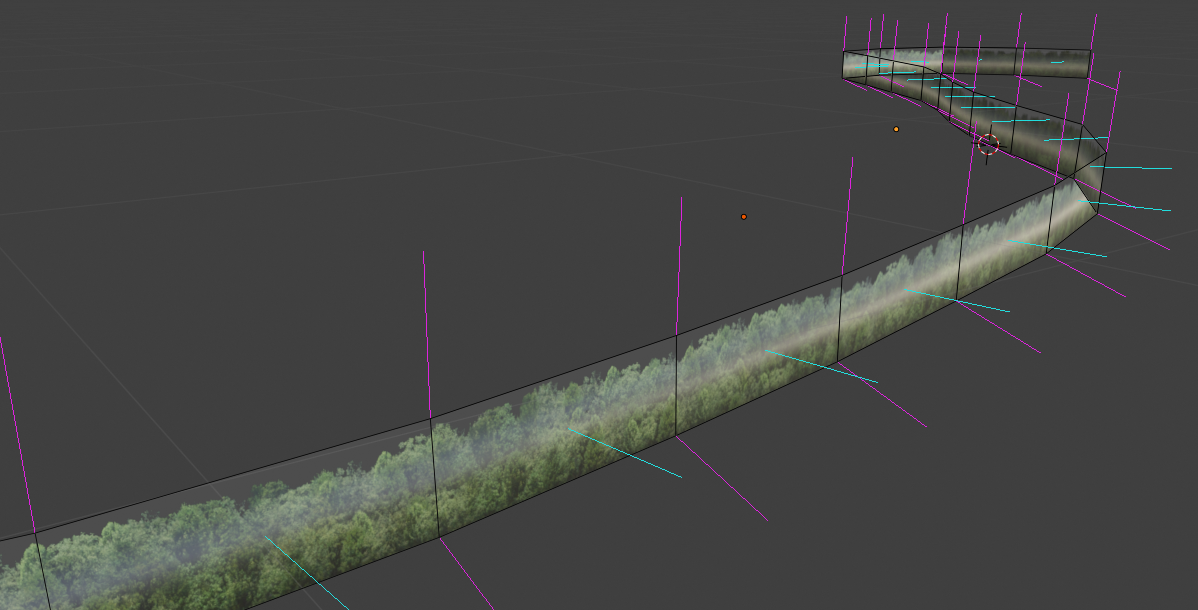

    Should look something like this, for example:


    I find that pointing top-edge straight up, and pointing bottom edge 45 degrees down gives nice results, but happy to hear other ideas!


    Hope this helps :)

  14. wardenjam

    wardenjam New Member

    Joined:
    Aug 26, 2020
    Messages:
    1
    Likes Received:
    1
    This must be a simple one but I can't find the solution in here... sorry if I'm blind.

    My Trees are casting plane shadows not shadows of the alpha. I'm using ksTree and pretty sure they're grouped correctly by name. Any help would be appreciated.

    EDIT - Found it in the end: ksAlphaRef was set to 0

    Last edited: Sep 9, 2020
    Johnr777 likes this.
