  1. Leonardo Ratafia

    Leonardo Ratafia Member

    Joined:
    Aug 31, 2015
    Messages:
    68
    Likes Received:
    36
    I'd rather wait to make those kind of cameras until the track has more objects. Though being a rather small track I'll give it a try and share later for sure.

    maruto likes this.
  2. maruto

    maruto Member

    Joined:
    Apr 28, 2020
    Messages:
    64
    Likes Received:
    77
    Thanks for the AI, i'll fix the pit soon, upgrade on the track is next on line:
    -finish villeneuve corner,
    -finish Depailler corner
    - rework lines and line texture and shader,
    -pitlane mesh split and rename as in surface.ini ( this should solve your issues)
    -tiremarks,
    -concrete jonctions
    ...

    I had a blast too yesterday : 10 laps night race with Ben O'bro's newly upgraded caterham. Amazing mod, beautiful model and really fun car, fit's the track perfectly! (your old AI was great by the way, eager to try this one)

    Martin Dupuis likes this.
  3. Martin Dupuis

    Martin Dupuis New Member

    Joined:
    Aug 1, 2018
    Messages:
    15
    Likes Received:
    4
    Thanks for the update on what's coming :)

    I downloaded the Caterham yesterday, but haven't driven it yet. Guess what I'm about to do now ! ;)

  4. maruto

    maruto Member

    Joined:
    Apr 28, 2020
    Messages:
    64
    Likes Received:
    77

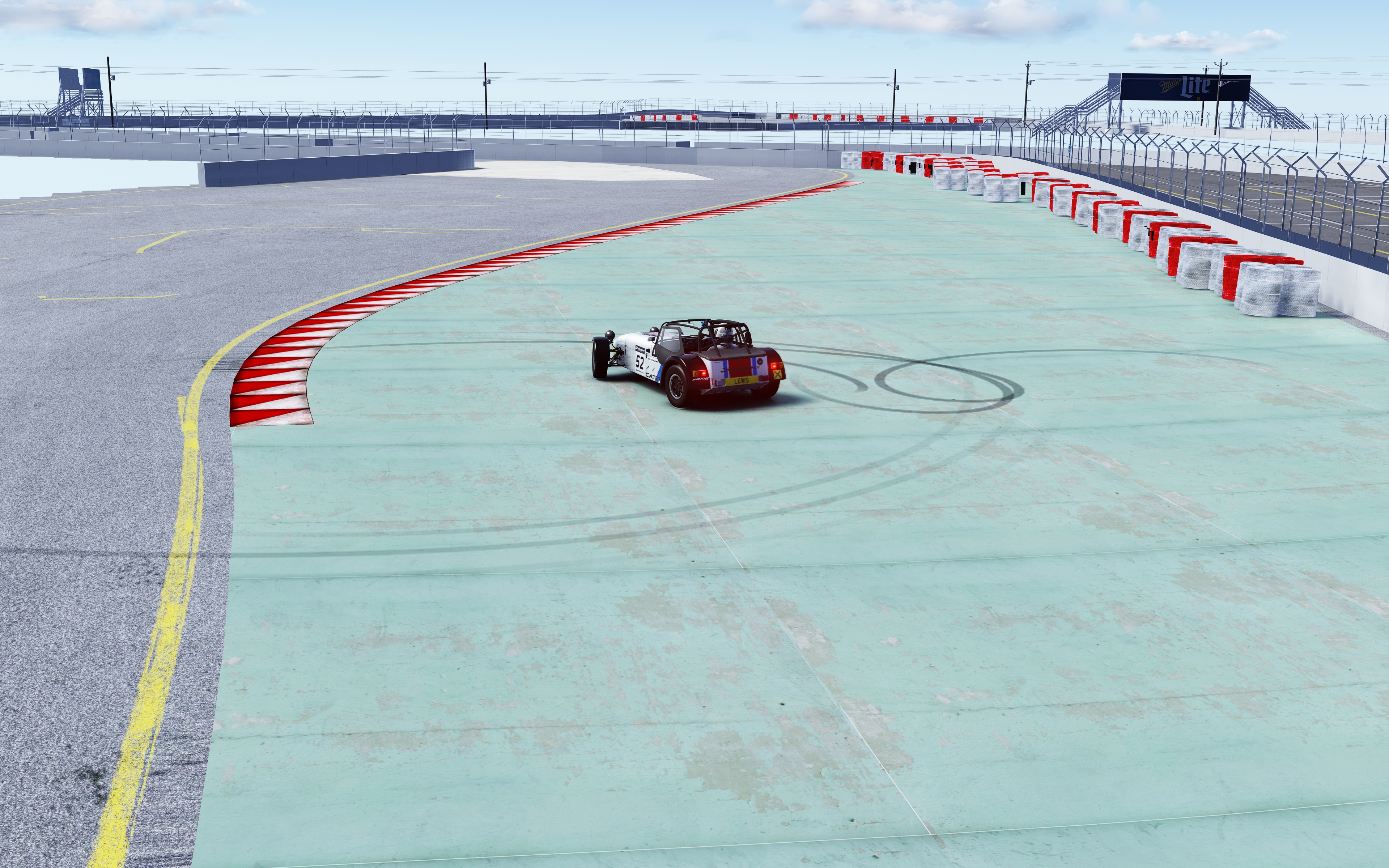

    Villeneuve corner done, working on skidmarks now, next update on sunday!

    Tom 00 and JrC like this.
  5. JrC

    JrC Member

    Joined:
    Feb 2, 2021
    Messages:
    64
    Likes Received:
    21
    Looks great. I havent been able to get my lights working yet. Want that for Van as well.

  6. maruto

    maruto Member

    Joined:
    Apr 28, 2020
    Messages:
    64
    Likes Received:
    77

    Lights are done via the ext_config.ini:

    1) you need to isolate the mesh that will light your scene... and name them as you want. the normal of the mesh will be the direction of the light.

    here in this example i created a mesh of 4 faces (like a pyramid) named pot_lum to wich i asigned a material named also pot_lum

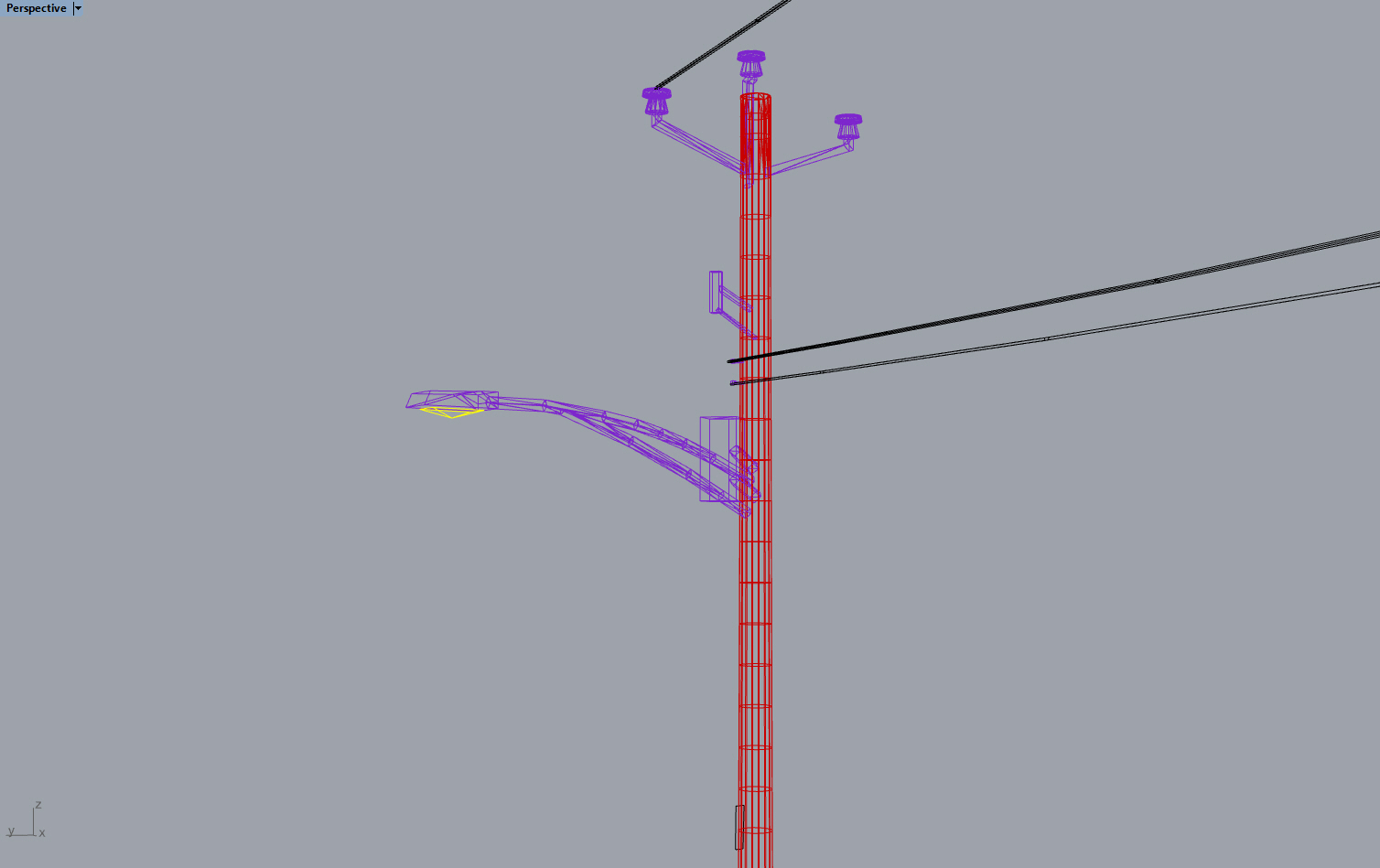

    71_ lamposts.jpg

    2)then in the config file you add this code: you can use either the name of the mesh or the material to trigger the light...

    the first part controls the light that will be produce (fps heavy) , the second will control the glow around

    [LIGHT_SERIES_...]
    DESCRIPTION=street light old
    MESHES=pot_lum
    MATERIALS=pot_lum
    CLUSTER_THRESHOLD=0
    DIRECTION = NORMAL
    OFFSET = 0, 0, 0
    SPOT = 100
    SPOT_SHARPNESS = 0.1
    RANGE = 15
    RANGE_GRADIENT_OFFSET = 0.4
    FADE_AT = 700
    FADE_SMOOTH = 30
    COLOR = 255, 209, 178, 0.025
    SINGLE_FREQUENCY = 0
    CONDITION = NIGHT_SMOOTH

    [MATERIAL_ADJUSTMENT_...]
    DESCRIPTION=street light old emissive
    ACTIVE=1
    MESHES=pot_lum
    MATERIALS=pot_lum
    KEY_0=ksEmissive
    VALUE_0= 255, 244, 229, 10
    VALUE_0_OFF= 0
    KEY_1 = ksAlphaRef
    VALUE_1 = -193
    VALUE_1_OFF = 0, 0, 0
    CONDITION = NIGHT_SMOOTH
    RANGE = 45


    this is just a quick sumary, further reading and experimentation is needed to understand it, but is it the basics so you can start playing with lights notions ;)

    further reading here :

    https://github.com/ac-custom-shaders-patch/acc-extension-config/wiki/Tracks-–-Lights

    JrC likes this.
  7. Johnr777

    Johnr777 Moderator

    Joined:
    Jul 26, 2017
    Messages:
    576
    Likes Received:
    402
  8. JrC

    JrC Member

    Joined:
    Feb 2, 2021
    Messages:
    64
    Likes Received:
    21
    Thanks Maruto.
    I would be trying it right now but lets just say I have realized what a mess I made of the track in my noobishness after Luchian and John explained the DIP.

    Im debating whether I try to fix it or just start from scratch again. Ill try the code as soon as I can though!

  9. maruto

    maruto Member

    Joined:
    Apr 28, 2020
    Messages:
    64
    Likes Received:
    77

    Scratch!!!!!!!!

    no better way to learn to swim than being pushed in a lake by a friend.

    you'll find help here.

    I'll help ;)

    JrC likes this.
  10. maruto

    maruto Member

    Joined:
    Apr 28, 2020
    Messages:
    64
    Likes Received:
    77
    yeah simple plane for now, but I want something irregular like this:

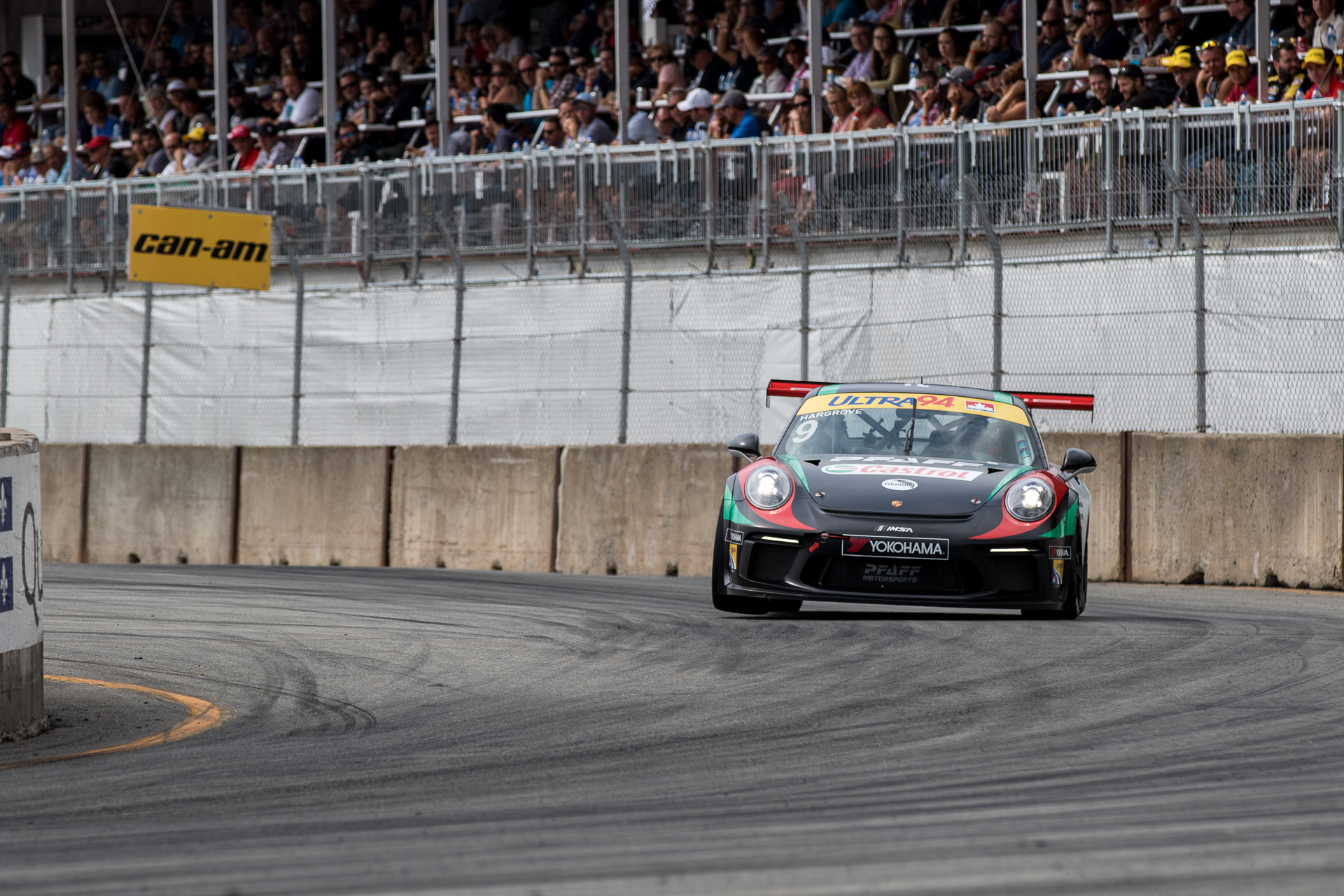

    GP3R - AC-26.jpg

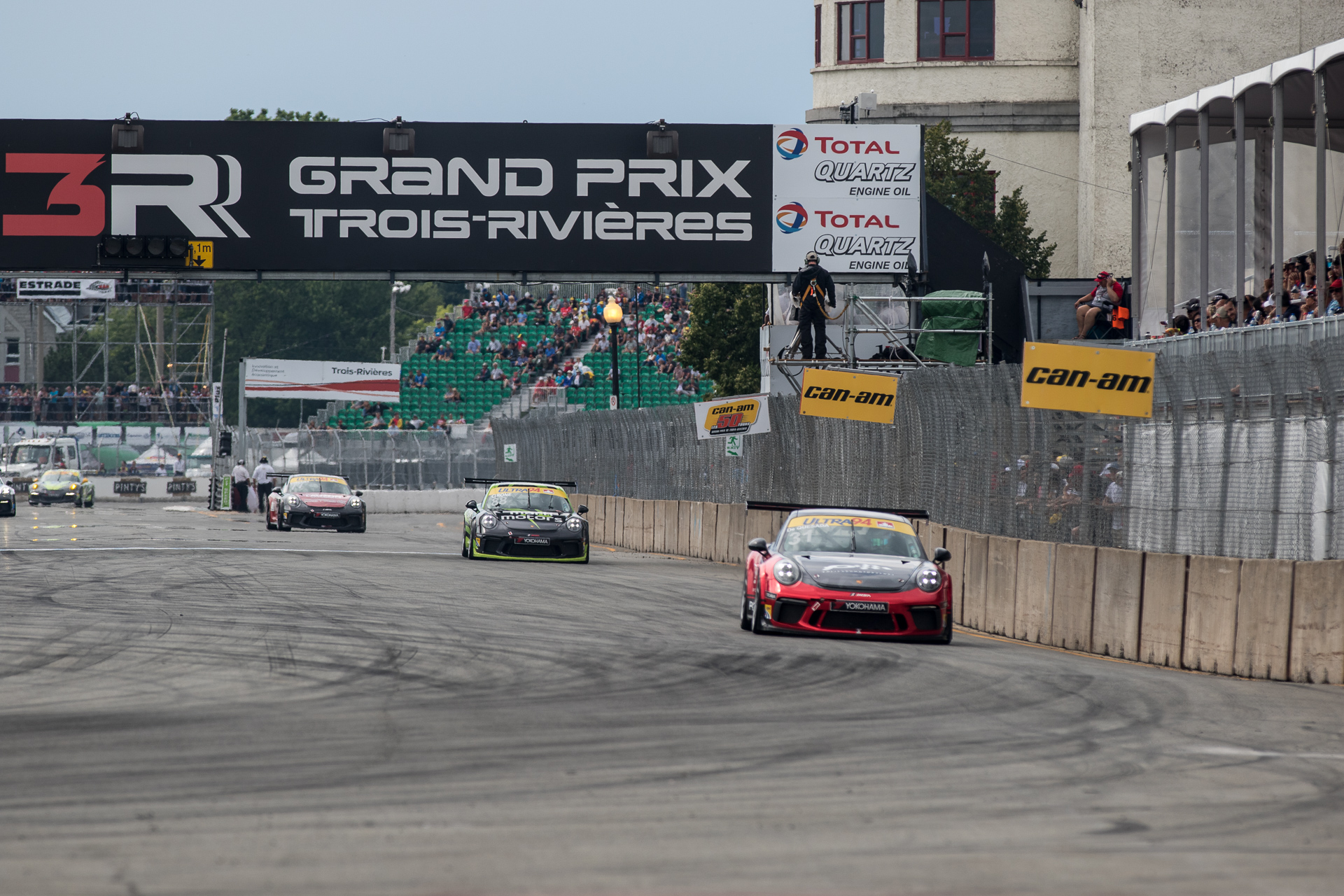

    GP3R - AC-24.jpg
    (photos by Julien Hébert, just got in touch with him, his pictures are great and will help a lot)

    not sure how i'll do that yet ;)
    i know how to create irregular geometry,
    but not how to apply a texture that will not repeat itself over lets say four or five module...

  11. JrC

    JrC Member

    Joined:
    Feb 2, 2021
    Messages:
    64
    Likes Received:
    21
    Trust me... you want me work through this stuff first :lol:

    I had some walls that had 26 materials attached after I had played around in the early days with joining and unjoining objects...

    Saved it though. With the different saves I was able to hack it all back together so its all good.

    I built the mesh the same way and used the same type of naming convention and I cant get the lights on.
    Ill have to come back to it.

    I need a break :lol:...

    Scratch will come... ;)

  12. Brandydo

    Brandydo New Member

    Joined:
    Jul 28, 2020
    Messages:
    2
    Likes Received:
    4
    Buildings are coming along...

    I have a few more tweaks on the go to the Arch including some that should improve dusk racing.


    Attached Files:

    maruto and JrC like this.
  13. Johnr777

    Johnr777 Moderator

    Joined:
    Jul 26, 2017
    Messages:
    576
    Likes Received:
    402

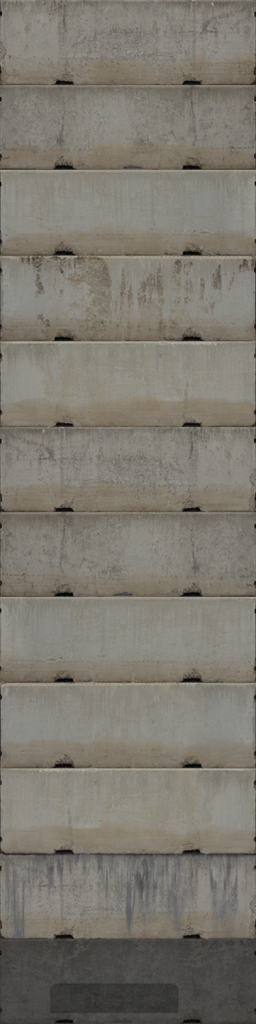

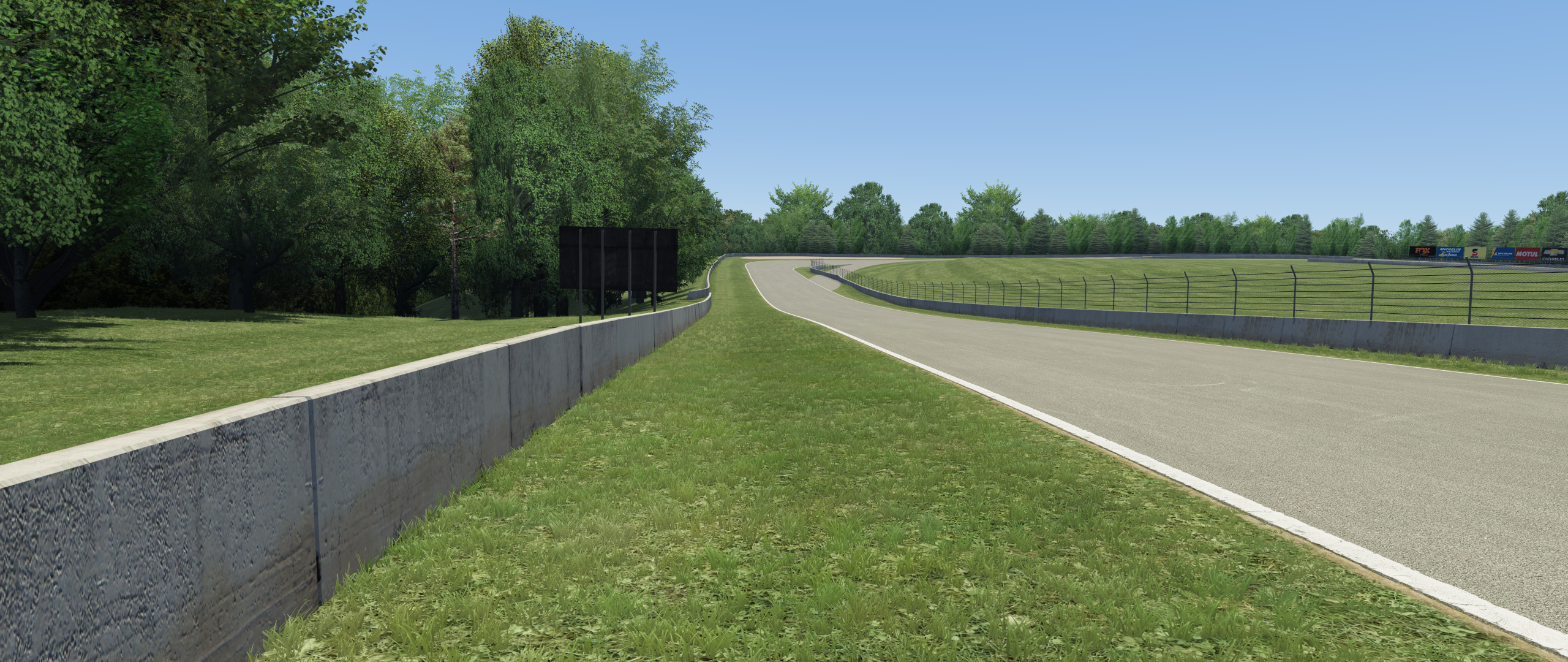

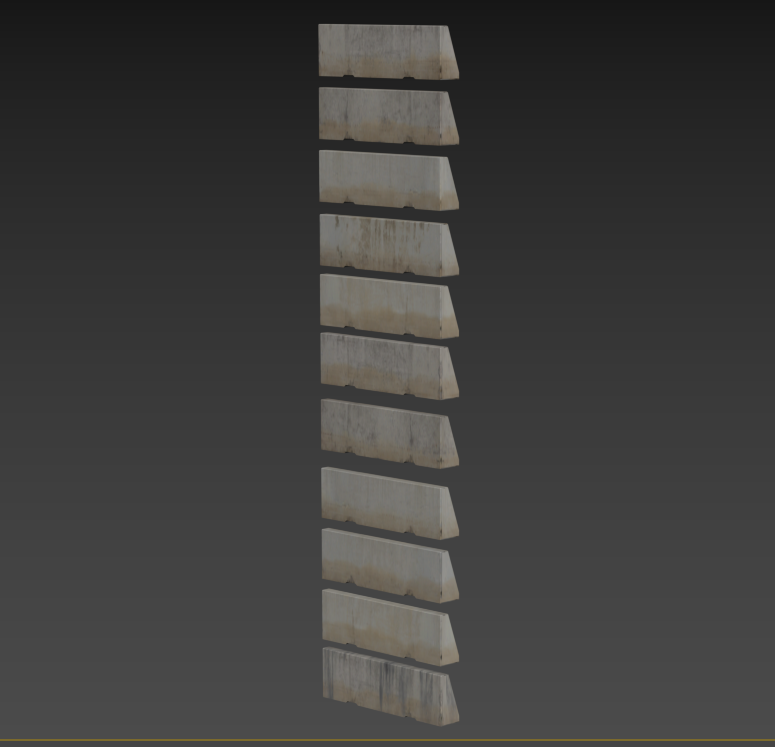

    The way I have done my wall sections in Road Atlanta is similar to what Kunos did with Laguna Seca, you make 10-11 different meshes, have them all uniquely unwrapped with a good texture sheet and then use a parametric style tool to array them in place with a slight X/Y randomness. Railclone in my case, dont know the equivalent in Rhino... Grasshopper?

    Capture.PNG walls.jpg

    luchian and maruto like this.
  14. maruto

    maruto Member

    Joined:
    Apr 28, 2020
    Messages:
    64
    Likes Received:
    77

    great!!! I saw your post this morning, can't wait to try it!

    As you said one of the biggest pleasure of scratch making a track is trying it after importing new stuff to it ;)

  15. maruto

    maruto Member

    Joined:
    Apr 28, 2020
    Messages:
    64
    Likes Received:
    77

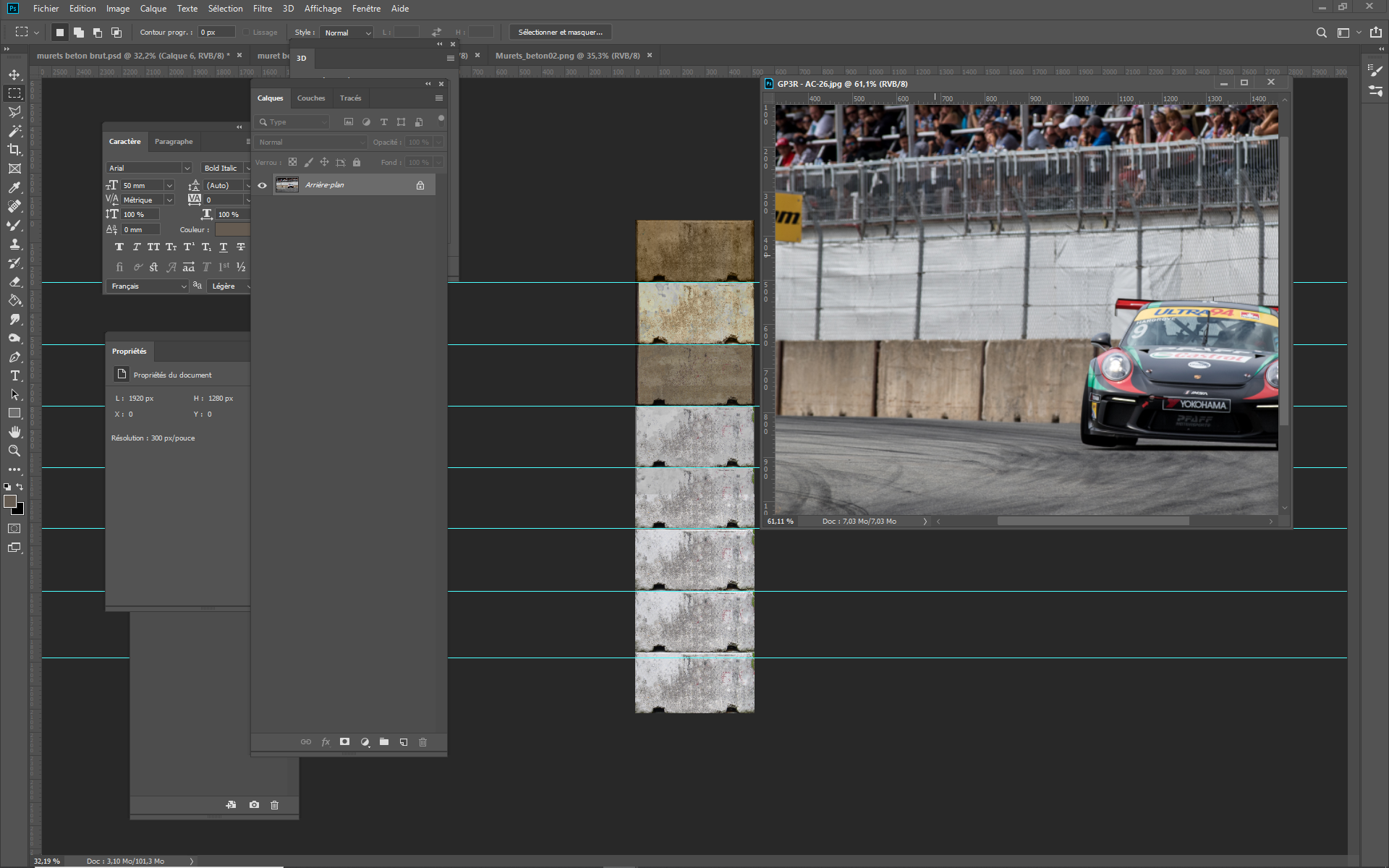

    Really clever and simple. Exactly what i needed. if you mirror the texture on the mesh you get as much as 22 variations, that's more than enough not to have a regular pattern. i'll use grasshopper to array them randomly.
    and then i imagine you can join them as a single mesh as long as is is not over 30000 faces...

    is 256x1024 enough? When creating texture, i tend to think the bigger the better, then i do them big and reduce the resolution if necessary, then the hires texture is available... as you can't do the opposite.

    I'll do it for the white walls too.

    Thanks John. By the way this is the first screenshot of your WIP Road Atlanta that i see, looking good!
    I really like the short layout there, the flow is amazing. really happy that you are working on it ;)

    Last edited: Feb 20, 2021
  16. Johnr777

    Johnr777 Moderator

    Joined:
    Jul 26, 2017
    Messages:
    576
    Likes Received:
    402
    You could afford something more higher res for the walls, since they are right there in view all the time. This texture was originally 512x2048, I scaled it down for the post.

    I posted some more preview images over at RD, but will start a progress thread here too!

  17. maruto

    maruto Member

    Joined:
    Apr 28, 2020
    Messages:
    64
    Likes Received:
    77
    Trying to get the right tint ;)


    JrC, luchian and Tom 00 like this.
  18. maruto

    maruto Member

    Joined:
    Apr 28, 2020
    Messages:
    64
    Likes Received:
    77
    Update v0.2.2 download here

    Brand new buildings, Villeneuve corner, nice working pitlane, skidmarks, AI, etc, tons of fun...

    0.2.2 (22/02/2021)
    ------
    Four new buildings! Duplessis lighting columns fixed (Brandydo)
    Spawn redistribution on pitlane (M.Dupuis) The user pitbox is now in the middle of the pitlane
    Second attempt at tirewalls (not fully optimised;mesh reduced by 50% but looking less broken)
    Invisible walls not to fall into hell and for tirewalls
    Texture tests for walls


    0.2.1 (19/02/2021)
    -----
    test release for an online race on friday, went to bed at 3:30 in the morning because it started at 8:00 pm Québec time.... it was FUN! 1:15.709 with the MX5 Cup;)

    pitlane fixed and renamed, works fine now
    Villeneuve corner done, i'll do 3D kerb when i have enought infos about it
    Depailler corner sidewalk fixed
    lines shader fixed
    skidmarks layer added
    new AI and sidelines files (M.Dupuis)

    enjoy

    next: irregular walls, more lamposts (hippodrome, parking lot, Baseball stadium) grass surroundings, sponsors...

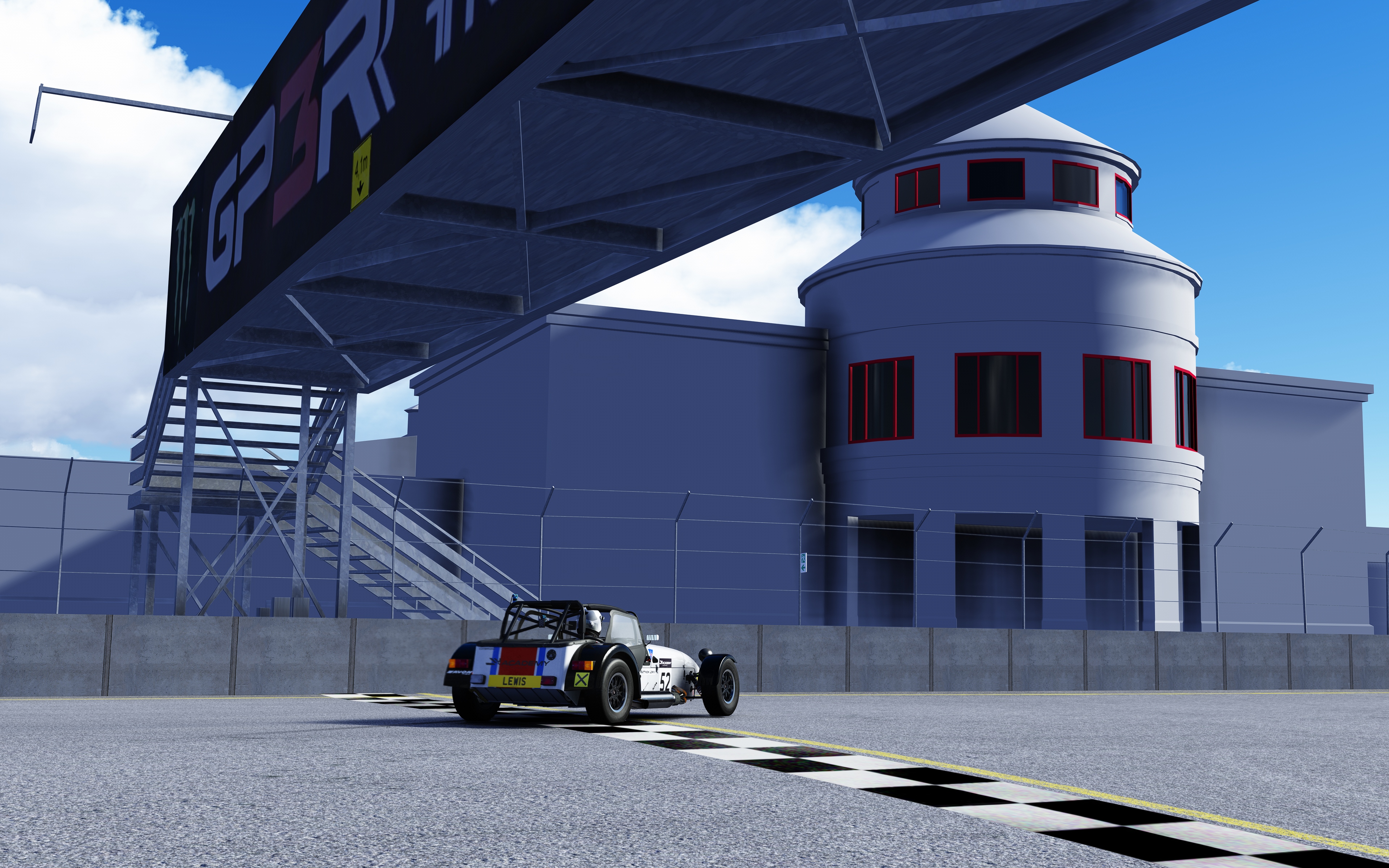

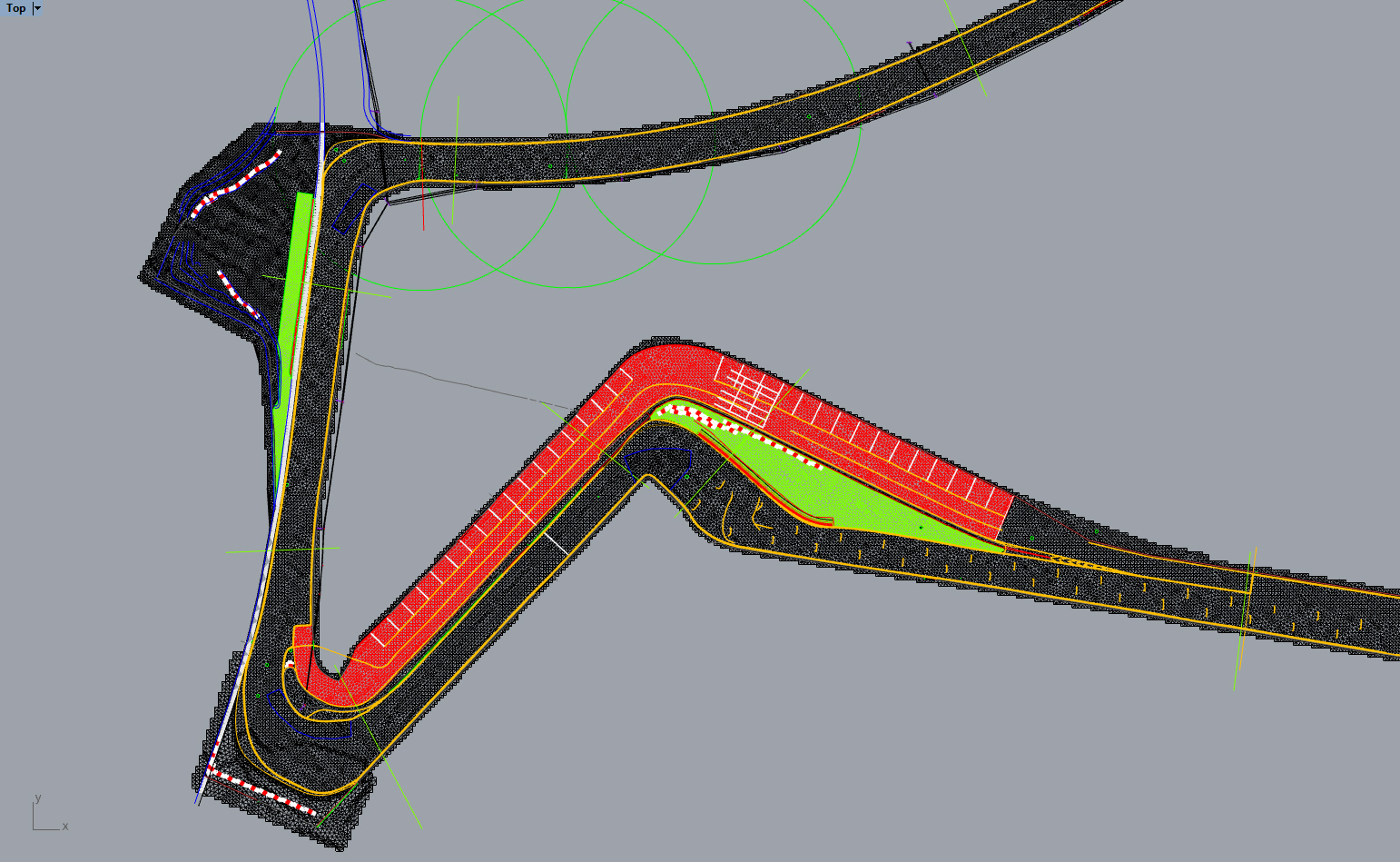

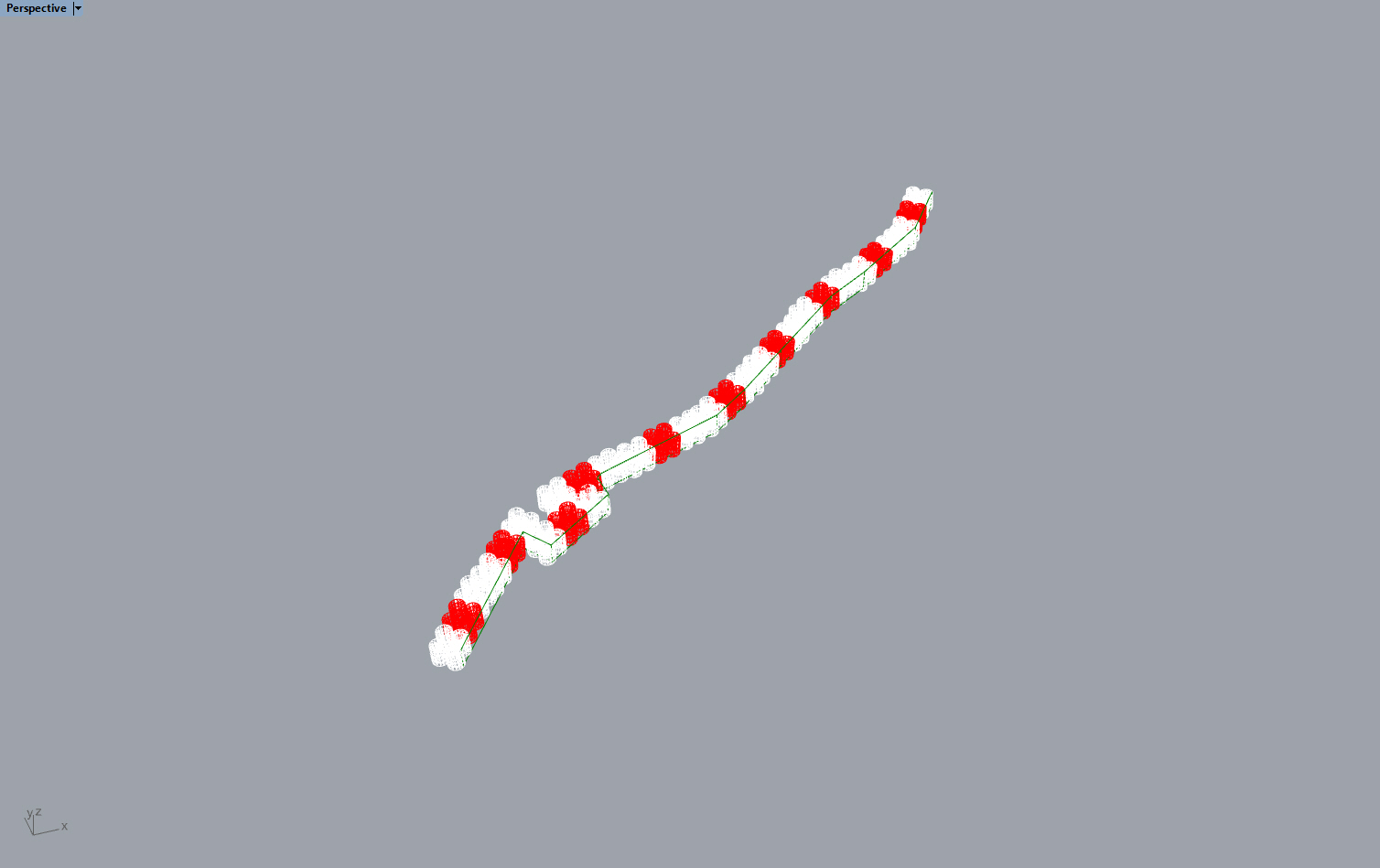

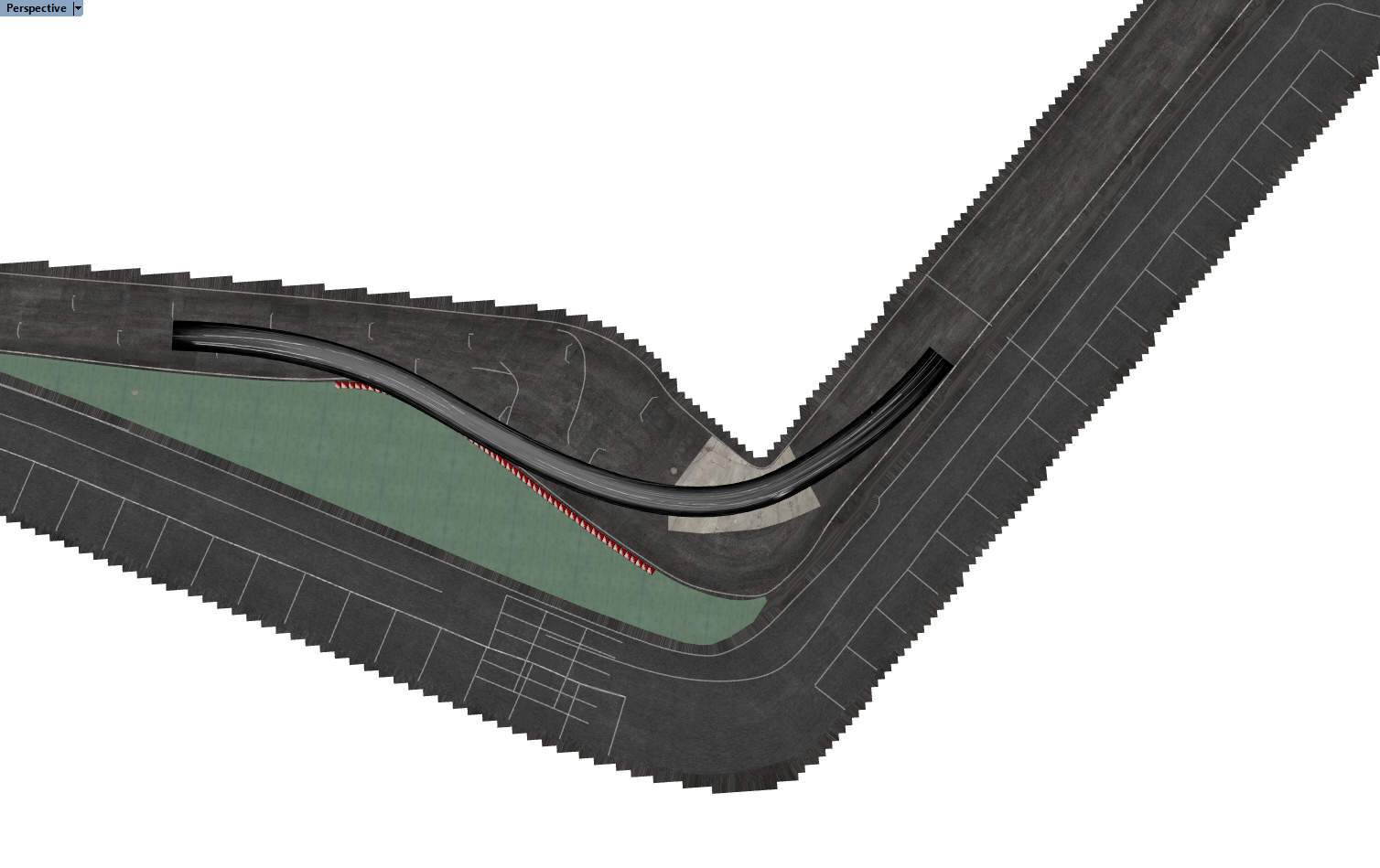

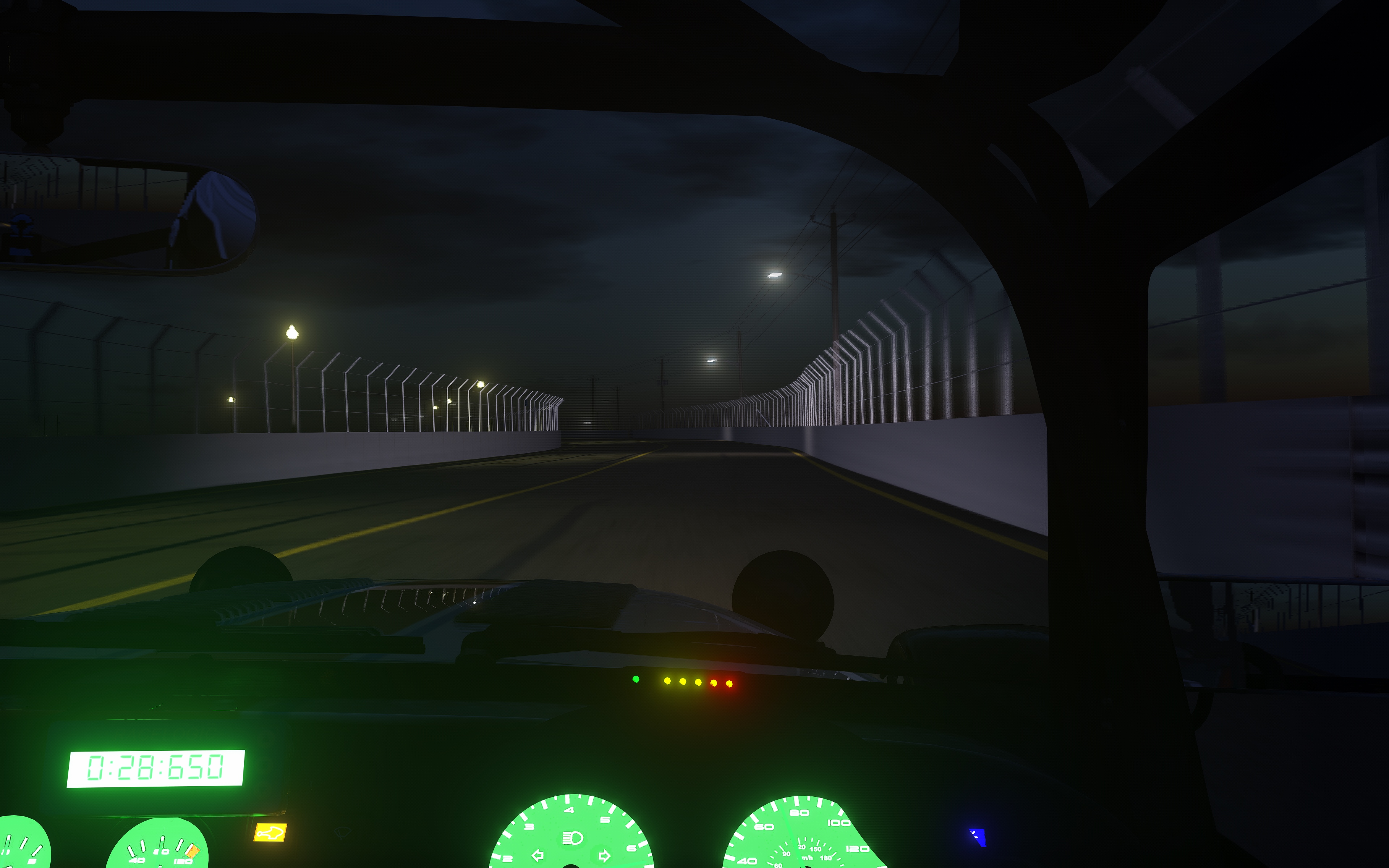

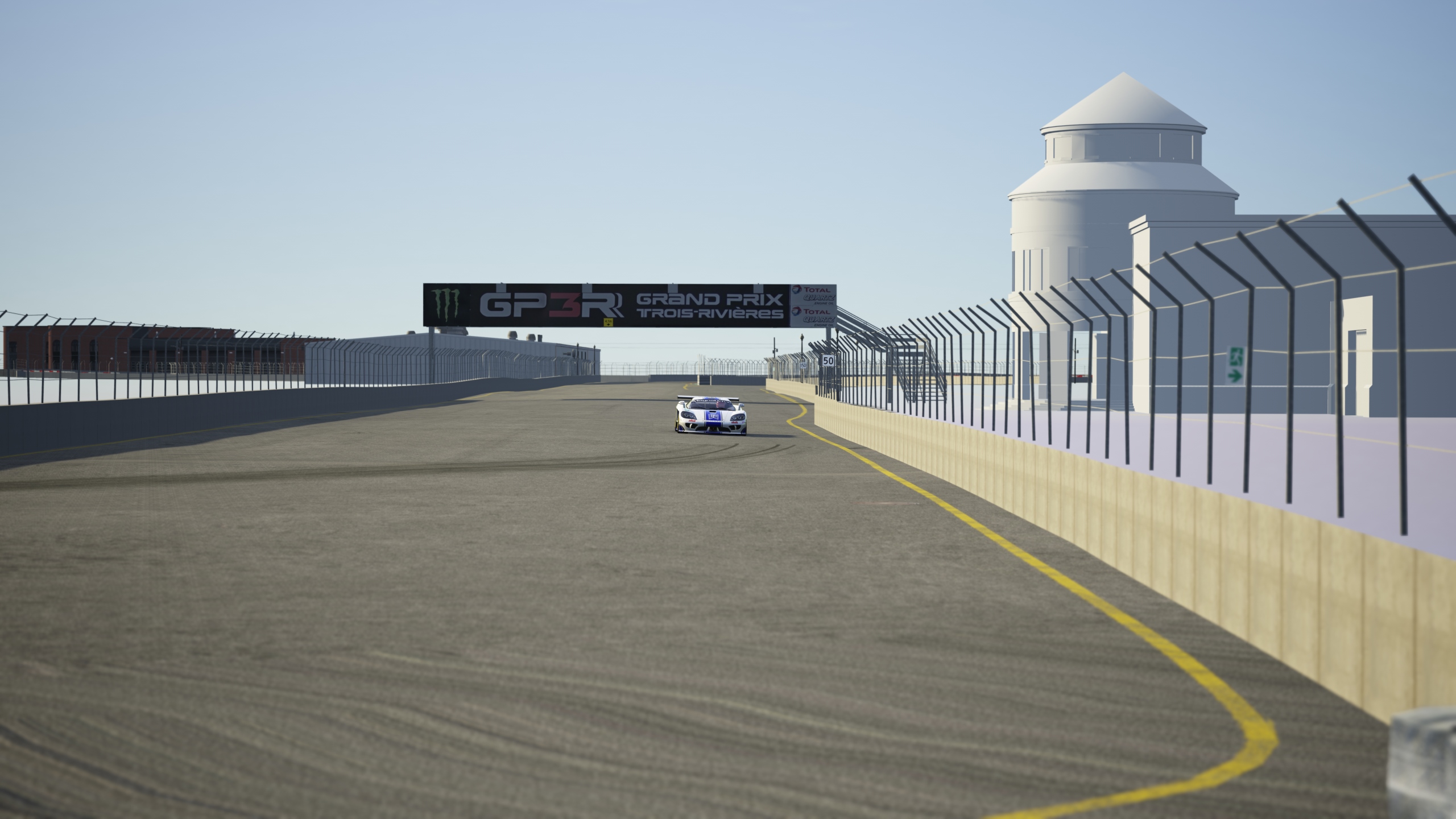

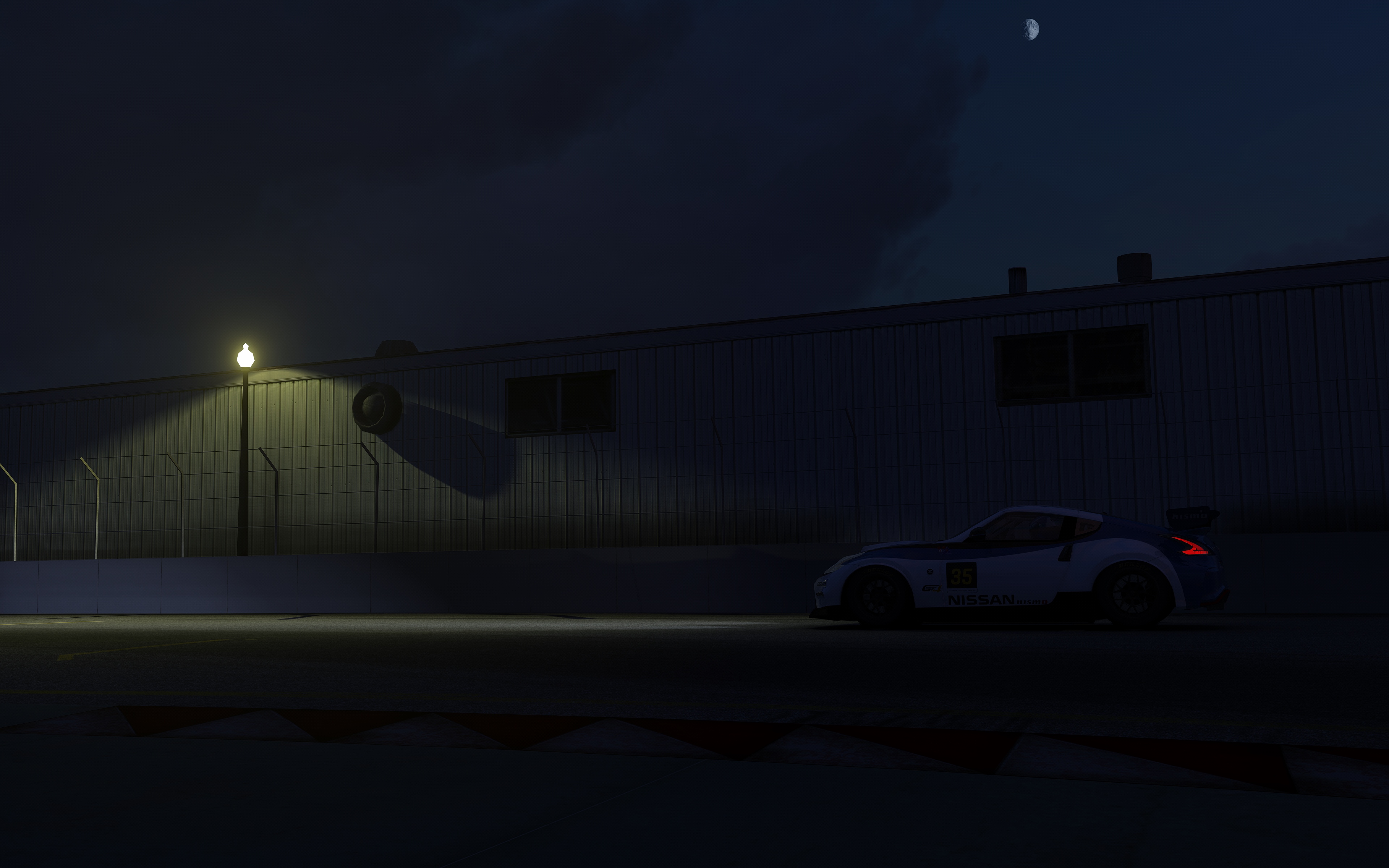

    67_ pitlane.jpg 70_ skidmarks.jpg 72_tirewalls.jpg Screenshot_bo_caterham_academy_gp3r_trois_rivieres_21-1-121-8-42-42.jpg Screenshot_gt4_nissan_370z_gp3r_trois_rivieres_21-1-121-14-42-41.jpg

    Last edited: Feb 21, 2021
    Martin Dupuis, luchian and Tom 00 like this.
  19. Leonardo Ratafia

    Leonardo Ratafia Member

    Joined:
    Aug 31, 2015
    Messages:
    68
    Likes Received:
    36

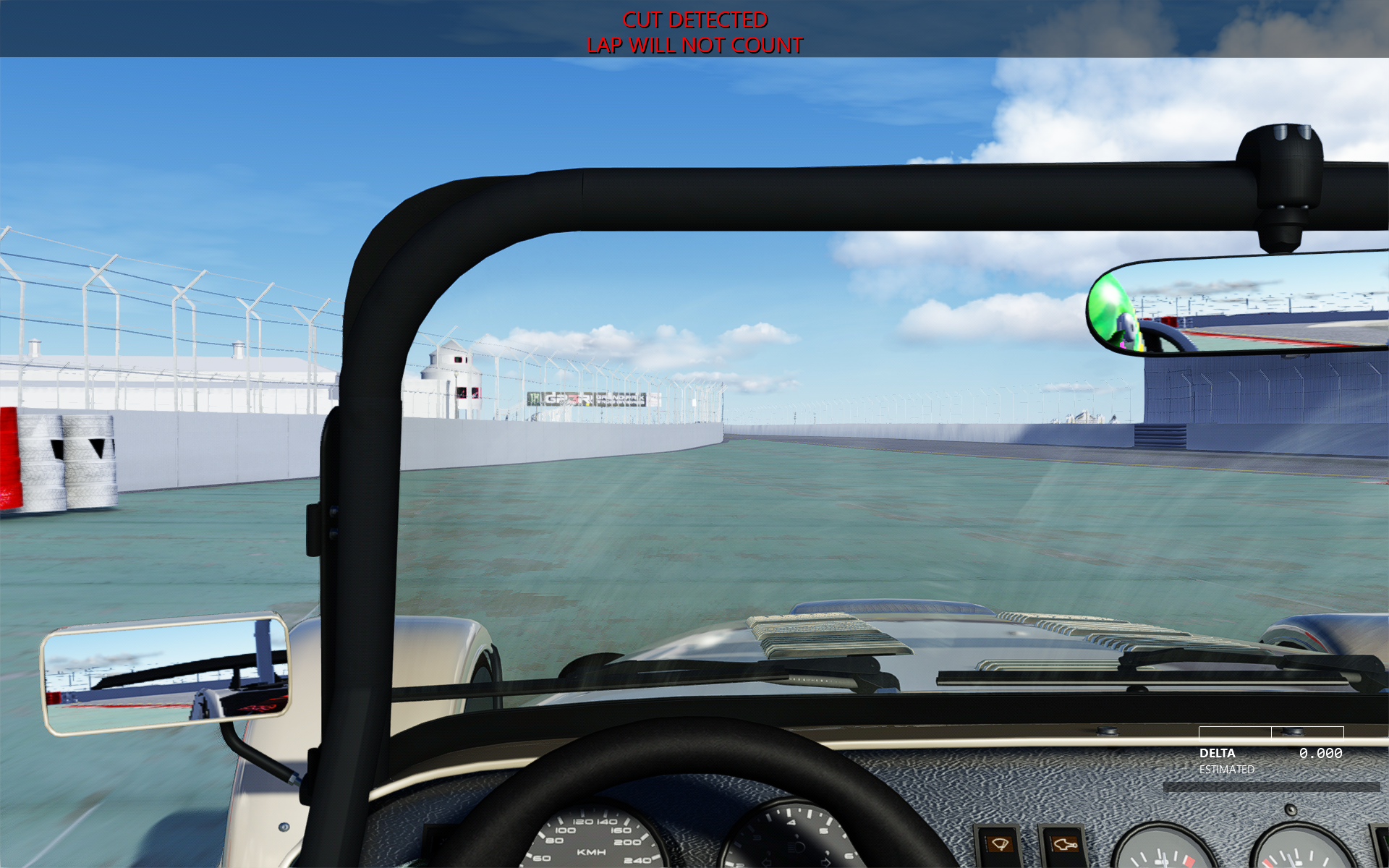

    will you make that area "time penalty " and remove the invisible wall later?

  20. maruto

    maruto Member

    Joined:
    Apr 28, 2020
    Messages:
    64
    Likes Received:
    77
    i removed the invisible wall on villeneuve corner and the green cement area has it's own surface attribution in the surface .ini: named 1VILLENEUVE_...

    [SURFACE_8]
    KEY=VILLENEUVE
    FRICTION=0.98
    DAMPING=0
    WAV=
    WAV_PITCH=0
    FF_EFFECT=0.8
    DIRT_ADDITIVE=1

    BLACK_FLAG_TIME=1
    IS_VALID_TRACK=0

    SIN_HEIGHT=0
    SIN_LENGTH=0
    IS_PITLANE=0
    VIBRATION_GAIN=0.1
    VIBRATION_LENGTH=1.5


    then, i'm not sure about depailler corner, i saw many cars in videos using the whole aera behind the kerbs, i'll have to ask if that aera is penalty too..

    what aera are you talking about? if it is still there on villeneuve, maybe try clean install?

    Last edited: Feb 22, 2021
    Leonardo Ratafia likes this.
