W.I.P. Motorsport Arena Oschersleben (aerial LiDAR scratch made)

Discussion in 'Tracks' started by AccAkut, Apr 25, 2021.

  1. AccAkut

    AccAkut Active Member

    Joined:
    Sep 4, 2017
    Messages:
    112
    Likes Received:
    84
    So some will know I've been tinkering on that airport track for the last year already, but I recently started new project I had on my mind for a while now. Probably good to learn more about real tracks before going further with my fantasy one.

    All Oschersleben variants available for AC on the net currently find their roots in a Race07 rip, meaning the base structure of the whole thing was made for ISI engine (with much too many separate textures/materials for everything), the layout is a bit off especially in the last corner, and most of all elevation and camber is just all wrong.
    [​IMG]
    the rest of it is also just... weird in places. I mean why does the pit building have these steps in it?
    [​IMG]
    I've been at the track a few times, it's like an hour from where I live... didn't see any steps (the more you look at it the more wrong you find, most based on a wrong understanding of the elevation situation of the track)

    So I start of with this, official (free) DOM2 data from the state of Sachsen-Anhalt.
    [​IMG]

    this is what I have ingame right now:
    [​IMG]
    useable, driveable. The scan data isn't baked into anything yet, if I learn to use it better I can always import a better one (as this for now is a straight export from cloud compare)

    [​IMG]
    early work on the assets has started. I'll also use some I've made for other older projects (trees, porta potties, low poly cars, takeaway trailers etc). Nothing from the old simbin rip will be used.

    anyway, this is what I have for now. I may update from time to time

  2. JrC

    JrC Active Member

    Joined:
    Feb 2, 2021
    Messages:
    166
    Likes Received:
    104
    Location:
    Canada
    Looks great!

    AccAkut likes this.
  3. Gunnar333

    Gunnar333 Well-Known Member

    Joined:
    Aug 5, 2017
    Messages:
    270
    Likes Received:
    559
    Location:
    Germany
    You can also try to import google earth data.
    It's a great resource to get the correct height for buildings, trees and other larger track objects.

    AccAkut likes this.
  4. Johnr777

    Johnr777 Moderator

    Joined:
    Jul 26, 2017
    Messages:
    654
    Likes Received:
    439
    Not showing any 3D objects for that town

  5. Gunnar333

    Gunnar333 Well-Known Member

    Joined:
    Aug 5, 2017
    Messages:
    270
    Likes Received:
    559
    Location:
    Germany
    Ah yes, you're right, I must have mixed this up somehow.

  6. AccAkut

    AccAkut Active Member

    Joined:
    Sep 4, 2017
    Messages:
    112
    Likes Received:
    84
    as the whole track is sorta in a bowl, you can't see very far in any direction anyway (has the added effect of acoustics being great for spectators)

    here's a friend on a track day:

  7. AccAkut

    AccAkut Active Member

    Joined:
    Sep 4, 2017
    Messages:
    112
    Likes Received:
    84
  8. Johnr777

    Johnr777 Moderator

    Joined:
    Jul 26, 2017
    Messages:
    654
    Likes Received:
    439
    Looks finished, I dont see what else needs to be done :D

    Gunnar333 likes this.
  9. AccAkut

    AccAkut Active Member

    Joined:
    Sep 4, 2017
    Messages:
    112
    Likes Received:
    84

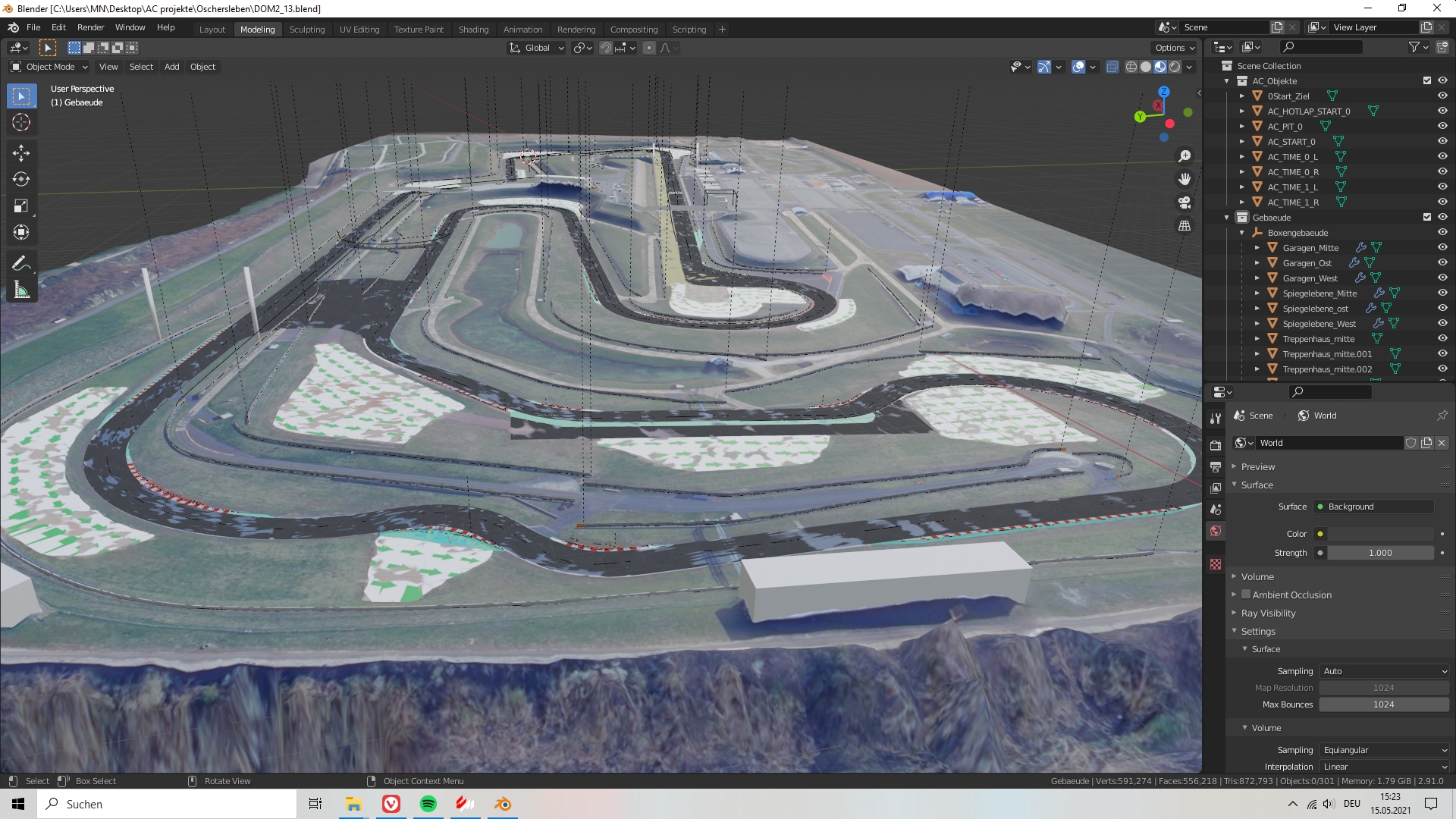

    green arrows are to check something about UV orientation. I had it inverting in the middle of some gravel pits and it messed with the used normal map for the gravel
    the blueish stuff on the track is just the ground z-fighting at this zoom level. The track and everything shrinkwrapped to the ground is 0.1 meter above it. In the end I'll probably cut everything out that won't be visible anyway. But I'm not 100% sure yet where I'll use new ground mesh and where I'll keep the satellite image..maybe new stuff up to the walls/guardrails only.

    https://i.imgur.com/bDPu2Oz.mp4

  10. JrC

    JrC Active Member

    Joined:
    Feb 2, 2021
    Messages:
    166
    Likes Received:
    104
    Location:
    Canada
    Looks awesome... thanks for sharing the workflow... I think that shrinkwrap tool is exactly what Ive been looking for.. Ill go read up on that. Also how you import the image to a plane to build it. Very helpful!

    AccAkut likes this.
  11. AccAkut

    AccAkut Active Member

    Joined:
    Sep 4, 2017
    Messages:
    112
    Likes Received:
    84
    that one had a few more steps. The huge satellite ortho I had was square, much bigger than needed for the track. And the track is sorta at an angle so I couldn't just cut it up. I actually put the full ortho on a plane and than did a texture bake onto the actual rectangalur (2:1) second plane that I shrinkwrapped over the Lidar data, saving on texture space (I think could actually combine this with an AO bake, but as I put stuff in places that already have real shadows on the photo, I don't think I'll do that).

    I learned the shrinkwrap tricks from Lilski mostly, besides wrapping objects to the Lidar date I use it basically everywhere two meshes need to fit up with each other perfectly, like the curbs with the track. Put the needed vertices into a vertex group, shrinkwrap that group to whatever, boom.

    fughettaboutit and JrC like this.
  12. JrC

    JrC Active Member

    Joined:
    Feb 2, 2021
    Messages:
    166
    Likes Received:
    104
    Location:
    Canada
    that is a tool I need... badly... exactly for the groove as ive been trying to do it by hand...

    As for the first part... i understand about half of that :)
    but its helpful and Ill figure it out.

  13. AccAkut

    AccAkut Active Member

    Joined:
    Sep 4, 2017
    Messages:
    112
    Likes Received:
    84
    it's no extra tool, it's one of the basic modifiers Blender comes with ;)

    JrC likes this.
  14. luchian

    luchian Administrator Staff Member Pilot RLR

    Joined:
    Jun 3, 2014
    Messages:
    2,913
    Likes Received:
    1,414
    Are you using the photo as a reference? Nice trick having it in that angle :nerd:

  15. AccAkut

    AccAkut Active Member

    Joined:
    Sep 4, 2017
    Messages:
    112
    Likes Received:
    84

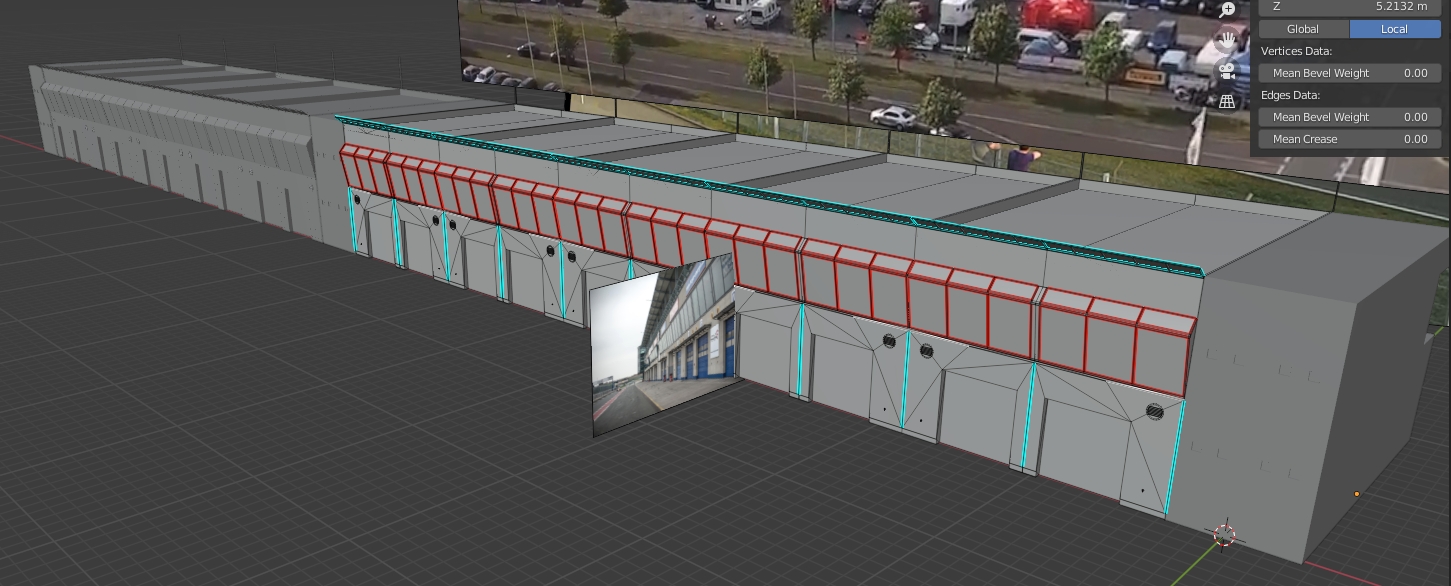

    on the pitbuilding screen? Yeah, all sorts of photos in there :ROFLMAO: but really mostly just so I don't have to tab to reference, I only got a single screen.
    I tried aligning it in that photo but it's sorta too distorted to be useful. "Visually calculating" the building height from that stupid medical car next to it worked out fine I think, the scan data has the absolute top layer (solar cells) which I can again match up against.

    This evening I baked some tire walls, off three year old project files in which I made them much much too detailed :rolleyes:
    still have to see if they are good enough ingame. But you're never really close to any while driving.

  16. luchian

    luchian Administrator Staff Member Pilot RLR

    Joined:
    Jun 3, 2014
    Messages:
    2,913
    Likes Received:
    1,414
    Damn, you are still working, against the odds :lol:.

    I like the 3 stacks of tires on the left :D (don't care how high poly they are)

  17. JrC

    JrC Active Member

    Joined:
    Feb 2, 2021
    Messages:
    166
    Likes Received:
    104
    Location:
    Canada
    I had heard of it but never tried it... thanks for the help... got the groove aligned much better.
    Appreciate it as that was a pain in the butt...

    AccAkut likes this.
  18. AccAkut

    AccAkut Active Member

    Joined:
    Sep 4, 2017
    Messages:
    112
    Likes Received:
    84

    graveltraps are really messed up still. But the grass looks fine

    Gunnar333 likes this.
