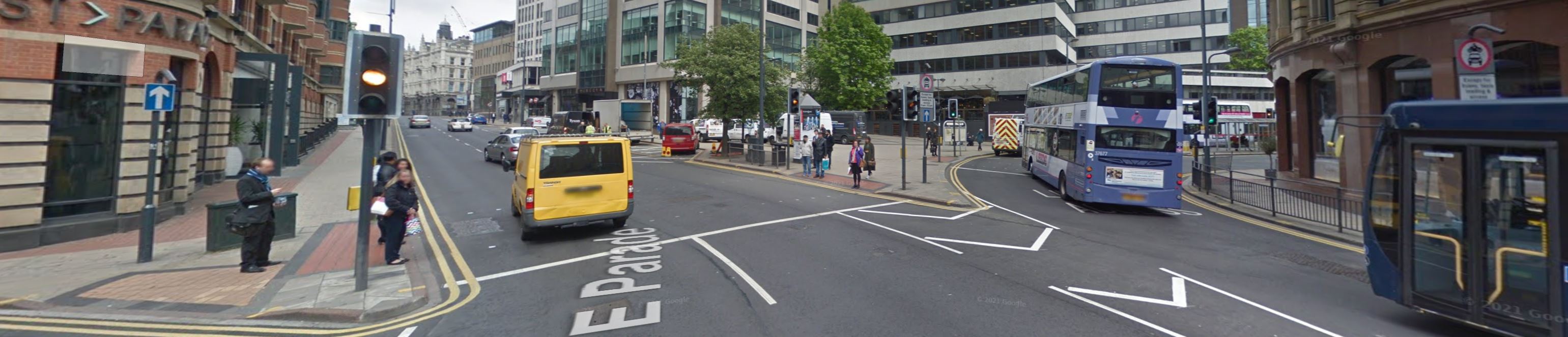

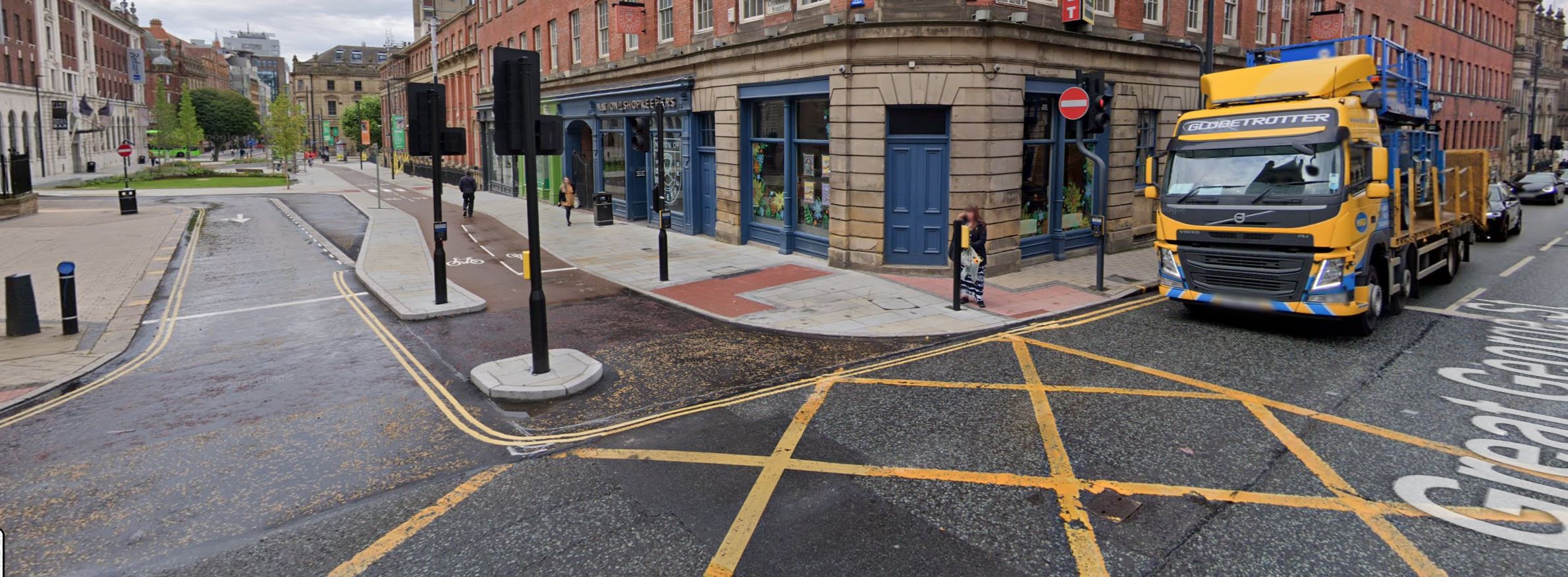

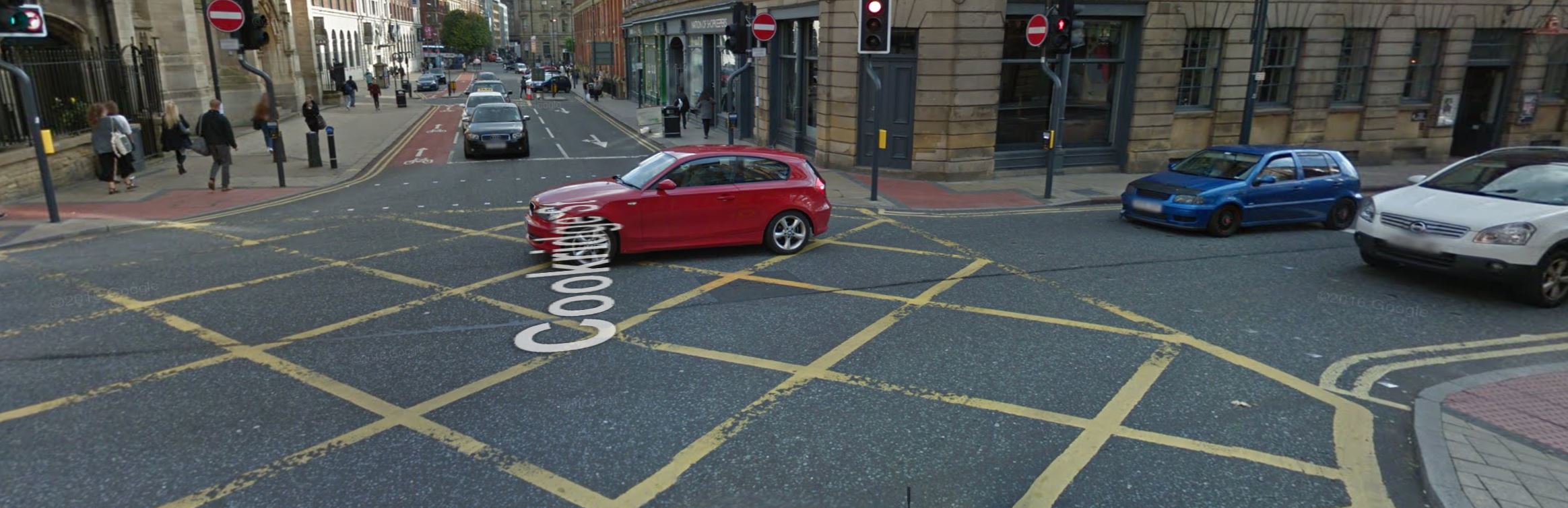

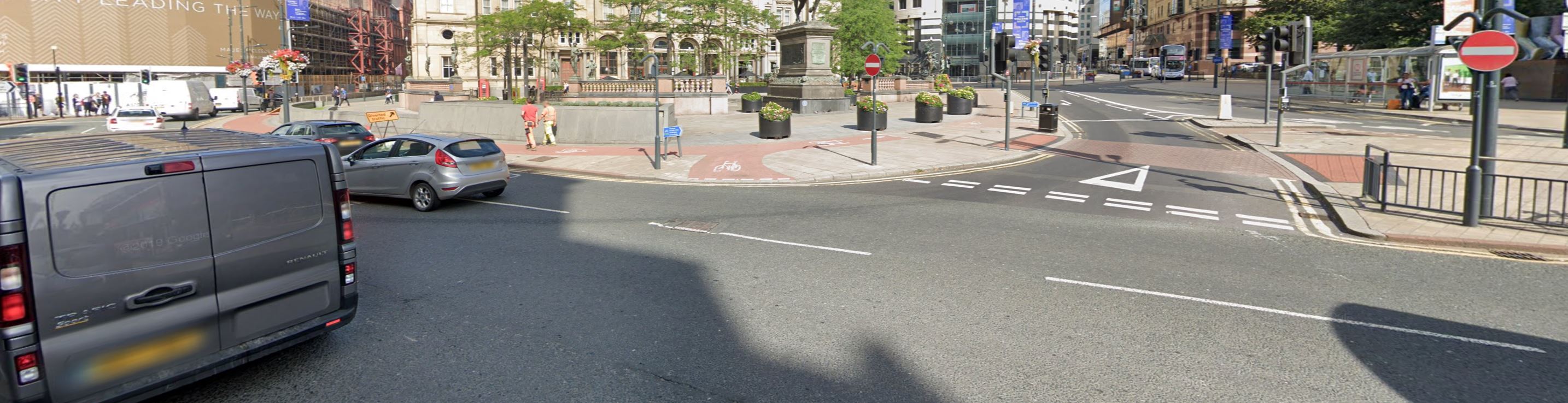

    Sadly lots of the images are missing but I've uploaded a few of them here in a sorta sensible order.

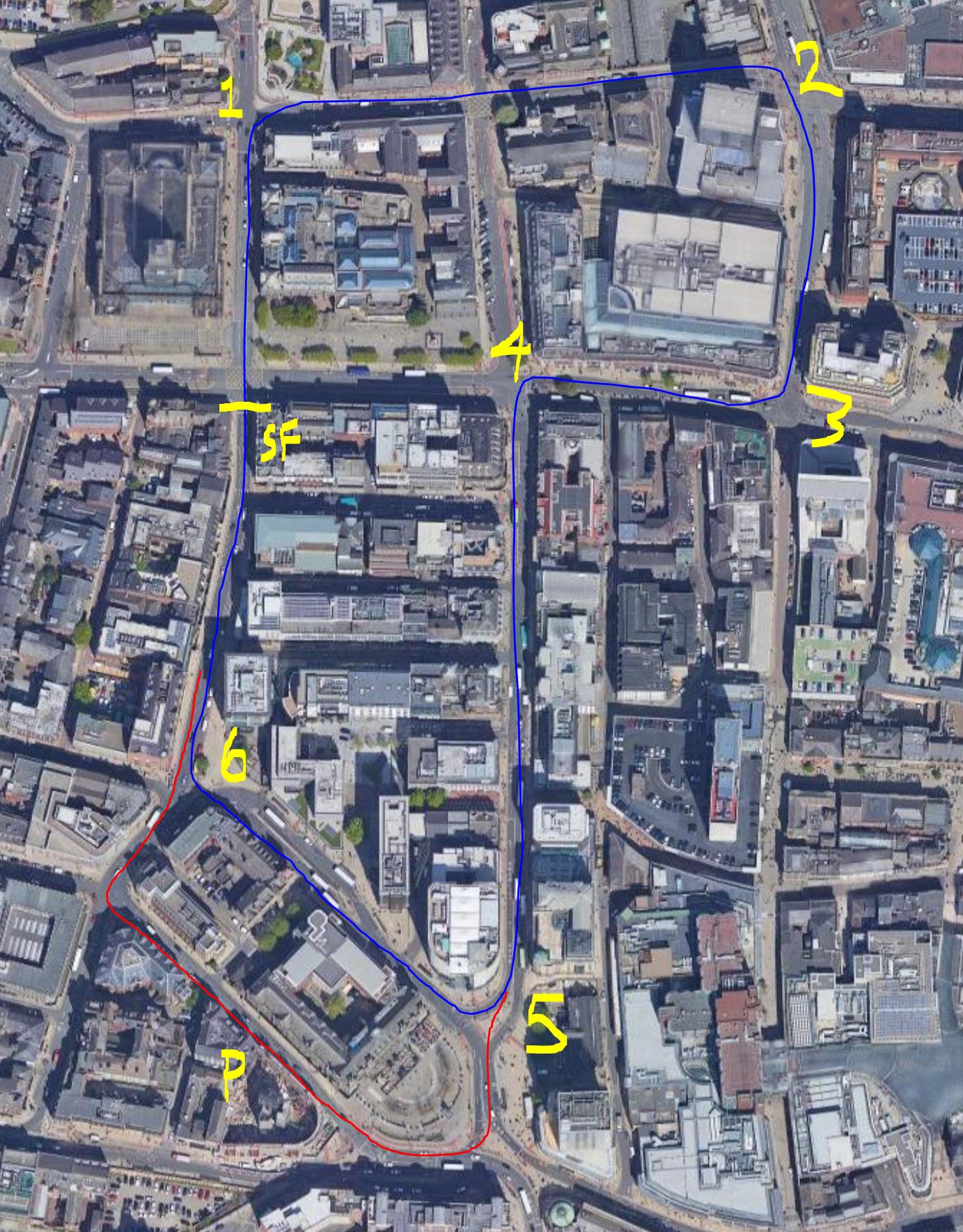

    Initial layout was literally the loop right at the far left including the pits. But it was like 15s a lap in an F1 car. This one was a bit longer, but still a bit dull.

    So it ended up that this was probably the best compromise on workload and an interesting layout and length.

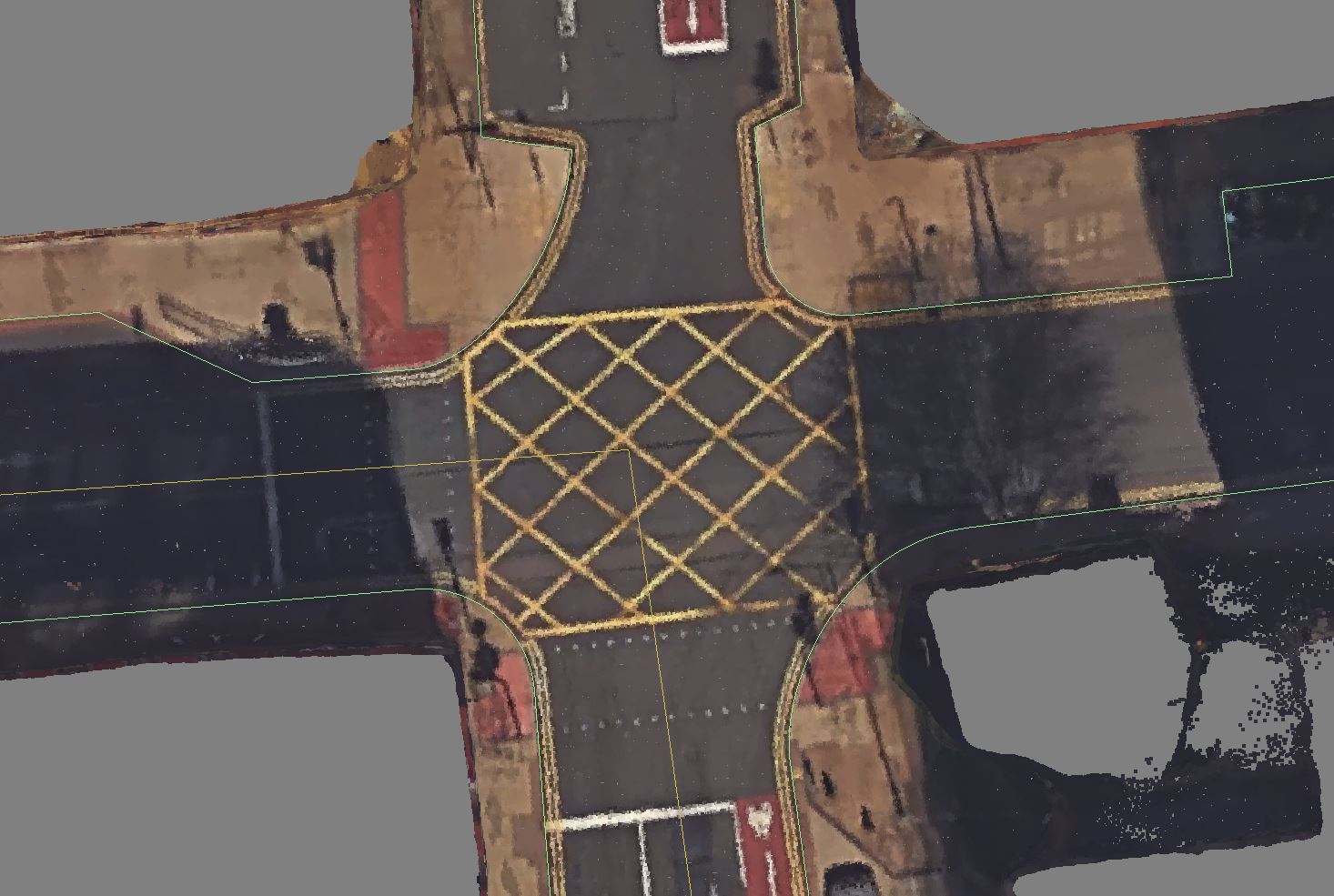

    Splines drawn over the photogrammetry re-captured HD G3D point cloud data outlining the asphalt.

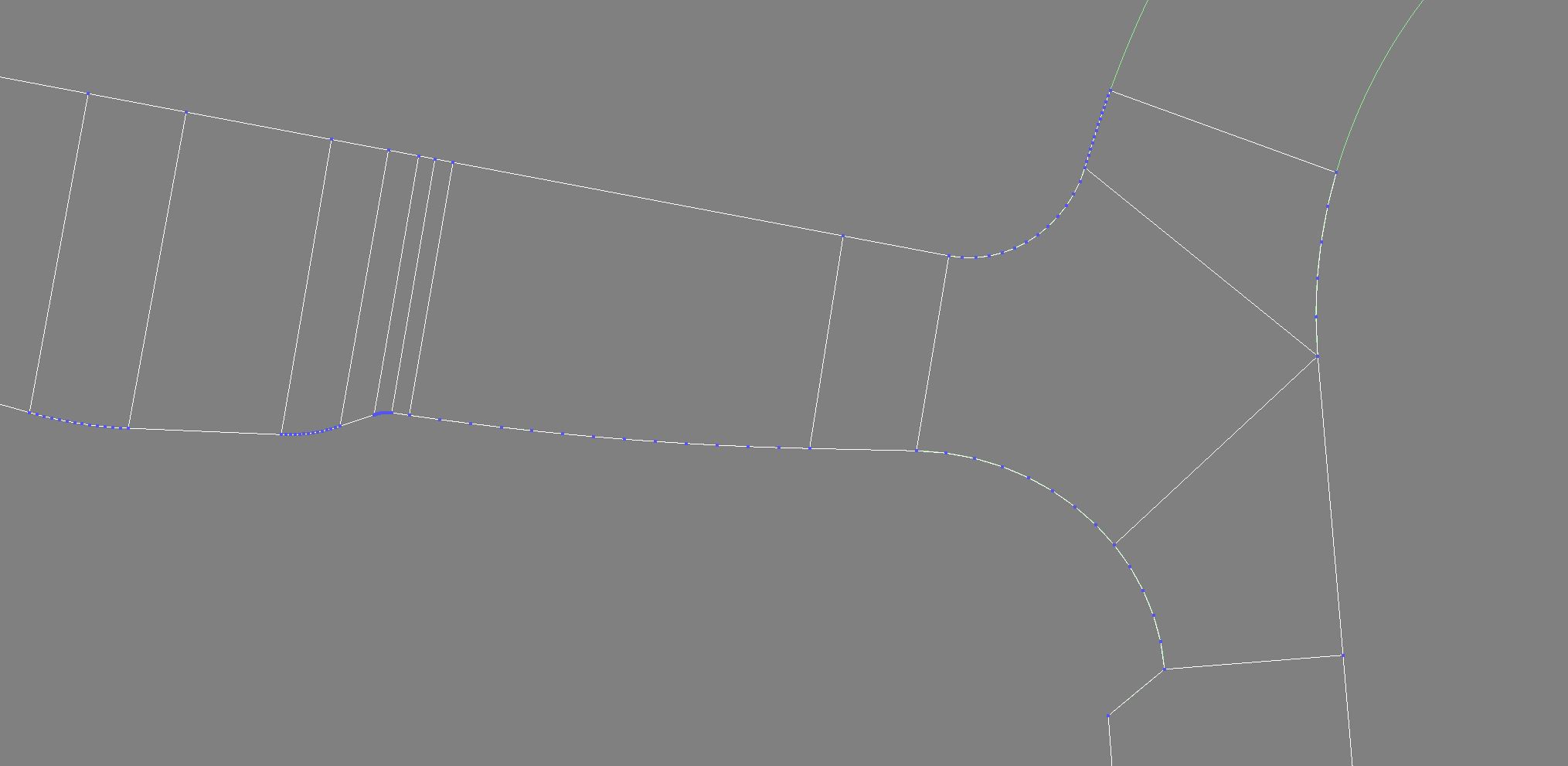

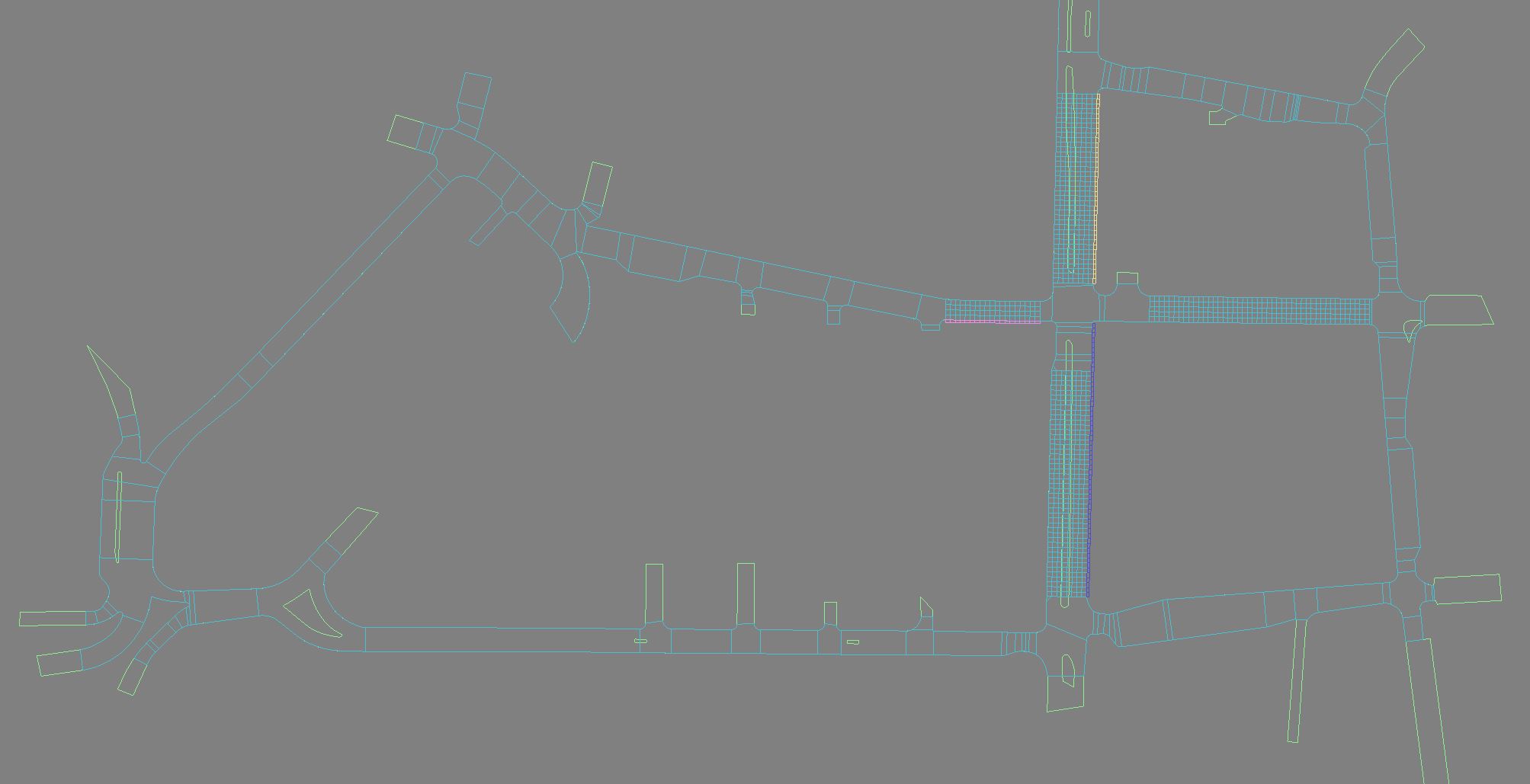

    Splines all finished and starting to fill in with a roughly 1m quad mesh.

    Not the best way to fill in it all in in hindsight. More prep work on a copy of the base splines might have been better (cutting and normalising chunks of spline to near 1m intervals)
    There are swings and roundabouts to every workflow on a track. Cutting and normalising might take almost as much time as doing things manually, and given the cut and normalised splines are 'binned' afterwards it is also a waste of time if you later go back and tweak the base splines... the cut and normalised bits need remaking and merging again etc etc.

    Almost done.

    Close up of a bit. Mmmm, flowing mesh. Nice to have uniformity for when it gets conformed to Z data for the road crown, cambers, extruding out for pavements and so on.

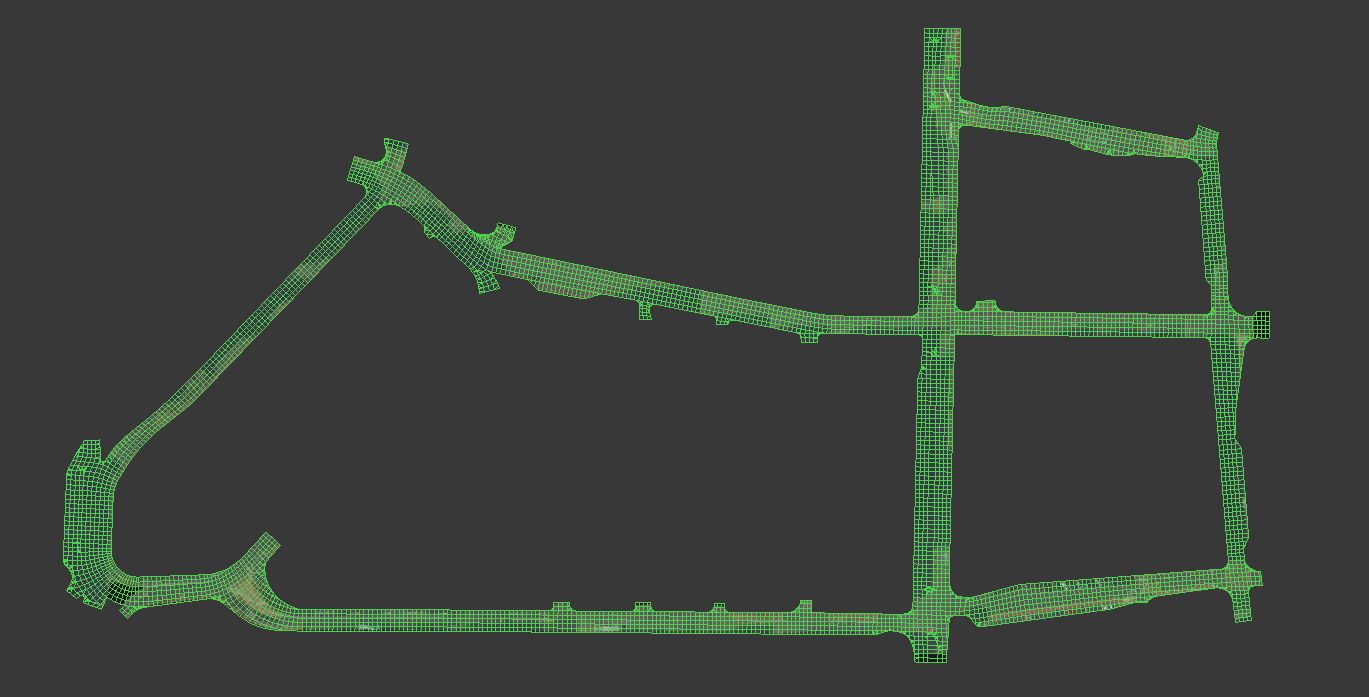

    Here's a shot of the final road surface mesh.

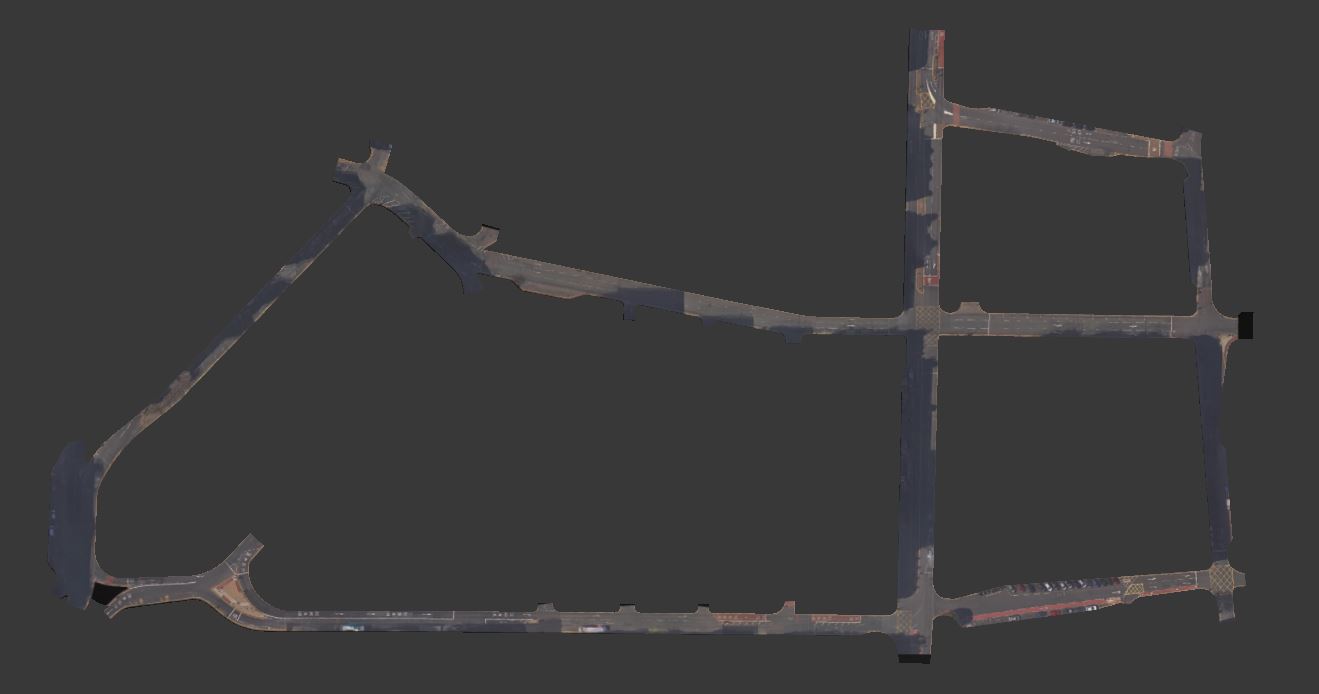

    And one without the wireframe. Here I've just done a 4096x2048 px planar texture over the entire road and then baked the rgb from the point clouds of the G3D data and used it as a texture just to give me an idea of where things are etc.
    This is the version in Free Racer (not in AC yet) that I can drive around on just to check how smooth and correct things feel so far.

    barf, garyjpaterson and luchian like this.
  2. Mr Whippy

    Mr Whippy Active Member

    Joined:
    Jan 18, 2016
    Messages:
    175
    Likes Received:
    127

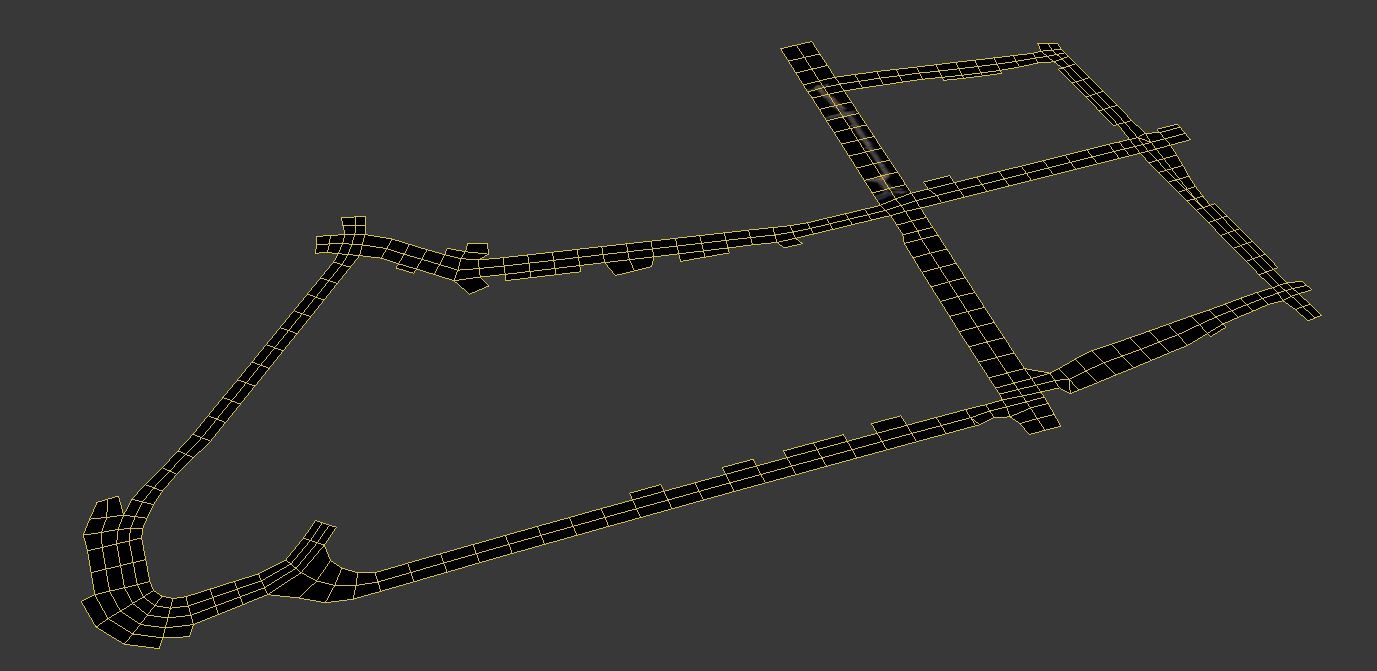

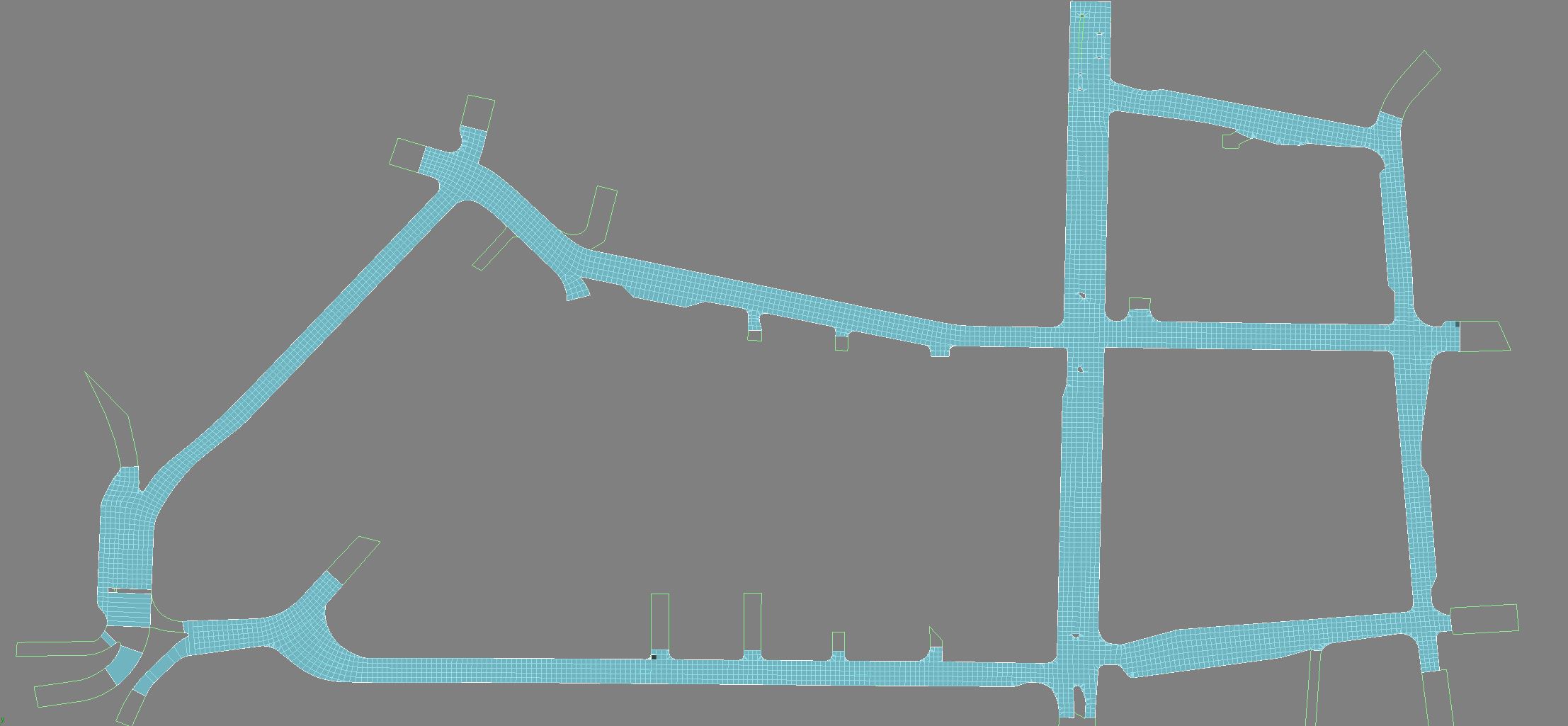

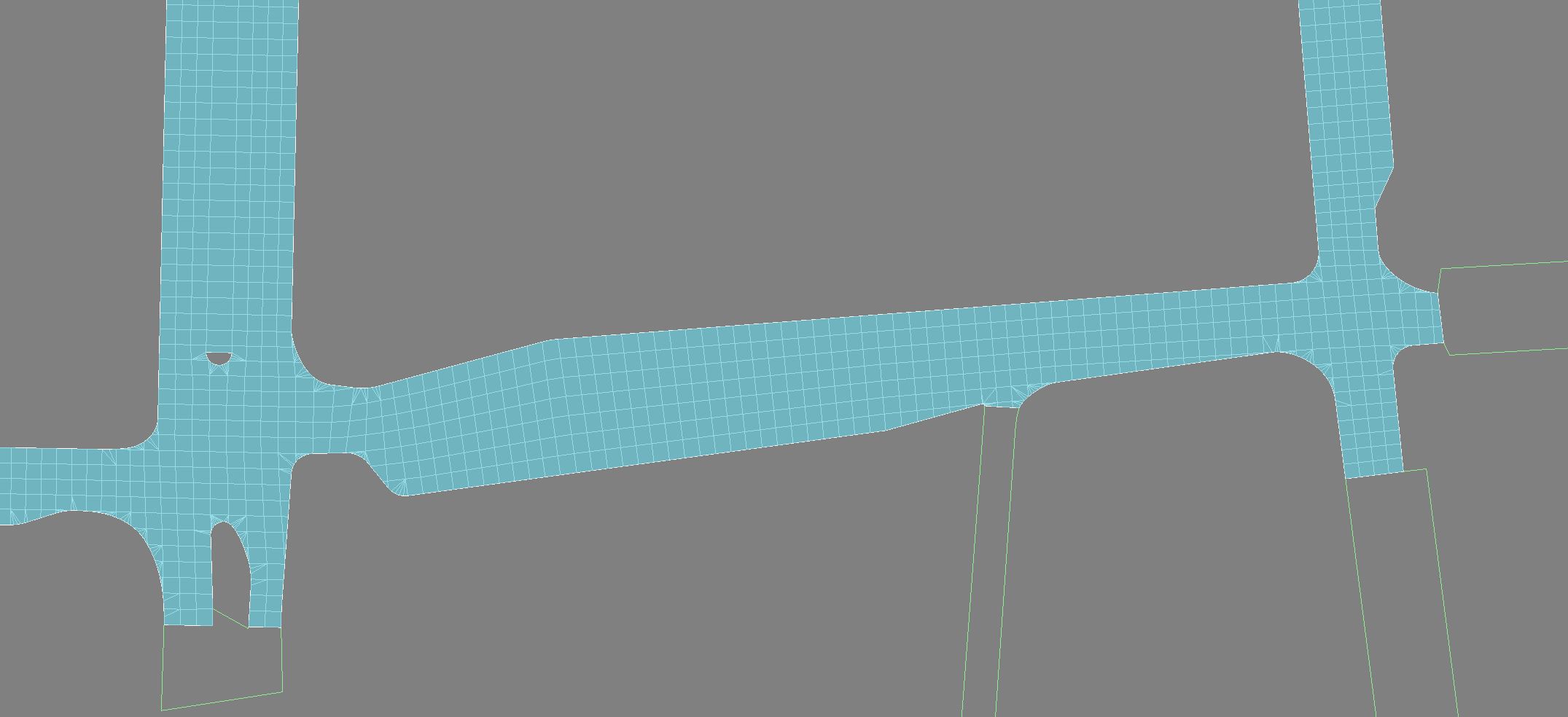

    Here is the conforming mesh. It's lower density at this level, and has just enough detail to capture the camber/crown and hills/slopes
    This can then be conformed to my point cloud data using a statistical approach (multi-sampling, area sampling etc, so each vertex gets a good average of the location it 'lands' when conforming)

    The mesh is then sub-divided to add smoothness and detail.

    The visual mesh (1m grid) is then conformed to that conforming mesh.

    I can also play with conforming the 1m grid to the point cloud data (as bumpy as it turns out due to noise), and then morph the two meshes together (ie, use vertex paint to say where I want it smoother or the rougher data, or use a fixed blend amount etc)

    I can test all these quite quickly until I'm happy with the way it drives and looks. I think something like 20% noise at the sides, and more like 40% noise in the middle was feeling and looking natural... so all using real data, but picking and choosing the right amount for it to look and feel 'right' (right is so subjective without a HQ laser scan and even WITH a HQ scan :D )

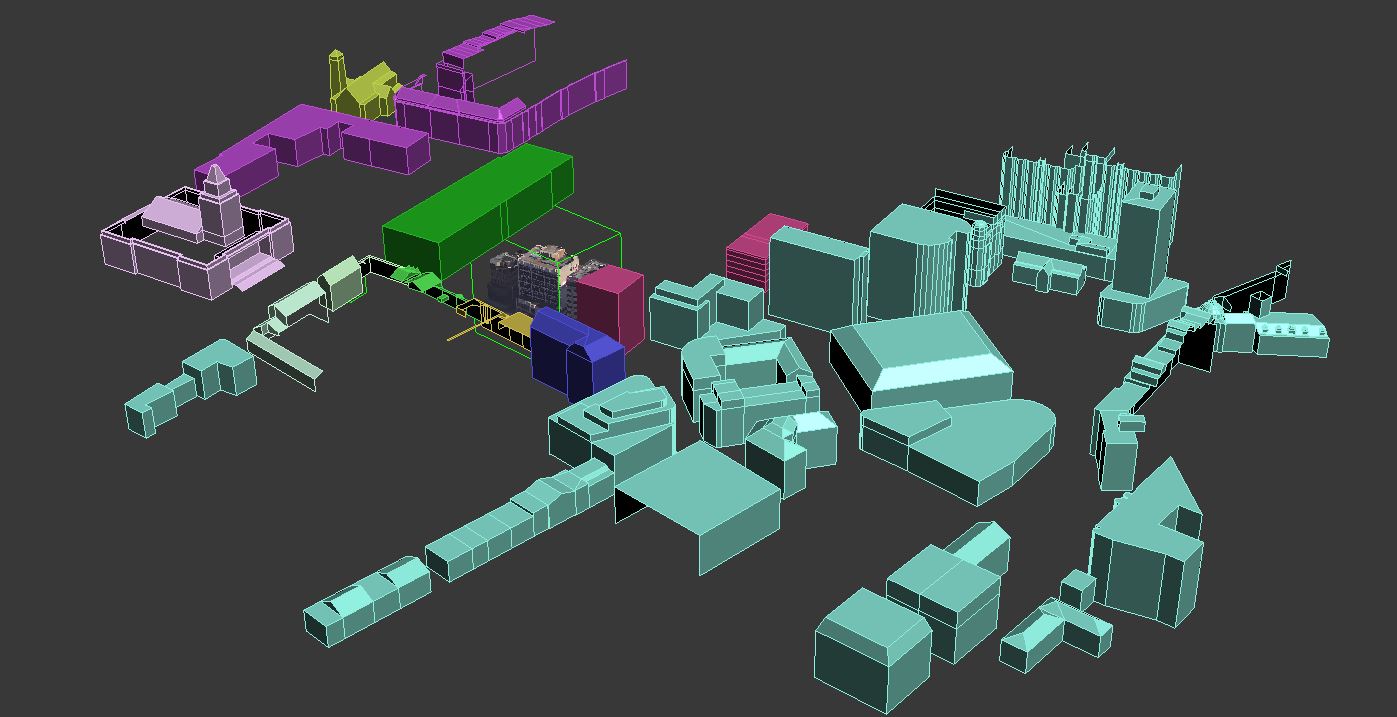

    Buildings so far.

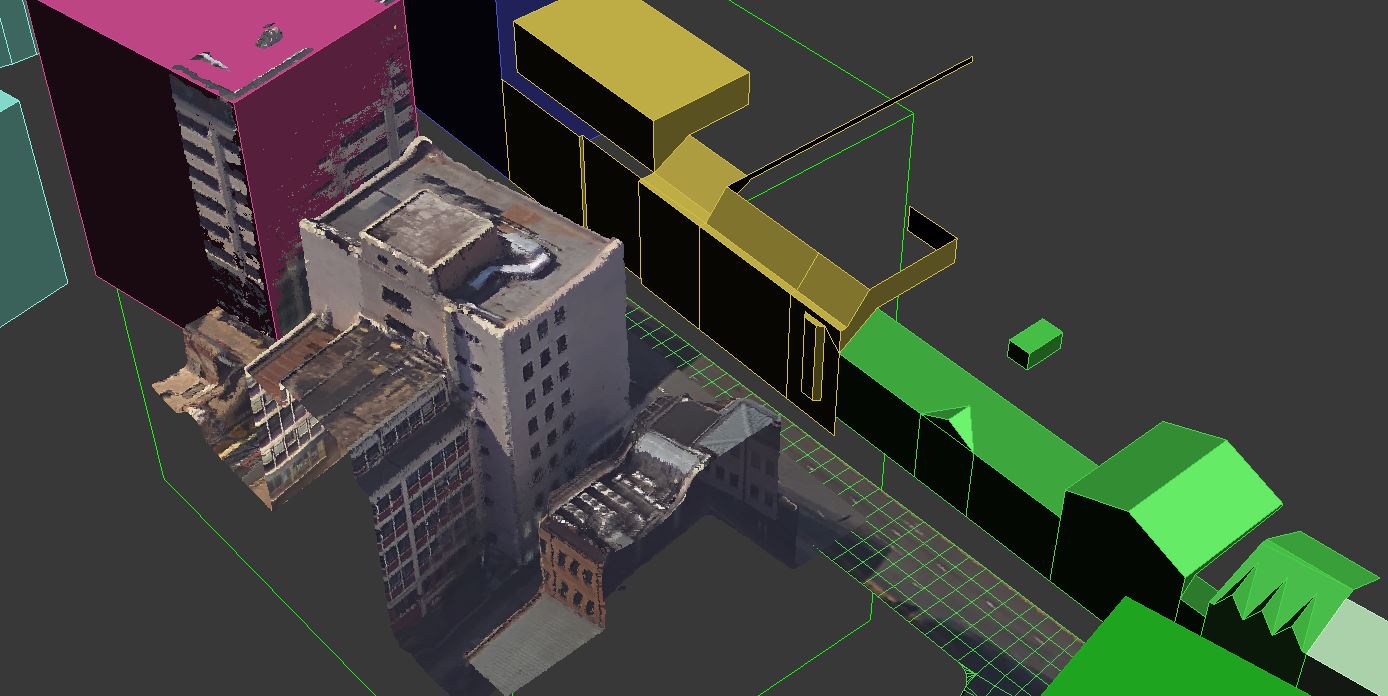

    Roughing in buildings from the HQ point cloud (from G3D images)
    As you can see the data is pretty good but not perfect.
    A lot of the time I'm still referencing the 2D HQ aerial images panned around to fit the right location, and then getting the roof line outline perfect, or exact proportions of things... then using the 3D data to get the Z info correct and the general positioning.


    Soooo much work to do.

    Main tasks are just keep roughing out 'correct' but not heavily detailed building meshes. Get all those in. Then kerbs/pavements up to the buildings so the track feels water tight.

    Then I can start thinking about track layouts and all that stuff and make it race-able, refine that side of things until it feels like a solid quality race course.

    Then hopefully interested parties can pick up buildings and up-res/texture them and it can become a combined effort (assuming there is interest) in finishing it up as a HQ city race course.

    Then all the props, trees, etc etc.
