SOLVED Working track lights

Discussion in 'Tracks' started by luchian, Feb 1, 2015.

  1. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    3,013
    Likes Received:
    1,497
    AC member NightEye (<thank you) gives a solution for working track lights. As I always seem to stumble upon the original post, and then forget it until I ask myself the question again, here it is as well:

    Create a 'semaphore.ini' in your data folder.

    Code:
    [GROUPS]
    DISQUALIFIED=0
    READY=3
    START=1

    [COLOR]
    INTENSITY=2.2

    [OBJECT_0]
    TYPE=1           ; 0=DISQUALIFIED 1=READY 2=START
    NAME=AC_SEMAPHORE_RED
    ORDER=0          ; it's the first of its set to be turned on

    [OBJECT_1]
    TYPE=1           ; 0=DISQUALIFIED 1=READY 2=START
    NAME=AC_SEMAPHORE_RED
    ORDER=1          ; it's the first of its set to be turned on

    [OBJECT_1]
    TYPE=1           ; 0=DISQUALIFIED 1=READY 2=START
    NAME=AC_SEMAPHORE_RED
    ORDER=2          ; it's the first of its set to be turned on

    [OBJECT_2]
    TYPE=2           ; 0=DISQUALIFIED 1=READY 2=START
    NAME=AC_SEMAPHORE_GREEN
    ORDER=0          ; it's the first of its set to be turned on

    This will get you three red lights for 'ready (TYPE=1)' (first 1, then another one, and then another one; see ORDER=X) and green for 'start' (TYPE=2).
    In order for any lights to show up you create an object and name it AC_SEMAPHORE_RED/_GREEN (I think any name would do the job as long as they correspond to NAME=X).


    Personally, I didn't yet tried it, so let us know about your results :).

    DiME, benobro, MacArnu and 1 other person like this.
  2. MacArnu

    MacArnu New Member

    Joined:
    Dec 25, 2014
    Messages:
    7
    Likes Received:
    7
    Thought I'd share a semaphore system where I had 3 red lights lit up in a row, and then 3 green lights lit up at once on race start. The .ini file looks as following:
    Code:
    [GROUPS]
    DISQUALIFIED=1
    READY=3
    START=3

    [COLOR]
    INTENSITY=2.2

    [OBJECT_0]
    TYPE=1           ; 0=DISQUALIFIED 1=READY 2=START
    NAME=Semaphore_Red1
    ORDER=0          ; it's the first of its set to be turned on

    [OBJECT_1]
    TYPE=1
    NAME=Semaphore_Red2
    ORDER=1

    [OBJECT_2]
    TYPE=1
    NAME=Semaphore_Red3
    ORDER=2

    [OBJECT_3]
    TYPE=2
    NAME=Semaphore_Green1
    ORDER=0

    [OBJECT_4]
    TYPE=2
    NAME=Semaphore_Green2
    ORDER=0

    [OBJECT_5]
    TYPE=2
    NAME=Semaphore_Green3
    ORDER=0


    luchian and Pixelchaser like this.
  3. MisterWink

    MisterWink Member

    Joined:
    Jul 14, 2014
    Messages:
    51
    Likes Received:
    9
    wooa cool .....is this only for . start light ? or for track lights and lamps ^^

  4. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    3,013
    Likes Received:
    1,497
    This is intended to be used for start lights.
    If however you wish to use it other lights/lamps you probably can, but they will be linked to the ready/start position (meaning they will be in state "red" in ready period and then switch to "green" state after race start).

  5. Pelukas

    Pelukas New Member

    Joined:
    Nov 16, 2016
    Messages:
    23
    Likes Received:
    3
    Lo siento, estoy hablando de la línea de boxes, hace el trabajo ini? O es una ini separada.
    Bandera azul claro o igual? Otra línea de ini? .
    Ejemplo
    TYPE=1
    NAME = AC_SEMAPHORE_BLUE.

  6. DiME

    DiME New Member

    Joined:
    Apr 14, 2022
    Messages:
    17
    Likes Received:
    0
    I tried every possible combination with lettering and ini files, nothing seems to work.
    The code MacArnu posted worked, well.. (kind of)
    The problem I am facing is that the light objects are always visible, they just get a bit brighter when the race starts,
    I thought they would be completely transparent until they are turned on to give illusion of the light turning on?

    Also what is startinglights.ini all about? saw it mentioned once in a guide but never here on the threads.

  7. fughettaboutit

    fughettaboutit aka leBluem

    Joined:
    Jul 21, 2014
    Messages:
    1,137
    Likes Received:
    383

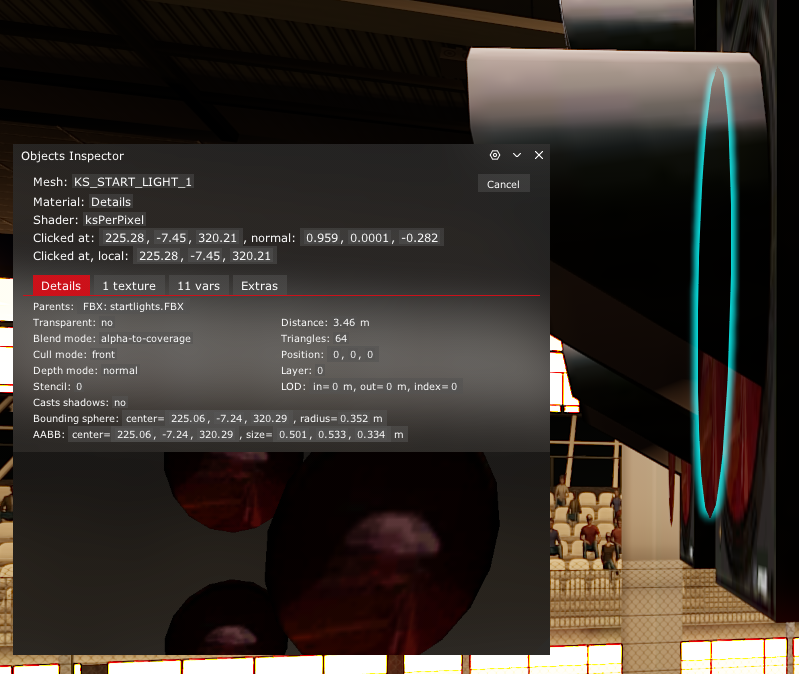

    yes you make startlights gray and dark at creation time in ksEditor and in the texture

    the color/glow will come from AC, when using
    KS_START_LIGHT_... -> startinglights.ini
    using any other name ->semaphore.ini

    Last edited: Jun 5, 2024
  8. fughettaboutit

    fughettaboutit aka leBluem

    Joined:
    Jul 21, 2014
    Messages:
    1,137
    Likes Received:
    383
    red bull ring: lights are a thing in front of the normal starting lights (some make it slightly transparent, but not here)

    Last edited: Jun 5, 2024
