SOLVED Track scale wrong

Discussion in 'Tracks' started by charlesb, Mar 24, 2020.

  1. charlesb

    charlesb New Member

    Joined:
    Mar 24, 2020
    Messages:
    5
    Likes Received:
    1
    Hello,

    I have read about solutions for this issue but somehow cant make it work

    the track its way too big or way too small...and when i leave the scale in 1.0 it just doesnt load in AC

    Im uploading the model in BLENDER 2.8 if anybody can help me out.

    Thanks

    Last edited: Mar 26, 2020
  2. Prototype

    Prototype Well-Known Member

    Joined:
    Dec 24, 2018
    Messages:
    327
    Likes Received:
    583
    Location:
    JHB / SF
    Export at scale 0.01 from Blender.

  3. charlesb

    charlesb New Member

    Joined:
    Mar 24, 2020
    Messages:
    5
    Likes Received:
    1
    Thanks! but it didnt worked out.

    This time the AC couldnt even load the track with 0.01 scale.

    KSeditor shows reasonable scale, but once I save and run AC wont load my track. When I leave scale 1.0 it loads but HUGE.

    Any suggestions?

    Grazie


    Attached Files:

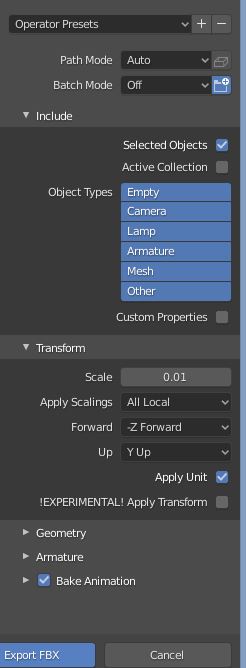

    • set.JPG
      File size:
      29.3 KB
      Views:
      14
  4. Prototype

    Prototype Well-Known Member

    Joined:
    Dec 24, 2018
    Messages:
    327
    Likes Received:
    583
    Location:
    JHB / SF
    [​IMG]
    If those setting don't work, its something else.
    Have you built objects to real world scale?

    luchian likes this.
  5. charlesb

    charlesb New Member

    Joined:
    Mar 24, 2020
    Messages:
    5
    Likes Received:
    1

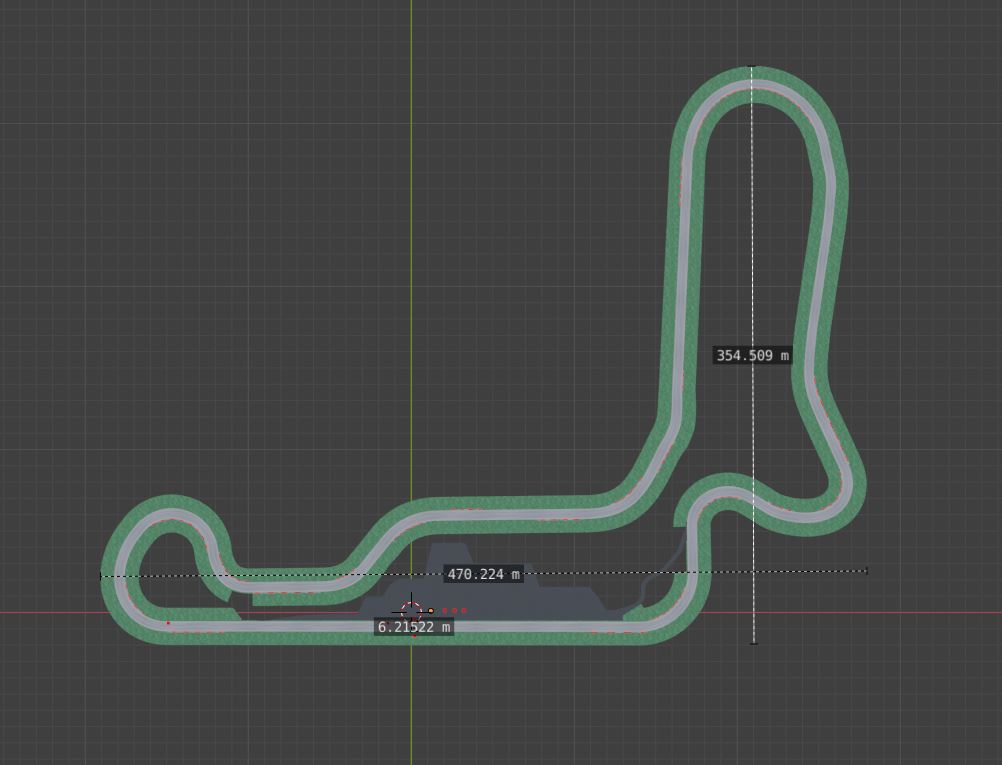

    YES, here's a screen.


    Attached Files:

    • sze.JPG
      File size:
      75.4 KB
      Views:
      13
  6. Prototype

    Prototype Well-Known Member

    Joined:
    Dec 24, 2018
    Messages:
    327
    Likes Received:
    583
    Location:
    JHB / SF
    Select all > A > then > CTRL A > [All transforms], and then export using the settings I shared - note only [ MESH ] export.

  7. charlesb

    charlesb New Member

    Joined:
    Mar 24, 2020
    Messages:
    5
    Likes Received:
    1
    THANK YOU. well the solution was:

    Exporting the track FBX as a miniature (with your setup) in order to leave scale 1:00

    It was all an issue with UNITS.

    luchian likes this.
  8. charlesb

    charlesb New Member

    Joined:
    Mar 24, 2020
    Messages:
    5
    Likes Received:
    1
    Seems Assetto recognizes small size track.

    If the track real extentents were 500m x 400m. Then assetto kn5 file needs to be 5m x 4m

    It worked like this for me

: Track, assetto, corsa
