Enable or disable a track mesh or object using CSP conditions?

Sorry me again!
I've been trying to find out a way to enable or disable a mesh or object in my track using CSP's conditions (such as time of day or year). I would imagine this might be possible?

By disable I mean remove/not render it at all (rather than just making it transparent), so that when it's disabled it won't affect the FPS. Is this possible? I'm still getting to grips with the amazing flexibility and functionality of CSP!

Thanks in advance!



Hey Dave

To disable a mesh via CSP, you need a tag like this:
[MESH_ADJUSTMENT_...]
MESHES = objectname
IS_RENDERABLE = 0

BUT, to bind it to a condition like time of day, you need this:
CONDITION = NIGHT_SHARP

And im pretty sure you cant bind MESH adjustments to that, only material Im afraid.



Thanks @Johnr777 . You're absolutely right. It works but only on re-loading the game, so also not on conditions. Never mind. Thanks for trying to help!



What are you trying to hide from the scenery?



Thanks John. I'm working on a track and mainly thinking of trying to hide a few objects at night that wouldn't realistically be there at that time of day, and add objects that would appear at night.

I suppose I could just make them transparent at night (would that work?), and make sure I use as few triangles as possible on the mesh to avoid significant FPS drop. I've not tried it yet though. Was just trying to optimise as much as possible.



Also, hope I don't sound too stupid asking this, but how do you oracles know about these settings (such as the IS_RENDERABLE = 0 you mentioned earlier). Is there documentation somewhere that I've missed? I thought I'd looked through the entire web!

Thanks again for your help!



Nah, a lot of it is somewhat documented in the patch’s github.

All the config lines for tracks are outlined here... https://github.com/ac-custom-shaders-patch/acc-extension-config/blob/master/_doc_config_tracks.ini

But don’t expect a lot of info



Awesome thanks!

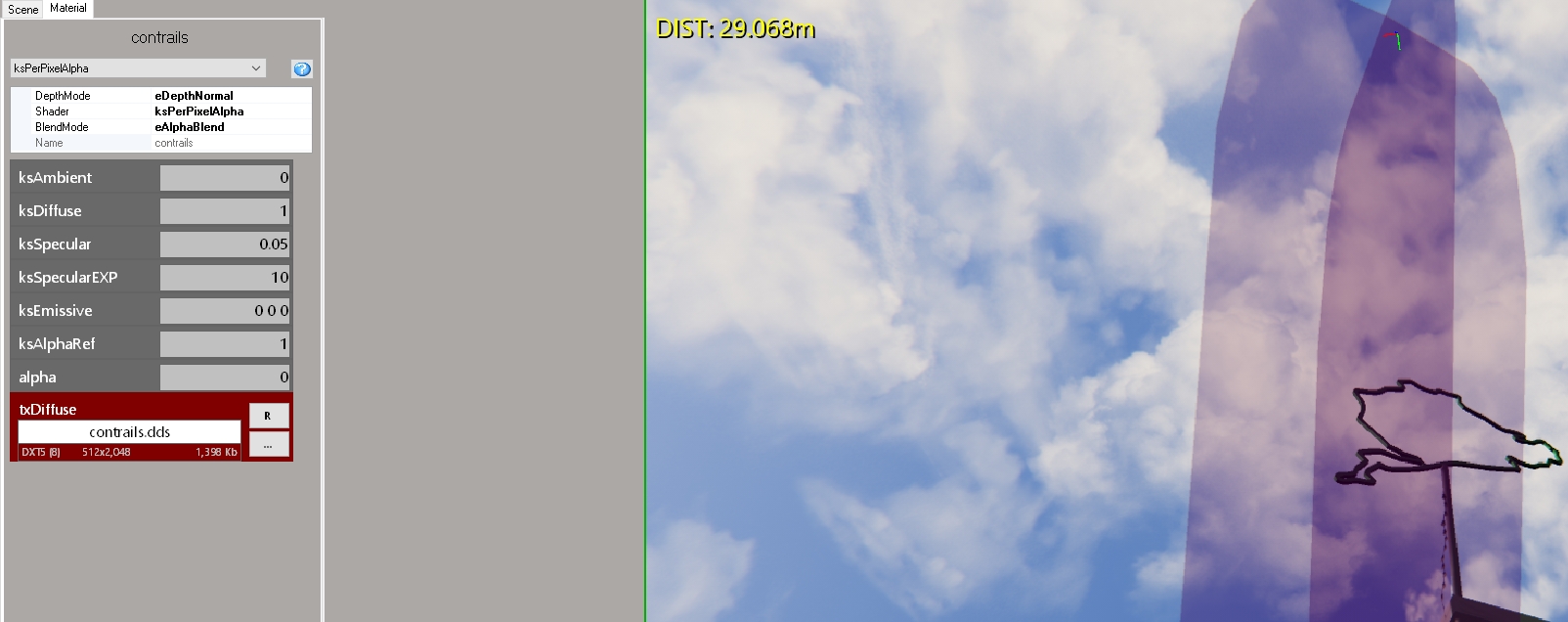

for ks_nordschleife i used shader ksPerPixelAlpha and change the "alpha"-value to >0 at night, maybe you could use it the other way around (but its still in the RenderPipeline i think, so not really what you want):

[INCLUDE]
INCLUDE=common/conditions.ini
...
[MATERIAL_ADJUSTMENT_66]
DESCRIPTION=make big sky flooder visible at night
MATERIALS=contrails
KEY_0=alpha
VALUE_0=0.01
VALUE_0_OFF=ORIGINAL
CONDITION=NIGHT_SMOOTH



;;;;;;;;;;; this you will probably not need:
[MATERIAL_ADJUSTMENT_68]
DESCRIPTION=make big sky flooder glow Nürburg
MESHES=Contrails.002
KEY_0=ksEmissive
VALUE_0=255,120,40,0.1
VALUE_0_OFF=ORIGINAL
CONDITION=NIGHT_SMOOTH



Thanks @fughettaboutit! Yes, not exactly what I was after but it'll certainly be ok if I keep the triangle count really low. Thanks for the info!



The thing is, it wont. Still rendered even if transparent.



@Johnr777 Yes not ideal, but it'll probably do if it's just one or two low poly objects. Just had an idea though. Is it possible to adjust the LOD level of a mesh with conditions? If so, I could use the conditions to set the LOD distances to something very very high, to achieve the same effect? Perhaps?



mh maybe, you can test it

[SHADER_REPLACEMENT_0]
MESHES = gr_?KSLAYER? ; mesh-filter
;;; or - MATERIALS=water ; material filter
LOD_IN = 0 ; set LOD values
LOD_OUT = 600 ; set LOD values
CONDITION=NIGHT_SMOOTH

for shader values this works, but idk about object-settings
shader values you have VALUE and VALUE_OFF
this is not there for objects
so seems not to be the way



I'll test it and report back! Thank you!



Unfortunately theres only so much that can be bind with a condition tag. Otherwise we'd have no problem with wet surfaces, etc
