QUESTION Can I edit one part of an engine sound?

Discussion in 'Sounds' started by Ep1c, Feb 6, 2018.

  1. Ep1c

    Ep1c New Member

    Joined:
    Aug 29, 2017
    Likes Received:
    4
    Location:
    England is my city
    Basically, I hate the Huracan Performante exterior sound and would like to edit it. Is it possible to use all the stock sounds apart from the exterior and how would I deal with that, since they are in a .BANK file and not an fsb file?

  2. luchian

    luchian Administrator ACM Racing Team ACM Club Driver

    Joined:
    Jun 3, 2014
    Likes Received:
    674
    First, you should note that editing official content is not really allowed. If you only do it for your own use, then nobody can actually check you of course.

    On how to do it ?
    I think your only hope is @Just Kauser :D. Hopefully he will see this..

  3. Just Kauser

    Just Kauser Active Member

    Joined:
    May 21, 2017
    Likes Received:
    52
    Location:
    Chemnitz, Saxony, Germany, next to the Sachsenring
    I know you hate my hacking stuff, but it's for a good thing! ;)


    Ok, I do not like supercars, so I will not bother making the soundbank myself.

    But I'll show you how to do it.

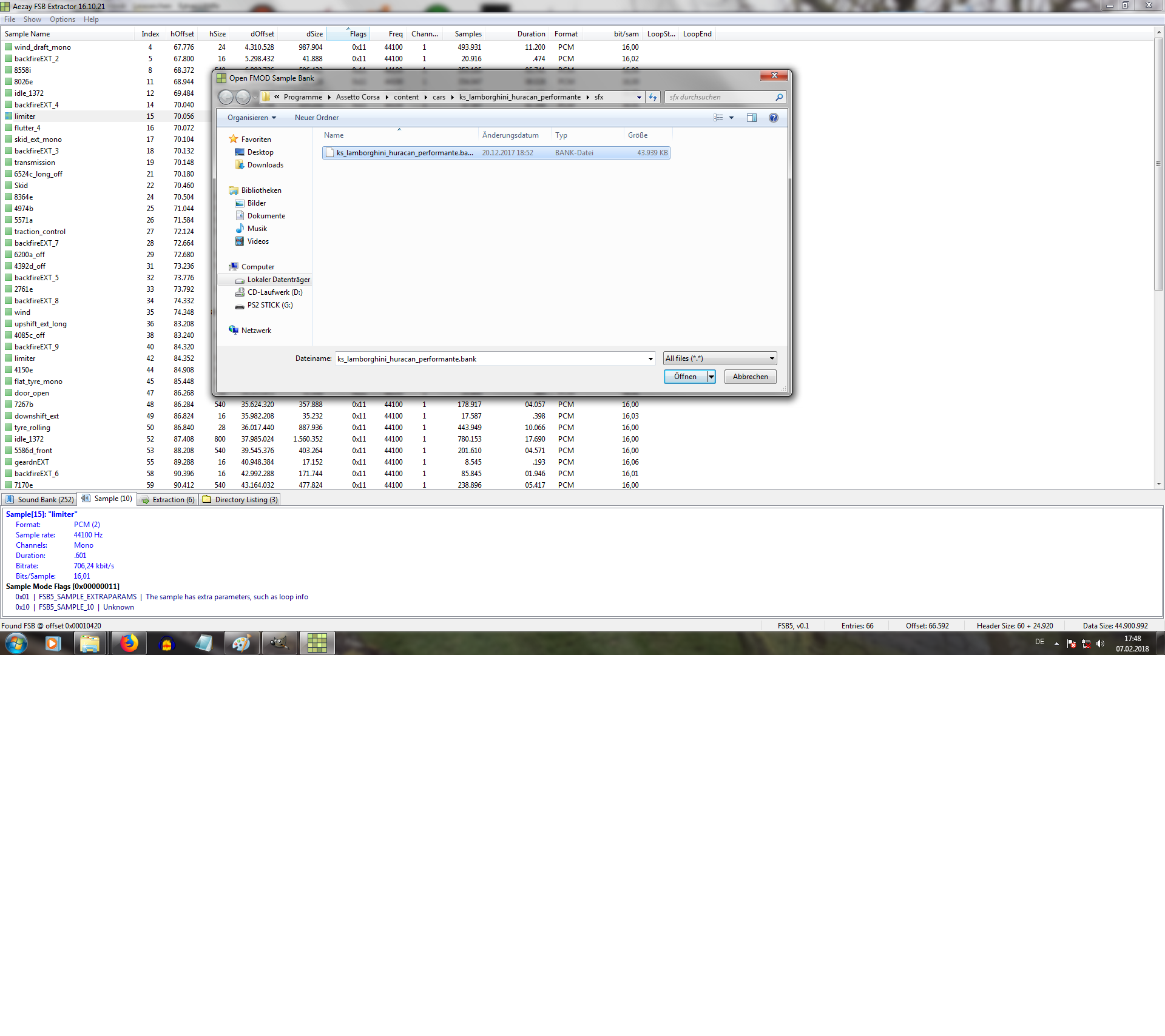

    First you need this here:
    FsbExtractor.rar

    Now you open the bank.

    Ignore the error message and scan for offset (F8).

    Now you can extract all engine sounds with CTRL+A , the right click and "extract to folder".

    Unfortunately, I do not know how to break down the letters that characterize each engine noise, which is exhaust noise, air filter noise, valve train noise, etc.

    Good Luck and best regards,
    Just


    Attached Files:

    Ep1c likes this.
  4. Ep1c

    Ep1c New Member

    Joined:
    Aug 29, 2017
    Likes Received:
    4
    Location:
    England is my city
    Thanks, this looks really helpful. Any idea what the letter after the rpm stands for? e.g. g (???) or e (External?)

  5. Just Kauser

    Just Kauser Active Member

    Joined:
    May 21, 2017
    Likes Received:
    52
    Location:
    Chemnitz, Saxony, Germany, next to the Sachsenring
    if I remember correctly, a stood for external on the AE86

    Ep1c likes this.
  6. Just Kauser

    Just Kauser Active Member

    Joined:
    May 21, 2017
    Likes Received:
    52
    Location:
    Chemnitz, Saxony, Germany, next to the Sachsenring
    AFK for today, sorry.

    Ep1c likes this.
  7. Ep1c

    Ep1c New Member

    Joined:
    Aug 29, 2017
    Likes Received:
    4
    Location:
    England is my city
    Hmm, there seems to be no internal backfire but instead it is named coast, which sounds right. (It’s the same as the backfire from the quadrifoglio). I noticed that coast on the tatuus goes in the internal engine bit and not backfire so do I put it in engine int or backfire int?

  8. Just Kauser

    Just Kauser Active Member

    Joined:
    May 21, 2017
    Likes Received:
    52
    Location:
    Chemnitz, Saxony, Germany, next to the Sachsenring
    In Backfire_int and Backfire_Ext as Multi Sound. You can use a 3-Way-EQ for a realistic internal Backfire-Sound and change the Mastervolume.

  9. Just Kauser

    Just Kauser Active Member

    Joined:
    May 21, 2017
    Likes Received:
    52
    Location:
    Chemnitz, Saxony, Germany, next to the Sachsenring
    Or you copy the the both Events from the example sound project.

  10. Ep1c

    Ep1c New Member

    Joined:
    Aug 29, 2017
    Likes Received:
    4
    Location:
    England is my city
  11. Just Kauser

    Just Kauser Active Member

    Joined:
    May 21, 2017
    Likes Received:
    52
    Location:
    Chemnitz, Saxony, Germany, next to the Sachsenring
    No, i use Audacity for analyzing the rpm, using equalizer and creating Prologic Sound myself, this is a working live stream from a famous german AC Sound Modder named Fonsecker. Maybe i post in the next 2 weeks the AE86 fmod project here and show how i am working.

    Ep1c likes this.
  12. Just Kauser

    Just Kauser Active Member

    Joined:
    May 21, 2017
    Likes Received:
    52
    Location:
    Chemnitz, Saxony, Germany, next to the Sachsenring
    Thanks for feedback.

    Ep1c likes this.
  13. Ep1c

    Ep1c New Member

    Joined:
    Aug 29, 2017
    Likes Received:
    4
    Location:
    England is my city
    How did you learn what to do for the soundmod? I've noticed that I don't really know what I'm doing or why I'm doing it.

  14. Just Kauser

    Just Kauser Active Member

    Joined:
    May 21, 2017
    Likes Received:
    52
    Location:
    Chemnitz, Saxony, Germany, next to the Sachsenring
    I read the Modding Manual and i'm creative and sometimes
    above average intelligent. However, my brain is also on low flame most of the time.
    And I invest time in stuff that interest me.
    That's all.

    Ep1c likes this.
  15. Ep1c

    Ep1c New Member

    Joined:
    Aug 29, 2017
    Likes Received:
    4
    Location:
    England is my city
    Hmm, remaking the interior sound is going alright, but I can't find a track for the load. https://gyazo.com/4fdd447b242d8cbdaf5ce801e76a2eb5

    Lengthening 4085g up to the redline just distorts the sound.

  16. Just Kauser

    Just Kauser Active Member

    Joined:
    May 21, 2017
    Likes Received:
    52
    Location:
    Chemnitz, Saxony, Germany, next to the Sachsenring
    Maybe they are just uing EQ and other SFX for that. You can record the engine sound directly from the game when you set Inertia in the engine.ini extremly high, and changes the POWER.LUT so that it speeds up quickly to the speed range that you want to record and there remains almost constant, so before the high speed at the speed almost zero. The Coast Torque as low as possible. Then you always set mixer all values except the engine noise to zero and record the noise at neutral gear at full throttle. It's just an idea of mine, I have never tried it.

    Last edited: Feb 10, 2018
    Ep1c likes this.
  17. Ep1c

    Ep1c New Member

    Joined:
    Aug 29, 2017
    Likes Received:
    4
    Location:
    England is my city
    How loud should I be aiming for the interior and exterior volume to be?

  18. Just Kauser

    Just Kauser Active Member

    Joined:
    May 21, 2017
    Likes Received:
    52
    Location:
    Chemnitz, Saxony, Germany, next to the Sachsenring
    Since there are two options, once as loud as possible without the sound overdriven, so in the master mixer does not come above 0 db, the exhaust a little quieter, because he is otherwise too dominant in Reverb effects. The other option is you record the sound of the original and compare its volume with yours. Is probably more realistic, if you use your mod for an AI opponent. I prefer option 1.

  19. Ep1c

    Ep1c New Member

    Joined:
    Aug 29, 2017
    Likes Received:
    4
    Location:
    England is my city
    I've exported the sound to test the interior sound as well as exporting the GUIDs but now I have no sound for the car. What have I done wrong?

  20. Just Kauser

    Just Kauser Active Member

    Joined:
    May 21, 2017
    Likes Received:
    52
    Location:
    Chemnitz, Saxony, Germany, next to the Sachsenring
    Okay, I had the same problem even when I built my first soundmod.

    Here is the short version of what you have to consider everything when exporting the BANK.

    1. Export from FMOD bank and guid.

    2. Edit the GUID like this:

    {431fb779-148d-4b16-aaab-52eeb2c65640} event:/cars/yourname/backfire_ext
    {b3bfdbea-1234-4187-a7ae-7d4cdd7733d9} event:/cars/yourname/backfire_int
    {806844fc-8742-49c4-a2af-b50000eb2dc1} event:/cars/yourname/bodywork
    {778ebd3c-e5df-47f9-a7b4-6f90b0ee4628} event:/cars/yourname/door
    {da730ab5-fac8-4053-bcbc-e5e9aad62318} event:/cars/yourname/engine_ext
    {b0b4d0ad-e7f6-43d2-bb85-ce578a596b96} event:/cars/yourname/engine_int
    {79068e60-2e68-4071-9b16-109ebe9b3393} event:/cars/yourname/gear_ext
    {0ee188c3-98f4-4572-bde3-6cadcc14d51b} event:/cars/yourname/gear_grind
    {1d030c53-1d77-44e8-8586-b6fe5a5dc5dd} event:/cars/yourname/gear_int
    {b6820ea4-617d-48c1-8cd3-2e4ca8cbea7c} event:/cars/yourname/horn
    {08efac47-cc16-4a10-b73e-fed5a2bf9320} event:/cars/yourname/limiter
    {38362039-2075-4eb9-91e5-6200f9f1d4e3} event:/cars/yourname/skid_ext
    {ea46972e-8594-4a54-976f-01688943c0d4} event:/cars/yourname/skid_int
    {ea3b8f58-f2d6-4d02-bf92-85461b3d3888} event:/cars/yourname/tractioncontrol_ext
    {fcff67ea-f037-4a55-b5d4-a4dc6e337dbb} event:/cars/yourname/tractioncontrol_int
    {089793a6-e7a3-4262-806d-4ff0281406f8} event:/cars/yourname/transmission
    {c76e2923-cf98-425c-9c4e-22a20ac0891f} event:/cars/yourname/turbo
    {cfb442dc-daca-4705-bec1-caf7dd4bfabf} event:/cars/yourname/wheel
    {19c17954-1109-4225-b81e-fff635faa85a} event:/cars/yourname/wind
    {08f6ba78-f576-4f9f-a232-47657d5fec19} bus:/
    {9e2b6406-bcd0-4f61-92a5-b3e5d68d4b97} bus:/grp_backfire_ext
    {477be05a-5cbd-468a-b1d8-637af58bba28} bus:/grp_backfire_int
    {b3c3876b-83aa-45d3-b43a-125adcb9a753} bus:/grp_bodywork
    {f915798f-0669-4379-b31a-6ec19e8af0ea} bus:/grp_collisions
    {559b9037-dd6c-4120-9373-477d07717f9e} bus:/grp_door
    {5206e42b-ae8f-49f6-b059-d613b2947b49} bus:/grp_engine_ext
    {db9dca15-49f5-4c00-93ca-e76ccaf1160e} bus:/grp_engine_int
    {c9a0a35d-dcc0-4002-ae01-5487466de9f8} bus:/grp_gear_ext
    {f09ce222-1e68-42a9-9e16-fcb45004fcb3} bus:/grp_gear_int
    {c89669bc-901a-4b52-91b7-46a85014ee0d} bus:/grp_horn
    {37b936f8-165c-484d-a2f5-d06ae99a0822} bus:/grp_limiter
    {81c0ee3a-2fd8-4e25-b775-eb7845ca644f} bus:/grp_skid_ext
    {37bf169d-f171-4af4-a924-d65a1f998264} bus:/grp_skid_int
    {ce5395d1-28c9-4dcc-90bd-051528b365d3} bus:/grp_surfaces
    {9d0c46e7-d738-480e-8d5f-b5fb315a701a} bus:/grp_tractioncontrol_ext
    {dcf6df4b-a019-4819-97e4-d1b3ed67e4b1} bus:/grp_tractioncontrol_int
    {dba03e3d-9c12-43da-a5b9-9c79b7673c7f} bus:/grp_transmission
    {35927822-c7cf-43ab-b6a2-447a4386450e} bus:/grp_turbo
    {b7b6c398-22ee-465a-a6df-42861188e195} bus:/grp_wheel_closed
    {208daf59-324a-4a13-994e-d284dac196ce} bus:/grp_wheel_open
    {bec567db-3040-4ca9-82f7-75f072ab68c8} bus:/grp_wind_closed
    {1c1f5d35-07d5-4d6f-b916-cd0eb4adfd60} bus:/grp_wind_open
    {94f04703-a92c-49cf-a097-734f3e79ec08} vca:/vca_engine_ext
    {ff157bb9-ecc1-49da-ad82-5e42fecb2ac9} vca:/vca_engine_int
    {f8b9d9e5-bd29-4a82-a1a0-66e8b9059ccb} vca:/vca_skid
    {45401f11-f5bd-429f-afb6-710deda49e32} vca:/vca_surfaces
    {a61eba16-8f14-4a39-8ffd-c573cfdc0dbd} vca:/vca_transmission
    {185673e8-d3ed-434c-acd4-61c819bb209c} vca:/vca_wind
    {4b92e6ce-e701-48dd-8dc2-cb371c15dbfe} bank:/yourname

    Replace "yourname" with the name of the folder containing all the data, for example "ks_lamborghini_huracan_performante", and name the bank as well. Delete all lines of text in the GUID that do not match the above.

    If it still has no sound, that was the case with me at the beginning, check if your FMOD version is compatible with your AC version. Is under "Assetto Corsa \ sdk \ audio / AC Audio Pipeline 1.X" at "The FMod Studio version used is:".
