Why does my track have these weird shadows and mesh textures on it in and how to fix?

Discussion in 'Tracks' started by glurbs, Jul 1, 2024.

  1. glurbs

    glurbs New Member

    Joined:
    Jun 30, 2024
    Messages:
    4
    Likes Received:
    1

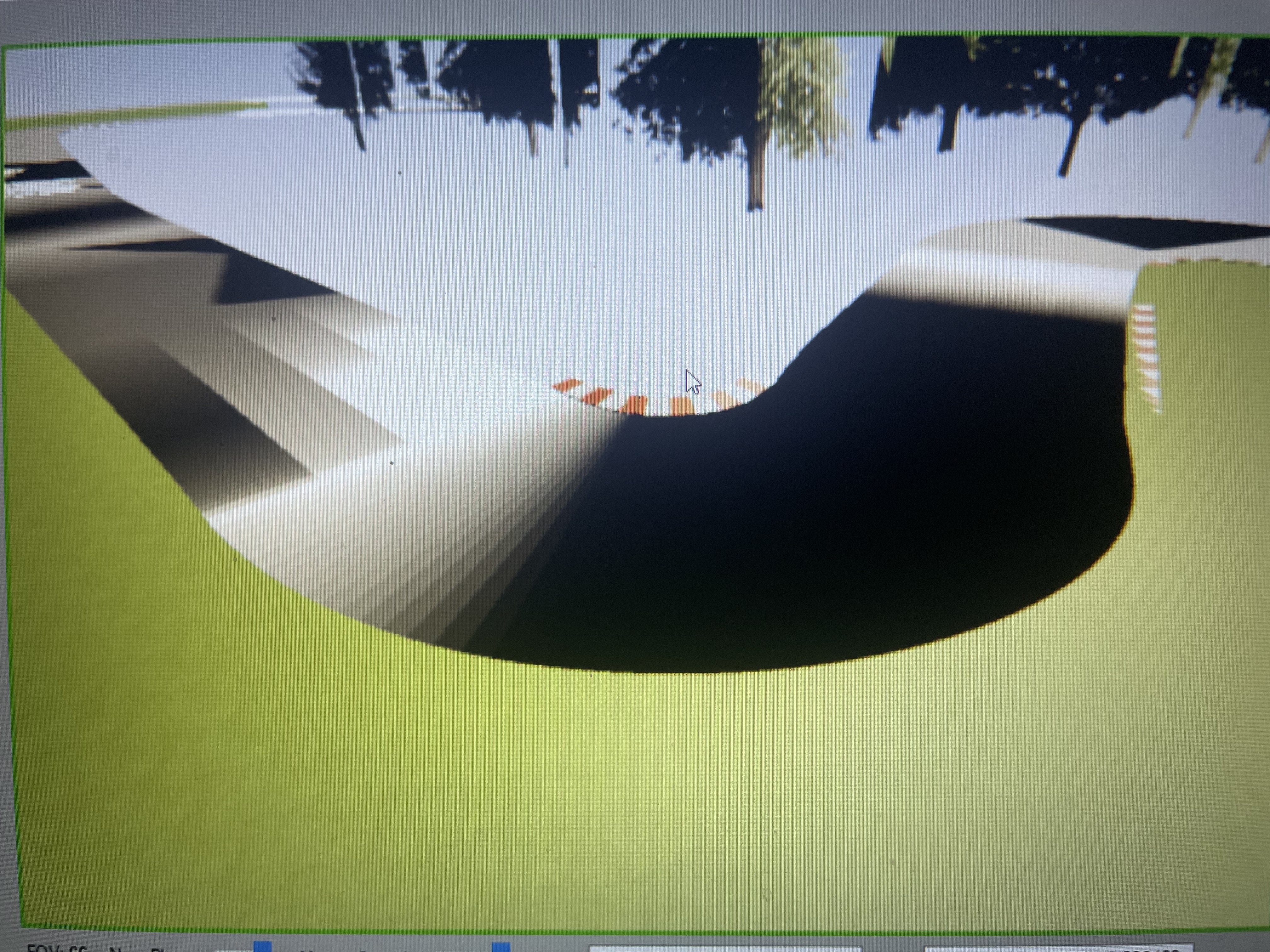

    I’m making my first track mod for AC in blender based on a gokart track and these shadows show up when I made the track not flat. I tried changing the values in KSeditor but nothing worked. Other than changing elevation and angle of the road I followed the steps of ROUTE EIGHT MEDIAS video.


    Attached Files:

  2. fughettaboutit

    fughettaboutit aka leBluem

    Joined:
    Jul 21, 2014
    Messages:
    1,162
    Likes Received:
    390
    Face normals!

    recalc them in blender, edit mode, with shift+n (alt+n for menu)

    reset xform in max

    Last edited: Jul 1, 2024
  3. glurbs

    glurbs New Member

    Joined:
    Jun 30, 2024
    Messages:
    4
    Likes Received:
    1
    I have array and plane around a curve so do I do that before or after converting to a mesh?

  4. fughettaboutit

    fughettaboutit aka leBluem

    Joined:
    Jul 21, 2014
    Messages:
    1,162
    Likes Received:
    390
    try it just like that, if the modifiers still make it wrong, then apply modifiers, then do that afterwards

    btw, instead of Shift+N, what i do most of the time:
    Alt+N -> Set from faces
    Alt+N -> Average -> Face Area

  5. Rob Pawn

    Rob Pawn Member

    Joined:
    Sep 24, 2022
    Messages:
    107
    Likes Received:
    19
    Location:
    Germany
    In Object Mode select the meshes: <ctrl> + <a> = Apply = click "Scale and Rotation"

    Edit: First apply the Array modifier

  6. glurbs

    glurbs New Member

    Joined:
    Jun 30, 2024
    Messages:
    4
    Likes Received:
    1
    This fixed it completely!! thank you

    Rob Pawn likes this.
  7. glurbs

    glurbs New Member

    Joined:
    Jun 30, 2024
    Messages:
    4
    Likes Received:
    1
    Thank you for your replies they helped alot
