Hi! I'm trying to add pits to an existing track, and I'm getting the error "CANNOT HAVE 0 CARS IN RACE.INI". Somewhere along the conversions, I'm messing something up and I can't figure it out. I tried searching for a solution, but I'm really really new at the whole 3d software, and I think I'm making a silly mistake somewhere. I tried straight up converting a track to .fbx, and then back to .kn5, without changing anything, and it STILL doesn't work, even if I don't actually modify anything. Here are the exact steps I'm doing: 1. I copy the existing track.kn5 to a working folder 2. Convert the track.kn5 file to a FBX file using "kn5conv.exe". 3. Convert the track.fbx file to a FBX 2012 binary file using Autodesk's FBX Converter. 4. Load the track in blender, everything appears properly, I can see the pit boxes and the starting grids so far everything seems to work 5. I don't change anything, but immediately export to track.fbx 6. Load the track.fbx in Assetto Corsa SDK, I can still see the pit boxes and start grids, named AC_PIT_0 and AC_START_0, all the way to 29. 7. Export to track.kn5 8. Load into a practice session, "CANNOT HAVE 0 CARS IN RACE.INI". I did try to change the ui.json to have 20 pits and it still gives me the same error. I also tried to rename the ai folder to ai.old, still the same issue. There is no models.ini file. The track works fine before I try to convert it, somewhere along the line I'm messing something up that breaks the track, any help would be appreciated.
kn5conv.exe makes an ASCII file, blender only supports binary, so I use the Autodesk software to convert it to FBX2012 binary. I kept the exact same name as the original kn5. I'm going to try to record a video of the whole process, I suspect it's a simple checkbox that I'm missing or something silly.
Ok so I recorded my entire process, keep in mind, I've been using blender/AC SDK for an entirety of ~24 hours, I have no idea what I'm doing. I also noticed that in log.txt I'm getting a lot of errors like this: ERROR: SURFACE NOT FOUND FOR OBJECT:1OFFTRACK ERROR: SURFACE NOT FOUND FOR OBJECT:1OFFTRACK ERROR: SURFACE NOT FOUND FOR OBJECT:1OFFTRACK ERROR: SURFACE NOT FOUND FOR OBJECT:1CARPET_SUB8 ERROR: SURFACE NOT FOUND FOR OBJECT:1CARPET_SUB8 ERROR: SURFACE NOT FOUND FOR OBJECT:1CARPET_SUB8 ERROR: SURFACE NOT FOUND FOR OBJECT:1PITS_SUB5 ERROR: SURFACE NOT FOUND FOR OBJECT:1PITS_SUB5 ERROR: SURFACE NOT FOUND FOR OBJECT:1PITS_SUB5 ERROR: SURFACE NOT FOUND FOR OBJECT:1ASPHALT_10_SUB0 ERROR: SURFACE NOT FOUND FOR OBJECT:1ASPHALT_10_SUB0 ERROR: SURFACE NOT FOUND FOR OBJECT:1ASPHALT_10_SUB0 Any help would be much appreciated!
data\surfaces.ini, it has sections like that (you probably didnt change!?) ? [SURFACE_0] KEY=OFFTRACK ... [SURFACE_1] KEY=ASPHALT ... [SURFACE_2] KEY=CARPET ...
This is the content of my surfaces.ini: Code: [SURFACE_0] KEY=ROAD FRICTION=0.98 DAMPING=0 WAV= WAV_PITCH=0 FF_EFFECT=NULL DIRT_ADDITIVE=0 IS_VALID_TRACK=1 BLACK_FLAG_TIME=0 SIN_HEIGHT=0 SIN_LENGTH=0 IS_PITLANE=0 VIBRATION_GAIN=0.0 VIBRATION_LENGTH=0.0 [SURFACE_1] KEY=GRASS FRICTION=0.6 DAMPING=0 WAV=grass.wav WAV_PITCH=0 FF_EFFECT=NULL DIRT_ADDITIVE=0 IS_VALID_TRACK=0 BLACK_FLAG_TIME=10 SIN_HEIGHT=0.03 SIN_LENGTH=0.5 IS_PITLANE=0 VIBRATION_GAIN=0.2 VIBRATION_LENGTH=0.6 [SURFACE_2] KEY=PITROAD FRICTION=0.98 DAMPING=0 WAV= WAV_PITCH=0 FF_EFFECT=NULL DIRT_ADDITIVE=0 IS_VALID_TRACK=1 BLACK_FLAG_TIME=0 SIN_HEIGHT=0 SIN_LENGTH=0 IS_PITLANE=1 VIBRATION_GAIN=0.0 VIBRATION_LENGTH=0.0 [SURFACE_3] KEY=RUMBLE FRICTION=0.95 DAMPING=0 WAV=kerb.wav WAV_PITCH=1.3 FF_EFFECT=1 DIRT_ADDITIVE=0 BLACK_FLAG_TIME=0 IS_VALID_TRACK=0 SIN_HEIGHT=0 SIN_LENGTH=0 IS_PITLANE=0 VIBRATION_GAIN=0.8 VIBRATION_LENGTH=0.7 [SURFACE_4] KEY=GRAVEL FRICTION=0.83 DAMPING=0.15 WAV= WAV_PITCH=0 FF_EFFECT=NULL DIRT_ADDITIVE=1 BLACK_FLAG_TIME=0 IS_VALID_TRACK=0 SIN_HEIGHT=0 SIN_LENGTH=0 IS_PITLANE=0 VIBRATION_GAIN=0 VIBRATION_LENGTH=0 Since I didn't actually change anything, I shouldn't need to change this file, correct? Am I missing something?
I suspect the problem with the spawning lies with the naming. At about 3 minutes into your video, the spawn objects themselves are actually called "AC_PIT_0.001" within each collection. So you need to go back to Blender and rename these one by one, it might be something to do with the Autodesk converter whereby it can't handle the collection and objects being the same name or something similar. Here is a screengrab from my spawn objects in Pinwheel, note that in contrast to your fbx when opened in the editor, both names are the same (i.e. AC_PIT_4):
use this in console or as new text script select the objects you need Code: import bpy for ob in bpy.context.selected_objects: if ob.type == 'MESH': ob.name=str(ob.name).replace('.001', '') ob.data.name=ob.name print('done') or use this
That was it! But it looks like it's my blender itself doing that, when I rename the bottom one and remove the .001, the top one (I don't know the proper names for those things) gets replaced with .001... There's probably a setting I need to change somewhere to fix that. When I do rename it, the track loads, but all the cars appear way below the map, I'm guessing due to the .001 still being there.

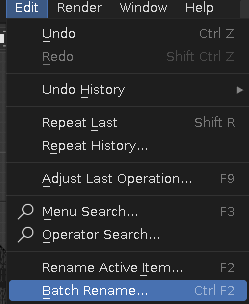

Just use on of the batch methods as @fughettaboutit suggests. As for the appearing below, it's probably due to the cars falling through the track as a mesh probably got renamed too, perhaps 1PITS_SUB5 or one of the ROAD surfaces. Worth just flicking through the 'how to make a track' guide by Luchian I would say to give yourself a base understanding first before tackling this!
