Scale of the track

Discussion in 'Tracks' started by Andre2405, Apr 2, 2018.

  1. Andre2405

    Andre2405 New Member

    Joined:
    Apr 2, 2018
    Messages:
    4
    Likes Received:
    1
    Hi i need help :)

    i have a export problem.

    I use Blender 2.79!

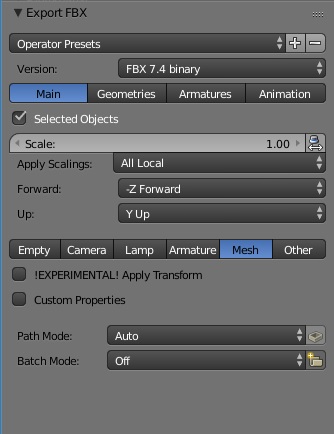

    When i try to export the track with "FBX 7.4 binary", the scale is completely wrong (AC Editor and in the game). The track ist too big. It is unable to drive, i am high over the track.

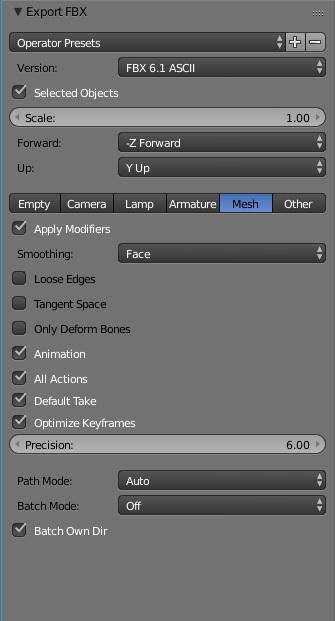

    With the "FBX 6.1 ASCII" export settings, the scale ist ok. But the textures are in the false position.

    The scale of ervery object is 1.0 (x,y,z)

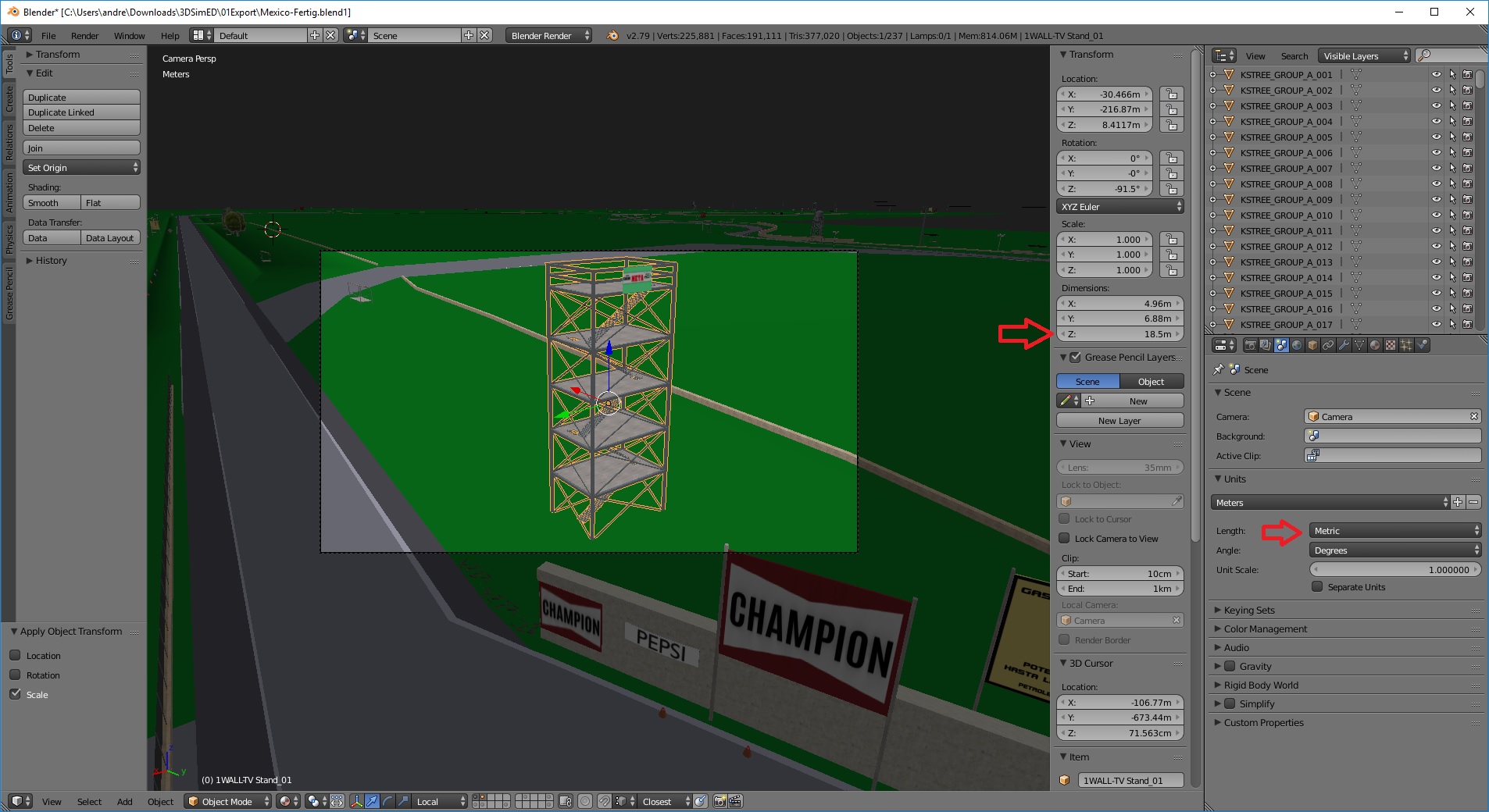

    World units in Blender, Metric, unit scale 1.0.


    Attached Files:

  2. luchian

    luchian Administrator Staff Member

    Joined:
    Jun 3, 2014
    Messages:
    1,929
    Likes Received:
    702

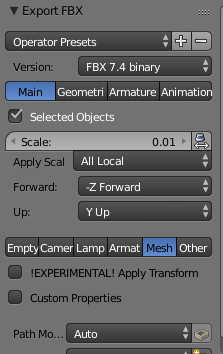

    Assuming you have already set the units to meters in your scene AND you have applied all scale modifications (CTRL+A>>Apply scale), make sure this button is unpressed:

    [​IMG]

    Andre2405 likes this.
  3. Andre2405

    Andre2405 New Member

    Joined:
    Apr 2, 2018
    Messages:
    4
    Likes Received:
    1
    This was in the "Build your FIRST track - BASIC GUIDE"! I know it.

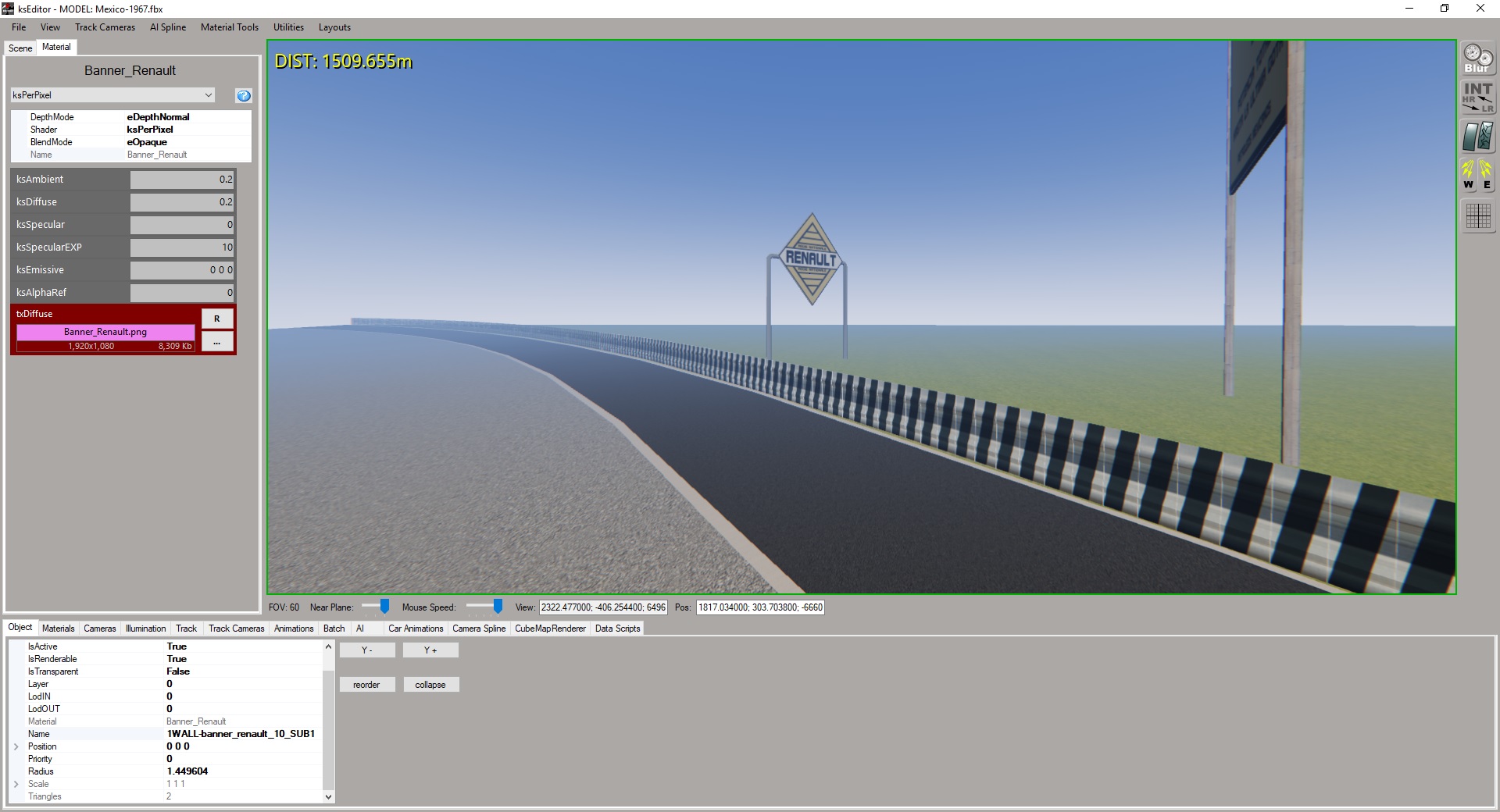

    The export was with the unpressed button. The AC Editor indicate the distance.
    From my position to the renault sign, 1509 m :(

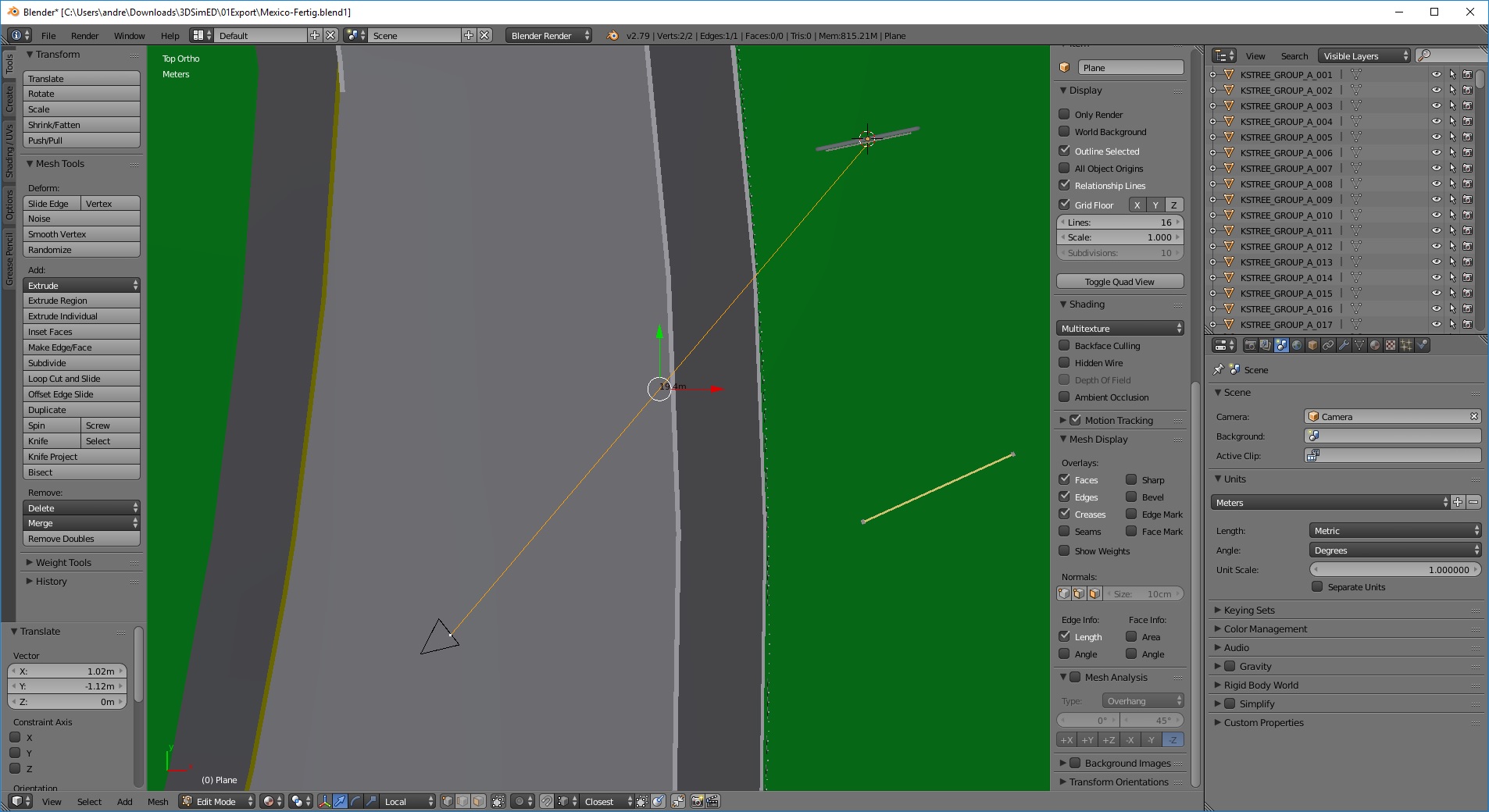

    In Blender is the distance 19,4 m


    Attached Files:

  4. Andre2405

    Andre2405 New Member

    Joined:
    Apr 2, 2018
    Messages:
    4
    Likes Received:
    1
    I find the solution! :)

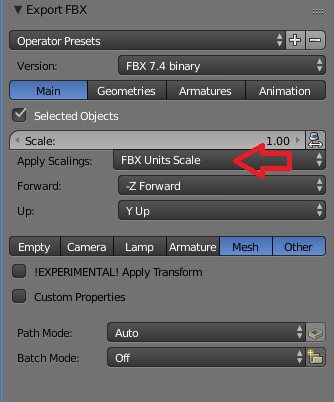

    Apply Scalings: fron "All Local" to "FBX Units Scale"



    Attached Files:

    luchian likes this.
  5. LilSKi

    LilSKi Active Member

    Joined:
    Apr 6, 2015
    Messages:
    269
    Likes Received:
    196
    Ever since 2.79 this got a little messed up. These settings can also work.


    luchian and Andre2405 like this.
  6. LilSKi

    LilSKi Active Member

    Joined:
    Apr 6, 2015
    Messages:
    269
    Likes Received:
    196
    Is this scratch made? If so you need much higher resolution corners.

    Andre2405 likes this.
  7. Andre2405

    Andre2405 New Member

    Joined:
    Apr 2, 2018
    Messages:
    4
    Likes Received:
    1
    I know... The corner resolution will be better in the next version ;)
