Hi all, Please to be here! I recently started messing around with tracks in Blender and was just wondering for those tracks with day - night, how do I go about setting for these objects to react with the day - night transitions when I export the kn5? Do I set them in Blender or ksEditor? All it does now is the objects will become super bright and white at night time, eg. buildings etc... Any one knows why? Thanks! P.S. I'm using existing mods to mess around in Blender and just want to use them for learning/personal purposes, so rest assured I won't modify the files and share them publicly.
lights are entirely made by CustomShadersPatch with a"ext_config.ini". AC does not know about more than the car lights. There is no way to set lights up in blender or ksEditor.
https://github.com/ac-custom-shaders-patch/acc-extension-config/wiki/Tracks-–-General-options https://github.com/ac-custom-shaders-patch/acc-extension-config/blob/master/_doc_config_tracks.ini

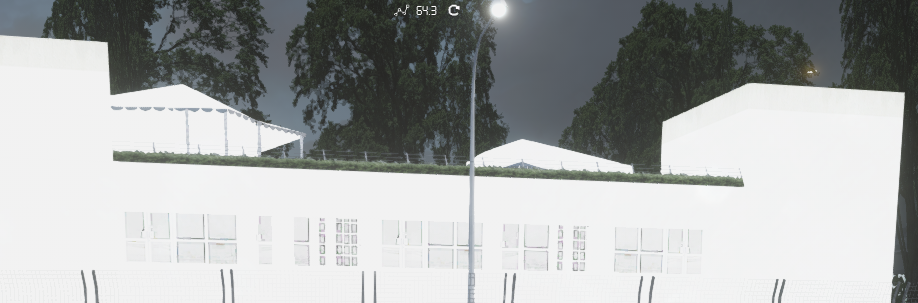

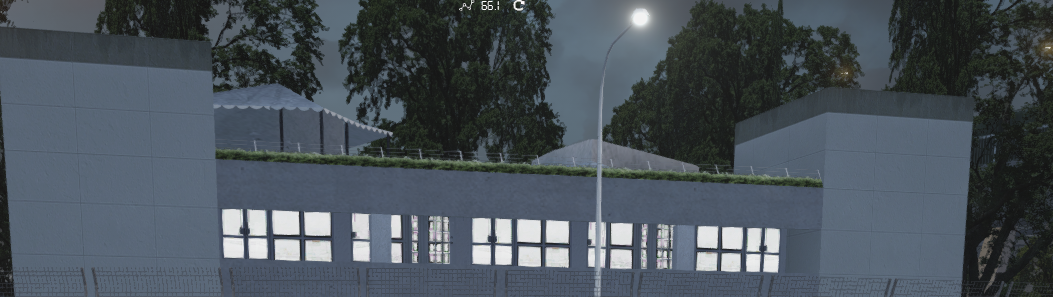

Wow, thanks for these useful resources! These will definitely come in useful in time to come. However, now I still have the problem of the objects showing like this at night - see attached pictures. 1st image is showing how it's supposed to be. 2nd image is the one I exported after messing around in Blender (with other objects, not this building in particular, and all buildings are like this when going into night cycle) Yes project is from another known track, not a scratch build, BUT I'm doing this solely for learning purposes and not publishing anywhere. What am I missing still? Here is the code in ext_config if it helps to understand the problem: [MATERIAL_ADJUSTMENT_52] ACTIVE = 1 DESCRIPTION = building window 2 VISIBILITY_LEVEL = 1 MATERIALS = building_a KEY_0 = ksEmissive VALUE_0 = 255, 248, 232, 0.02 VALUE_0_OFF = 0, 0, 0 KEY_1 = ksAlphaRef VALUE_1 = -193 VALUE_1_OFF = ORIGINAL KEY_2 = ksDiffuse VALUE_2 = 0 VALUE_2_OFF = ORIGINAL CONDITION = NIGHT_WINDOW Thanks for the help!

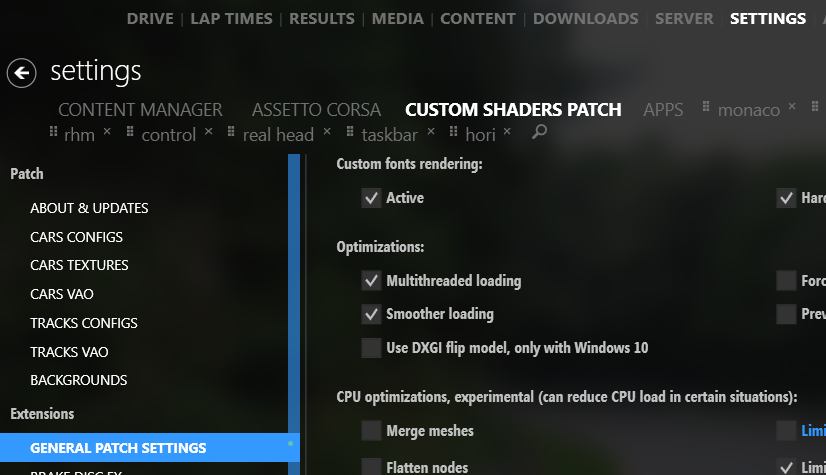

this might actually be a long lived bug, do you have "Merge Meshes" on here? Turn off! to prevent this, uses two different materials...
mh, you also have a [LIGHT_SERIES_...] configured for the street lights? it maybe too bright, show me this part of config
[MATERIAL_ADJUSTMENT_0] ACTIVE = 1 DESCRIPTION = main track lights VISIBILITY_LEVEL = 0 MATERIALS = street_lamp_01_bright, street_sub_lampglass_02 KEY_0 = ksEmissive VALUE_0 = 255, 248, 232, 0.5 VALUE_0_OFF = 0, 0, 0 CONDITION = NIGHT_SMOOTH [LIGHT_SERIES_0] ACTIVE = 1 DESCRIPTION = main track lights spots VISIBILITY_LEVEL = 0 MATERIALS = street_lamp_01_bright COLOR = 255, 248, 232, 0.032 OFFSET = 0,0,0 CLUSTER_THRESHOLD = 32 SPOT = 225 RANGE = 100 FADE_AT = 450 FADE_SMOOTH = 100 SPOT_SHARPNESS = 0.1 DIRECTION = NORMAL RANGE_GRADIENT_OFFSET = 0.5 DIFFUSE_CONCENTRATION = 0.88 CONDITION = NIGHT_SMOOTH This is the main lights config, funny thing is both untouched kn5 and my 'modified' kn5 has the same brightness in terms of track lightings. It's only the track side buildings and objects that become like picture 2 in my previous post.
RANGE = 100 is too high i guess, try someting like 30 or 25 also make the ksDiffuse value in ksEditor for that buildings use somethin like 0.3 or 0.2
better try this: [MATERIAL_ADJUSTMENT_52] ACTIVE = 1 DESCRIPTION = building window 2 VISIBILITY_LEVEL = 1 MATERIALS = building_a KEY_0 = ksEmissive VALUE_0 = 255, 248, 232, 0.02 VALUE_0_OFF = 0, 0, 0 CONDITION = NIGHT_WINDOW no need for other stuff for windows, but use it for things that should glow very much like your street lights: (ksAlphaRef=-193 makes glow a bit nicer) [MATERIAL_ADJUSTMENT_0] ACTIVE = 1 DESCRIPTION = main track lights VISIBILITY_LEVEL = 0 MATERIALS = street_lamp_01_bright, street_sub_lampglass_02 KEY_0 = ksEmissive VALUE_0 = 255, 248, 232, 0.5 VALUE_0_OFF = 0, 0, 0 KEY_1 = ksAlphaRef VALUE_1 = -193 VALUE_1_OFF = ORIGINAL CONDITION = NIGHT_SMOOTH
So is it safe to say the issue of how track side objects react to day night cycle (like on pic 2 where it doesn’t go dark like a normal building would) is all dependent on the config.ini instead? ksEditor and Blender don’t affect this parameter?
what you set in ksEditor for maybe ksAmbient and ksDiffuse will be used in game off course to be able to set emissive dynamically, we just manipulate ksEmissive in config, no need to change others, if you set normal values with ksEditor, ksAmbient=0.3 - ksDiffuse=0.3 - ksSpecular=0 is like a standard you can apply to pretty much anything by default note: if you dont know, use this after you did successfully exported a track, it will save all the shader settings in a "...fbx.ini" file (the persistence file) and then load all your changes next time you would load the same ...fbx (you can also edit this file "...fbx.ini", its only text, replacement-function of your editor helps a lot)
Very useful tips mate thanks! And boy I've found the issue: All the parameters regarding config of track lights, buildings lights aside, the main issue was somehow the light mesh for the building windows are ON THE OUTSIDE instead of EMITTING FROM THE INSIDE. I just found this out after a bunch of troubleshooting via the config. Now for the main point, what we see in pic 2 is the lights for the building being situated ON THE OUTSIDE. Is there anyway you'll possibly know how to make them inside the building? Could it be a wrong process in exporting the existing kn5 to fix? I’m using a kn5converter file that launches command prompt and extracts it. Once again I thank you so much for your free help and patience for bearing with me. I'm indeed humbled and learning new things each day.
